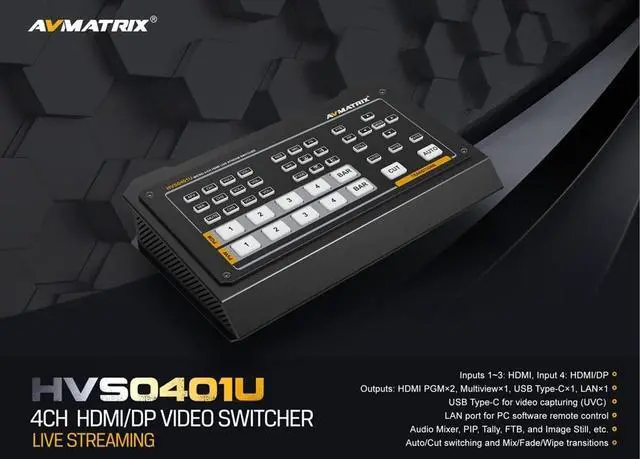

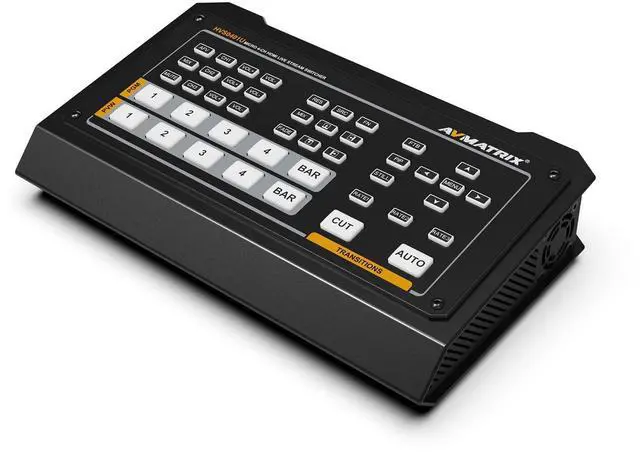

AVMATRIX HVS0401U Video Switcher Mixer 4 Channel HDMI/DP Input Type-C Capture Streaming PC Control Realtime Production

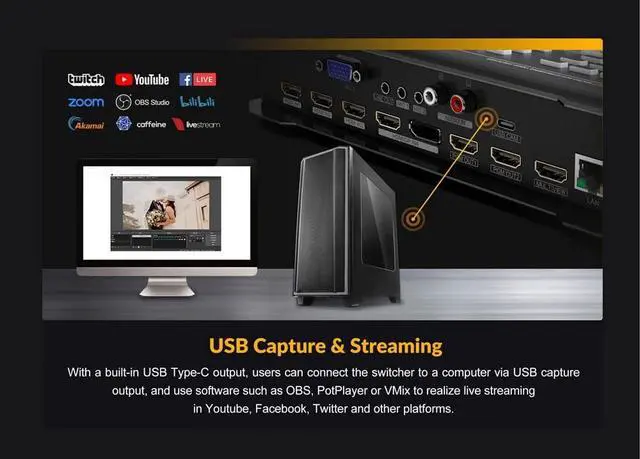

- USB Capture & Streaming. With a built-in USB Type-C output, users can connect the switcher to a computer via USB capture output, and use software such as OBS, PotPlayer or VMix to realize live streaming.

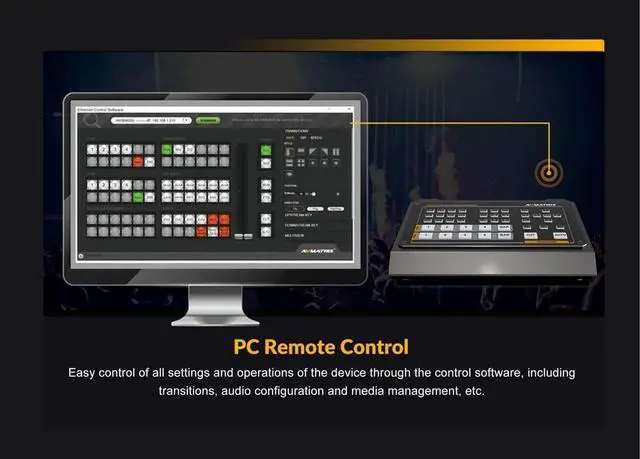

- PC Remote Control. Easy control of all settings and operations of the device through the control software, including transitions, audio configuration and media management, etc.

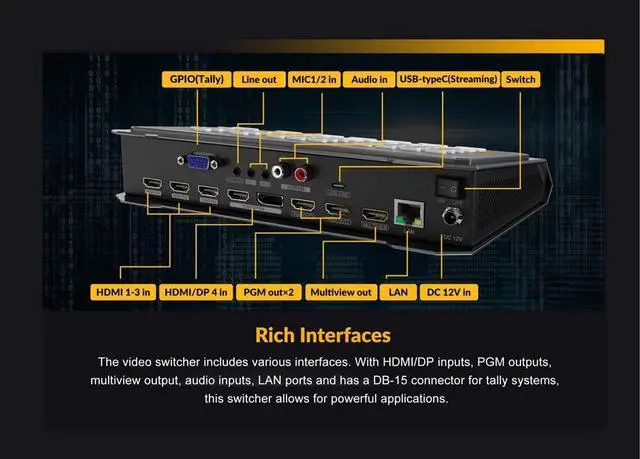

- Rich Interfaces. The video switcher includes various interfaces. With HDMI/DP inputs, PGM outputs, multiview output, audio inputs, LAN ports and has a DB-15 connector for tally systems, this switcher allows for powerful applications.
- Extensive Applications. The 4 channel video switcher can be widely used in various field events, such as live sports, virtual studio, education, church, internet, concert, and so on.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Inputs 1~3: HDMI,
Input 4:
HDMI/DPOutputs: HDMI PGMx2, Multiviewxl, USB
Type-Cx1, LANx1USB Type-C for video capturing (UVC) LAN port for PC software remote controlAudio Mixer, PIP, Tally, FTB, and Image Still, etc. Auto/Cut switching and Mix/Fade/Wipe transitionsVideo
In:
IN1-IN3: HDMI type-A x3;
IN4: HDMI type-A/ Display Port xlVideo
Out:
PGM: HDMI type-A x2;
Multiview: HDMI type-A xl
USB Capture: USB type-C xAudio
In: MIC/ Line x2 ( 3.5 mm audio); RCA x2 (stereo audio)
Tally Out: DB-15x1Power
In: DC 12V
IN xlFunctions: Image Still/Transition Speed/ MUTE/ Audio follows Video/
Audio MixeTransition: AUTO/ CUT/ WIPE/ MIX/ FADE/ FTB
Layouts: PIP, MultiviewHDMI In
Format Support: 1080p 60/ 59.94 / 50/ 30/ 29.97 / 25/ 24/ 23.98 / 23.976 1080i 50/ 59.94 /60720p 60/ 59.94 /50/ 30/25/ 24 576i 50, 576p 50, 480p 59.94 / 60, 480i 59.94 / 60PC HDMI/DP
Input Format Support: 2560x1600, 2048x1152, 1920x1080, 1680x1050, 1600x1200, 1600x900, 1400x1050, 1440x900, 1366x768, 1360768, 1280x1024, 1280x960, 1280x800, 1280768, 1280x720, 1280x600, 1152x864, 1024x768, 800x600, 640x480HDMI
PGM Out: 1080p60/50/30/25/24 1080i 60/50HDMI
Multiview Out: 1080p60HDMI
Color Space: RGB/YCbCrUSB
Capture Out: MJPG, Upto1080p60Power: <18W(12V
1.5A )Dimension (LWD): 238.5 x 140.4 x 43.5 mmWeight:
Net: 785g, Gross:
1500gTemperature:
Working: -10C~60C, Storage: -30C~70CAccessories
Standard: Power supply (12V 2A) USB cable(type A-C) xl, Tally connector(DB-15) x1
Input 4:
HDMI/DPOutputs: HDMI PGMx2, Multiviewxl, USB
Type-Cx1, LANx1USB Type-C for video capturing (UVC) LAN port for PC software remote controlAudio Mixer, PIP, Tally, FTB, and Image Still, etc. Auto/Cut switching and Mix/Fade/Wipe transitionsVideo
In:
IN1-IN3: HDMI type-A x3;
IN4: HDMI type-A/ Display Port xlVideo
Out:
PGM: HDMI type-A x2;
Multiview: HDMI type-A xl
USB Capture: USB type-C xAudio
In: MIC/ Line x2 ( 3.5 mm audio); RCA x2 (stereo audio)
Tally Out: DB-15x1Power
In: DC 12V
IN xlFunctions: Image Still/Transition Speed/ MUTE/ Audio follows Video/
Audio MixeTransition: AUTO/ CUT/ WIPE/ MIX/ FADE/ FTB
Layouts: PIP, MultiviewHDMI In
Format Support: 1080p 60/ 59.94 / 50/ 30/ 29.97 / 25/ 24/ 23.98 / 23.976 1080i 50/ 59.94 /60720p 60/ 59.94 /50/ 30/25/ 24 576i 50, 576p 50, 480p 59.94 / 60, 480i 59.94 / 60PC HDMI/DP
Input Format Support: 2560x1600, 2048x1152, 1920x1080, 1680x1050, 1600x1200, 1600x900, 1400x1050, 1440x900, 1366x768, 1360768, 1280x1024, 1280x960, 1280x800, 1280768, 1280x720, 1280x600, 1152x864, 1024x768, 800x600, 640x480HDMI
PGM Out: 1080p60/50/30/25/24 1080i 60/50HDMI
Multiview Out: 1080p60HDMI
Color Space: RGB/YCbCrUSB
Capture Out: MJPG, Upto1080p60Power: <18W(12V
1.5A )Dimension (LWD): 238.5 x 140.4 x 43.5 mmWeight:
Net: 785g, Gross:
1500gTemperature:
Working: -10C~60C, Storage: -30C~70CAccessories
Standard: Power supply (12V 2A) USB cable(type A-C) xl, Tally connector(DB-15) x1
