UHPPOTE Input 110VAC Output 12VDC Metal Power Supply Box with Backup Battery Link for Door Access Control Board

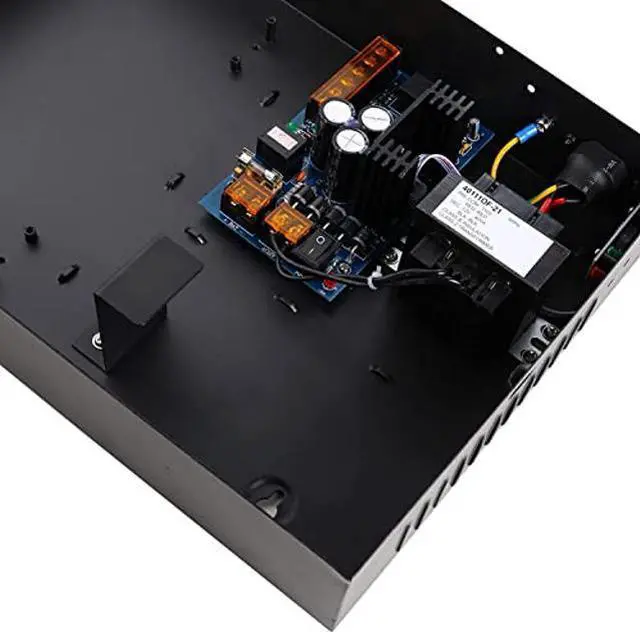

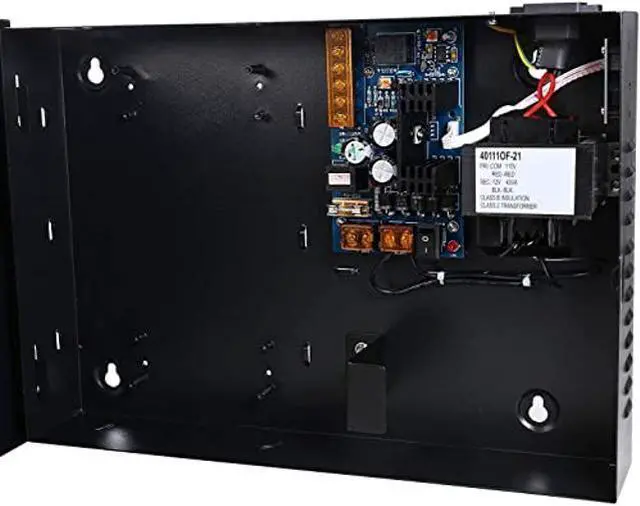

- Power supply input: AC110V; Heave duty metal case with space for access controller
- Built-in reverse surge protection and Short-circuit protection function
- Earth connection point for lightning protection, anti-static anti-surge function implement
- This power supply is suitable for building intercom, various entrances access control, particularly suitable for all kinds of electric locks
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: CR-3396A
Features: Setting NC/NO output, can control different electric locks, reduce the load of access controllerSetting automatic protection function, built-in fuseThe power box cab be spit and buckle wear, suitable for installation where space is small Automatic protection function, unexpected situations such as when the power supply short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line of The power box reserve enough space inside for easy wiring and plug terminals Heave duty metal case with space for access controller With charge and discharge function, can add a 7AH 12V DC battery, can meet the needs of an electric mortise lock, a card reader and a controller to work 35 hours after power failure
Lock delay time: 1-10S
Specification:
Power: 40W
Input: AC110V/60Hz

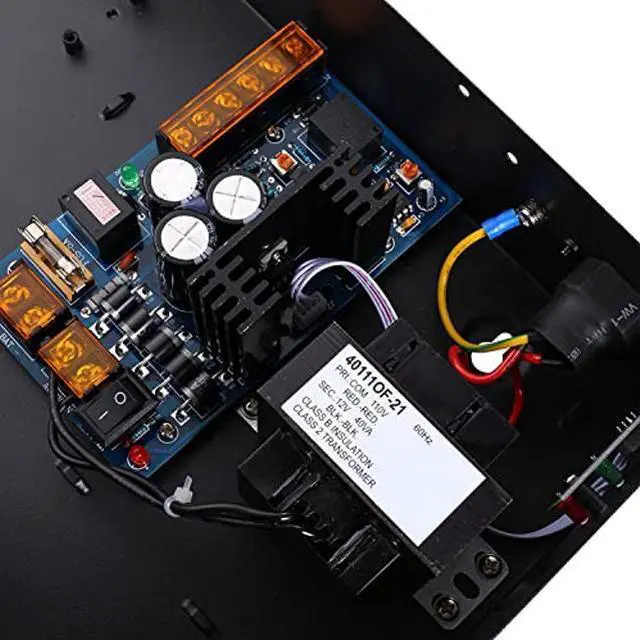

Output: DC11V-14V/ 3.5AT ransformer is UL-Recognized certified, offers reliable performance
External battery specifications: 7AH 12V lead-acid battery (Battery not included)
Battery depletion protection voltage: 9V
Dimensions: 371Lx259Wx78Hmm / 14.6L x 10.2W x 3.1H (inch)
Weight: 3.3 kg / 7.3 lb

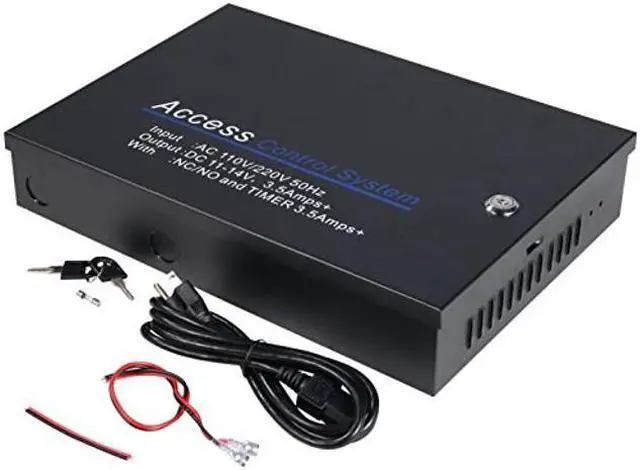

Package: 1 x Metal Box Power Supply 1 x Power Cable2 x Keys
Features: Setting NC/NO output, can control different electric locks, reduce the load of access controllerSetting automatic protection function, built-in fuseThe power box cab be spit and buckle wear, suitable for installation where space is small Automatic protection function, unexpected situations such as when the power supply short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line of The power box reserve enough space inside for easy wiring and plug terminals Heave duty metal case with space for access controller With charge and discharge function, can add a 7AH 12V DC battery, can meet the needs of an electric mortise lock, a card reader and a controller to work 35 hours after power failure
Lock delay time: 1-10S
Specification:
Power: 40W
Input: AC110V/60Hz
Output: DC11V-14V/ 3.5AT ransformer is UL-Recognized certified, offers reliable performance
External battery specifications: 7AH 12V lead-acid battery (Battery not included)
Battery depletion protection voltage: 9V
Dimensions: 371Lx259Wx78Hmm / 14.6L x 10.2W x 3.1H (inch)
Weight: 3.3 kg / 7.3 lb
Package: 1 x Metal Box Power Supply 1 x Power Cable2 x Keys
