*Note:
1. Use only the included USB-C to Lightning cable to connect the Accsoon SeeMo product lines with iPad.
2. Accsoon SeeMo product lines cannot be used with other brands' USB-C to Lightning cables.
2. The included cables are custom cables only for use with Accsoon SeeMo product lines.
Please do not use the cable with products other than Accsoon SeeMo product lines
otherwise Accsoon makes no commitment to the performance of the cable, and the user is responsible for the consequences.
Specification:

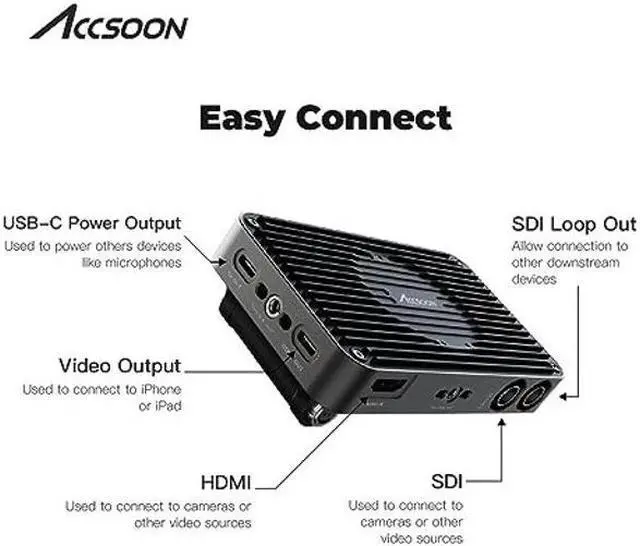

Video Input Port: SDI IN, HDMI IN
HDMI Video Input Format: 1080p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98 fps
720p 60/ 59.94 /50fps
SDI Video Input Format: 1080p 23.98 /24/25/ 29.97 /30/50/ 59.94 /60fps
SDI Loop-out Format: 1080p 23.98 /24/25/ 29.97 /30/50/ 59.94 /60fps
Video Output Port: SDI LOOP OUT, USB-C OUT
Video Output Format:: 1080p 24/25/30/50/60fps 720p 50/60fps

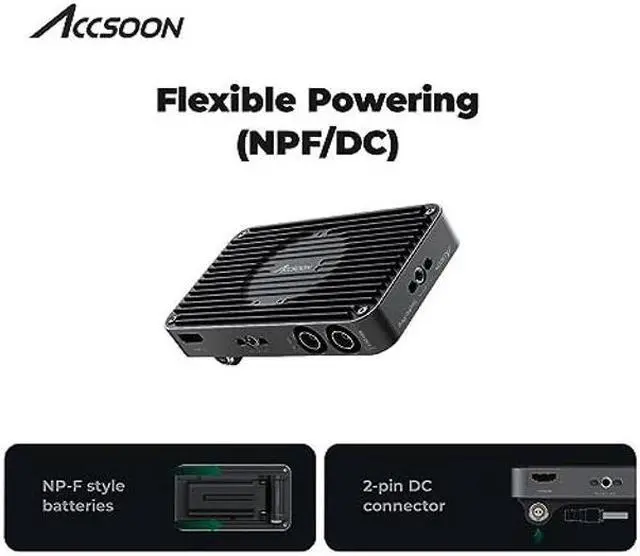

Battery Compatibility: NP-F550/F750/F970

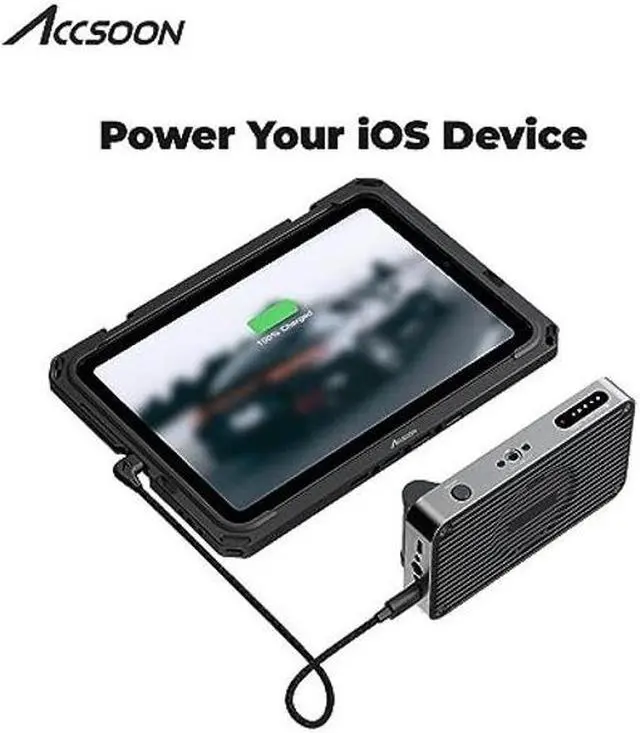

Power Output Port: 5V/3A
Power Input Port: 2 PIN DC INPUT 6.4 - 16.8V
iOS Version: iOS 12.0 or later
Power Consumption: 3.5 Watt (without charging other devices)
Operating Environment Temperature: -10~40
Dimensions: 125mmx72mmx 35.5 mm
Weight: 224g
Compatible model:
iPAD:
iPad 6th gen above and later
iPad Pro 9.7 inch
iPad 10.5 inch/11 inch
iPad 12.9 inch
iPad Air 3rd gen above and later
iPad Mini 5th gen above and later

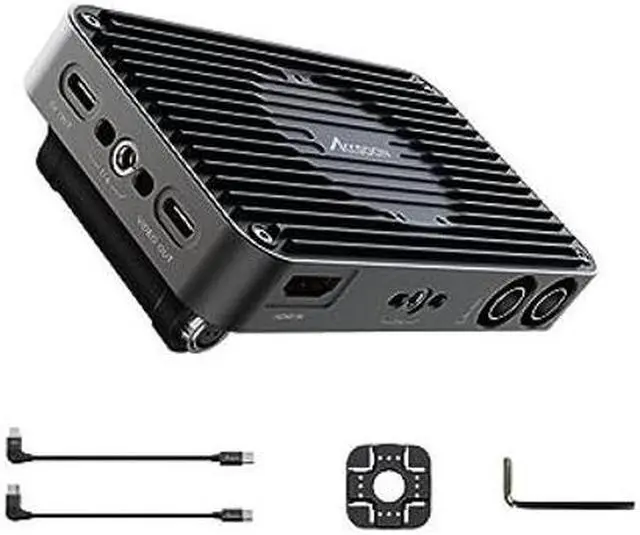

Packing list:
Accsoon SeeMo Pro x 1
USB-C to Lightning Cable x 1
USB-C to USB-C Cable x 1
SeeMo Mount Bracket x 1
M 2.5 *8 Screw x 5
L Shape Wrench x 1
User Manual x 1
