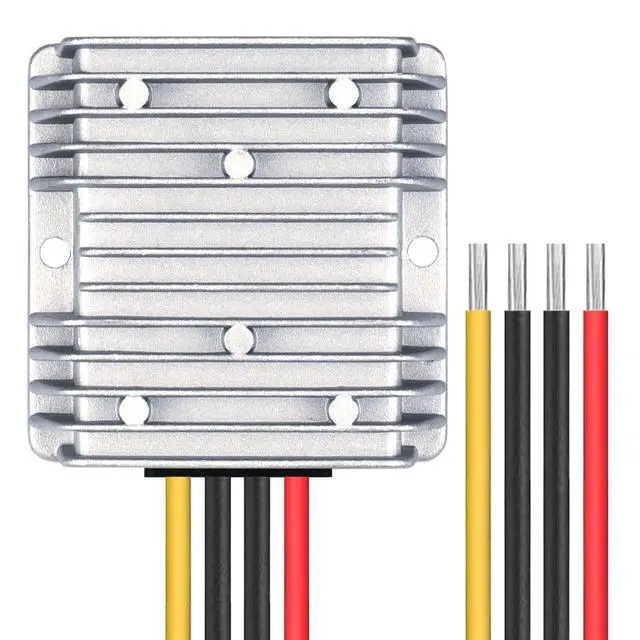

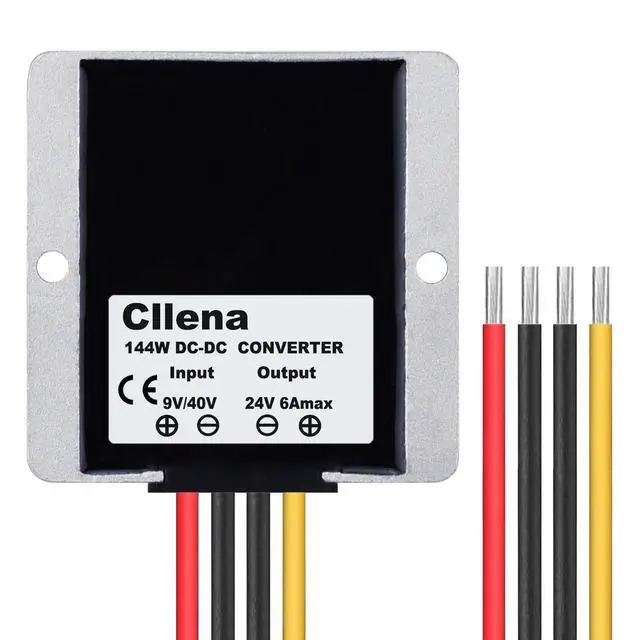

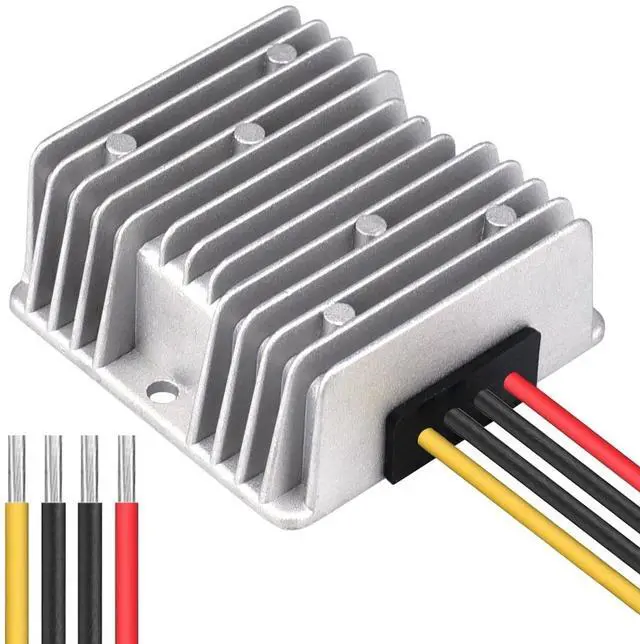

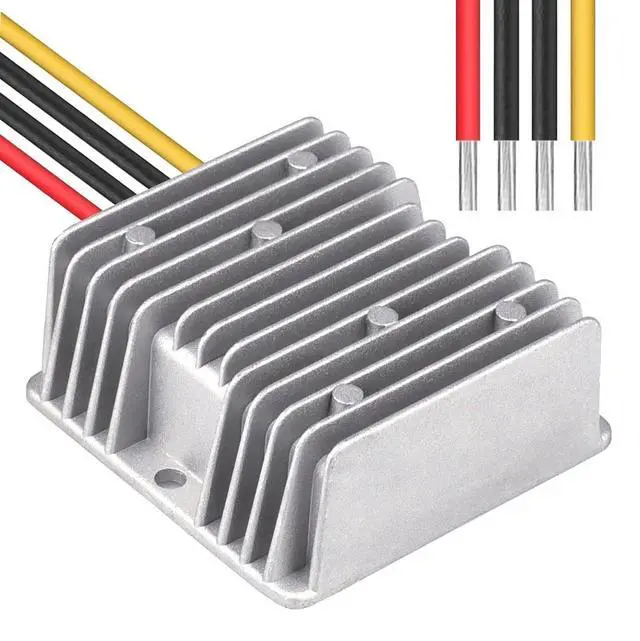

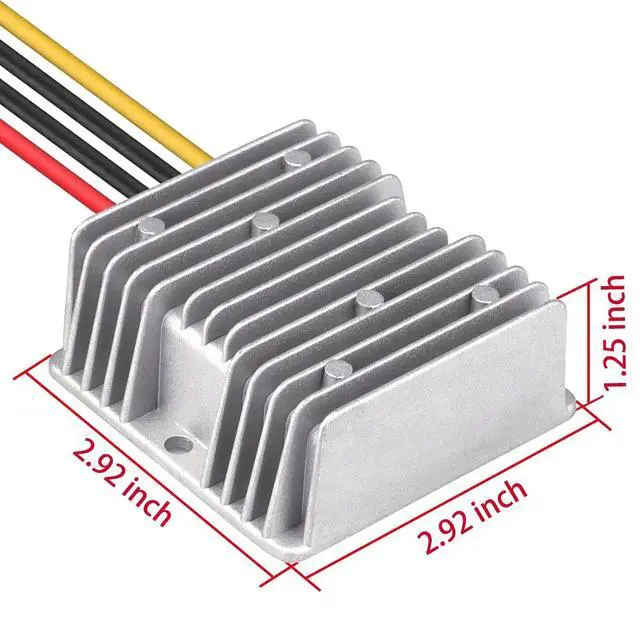

Cllena DC 9V-40V to 24V 6A Automatic Buck Boost Converter Step Down/Up Regulator Voltage Reducer Converter Waterproof Regulated DC Power Supply for Golf Cart Club Car LED Light
- Input voltage range: DC 9V-40V; Output voltage: DC 24V(non-adjustable); Output current: 6A; Output power 144W.
- High conversion efficiency: Synchronization rectification technology-multiple intelligent protection function with high conversion efficiency and stability. The conversion efficiency may reach 95%.
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- Aluminum shell and silicone sealed design: Waterproof, Anti-shock, Anti-humidity and Dust-proof, more durable.
- Wide application: Large trucks, Golf cart, Club car, taxi radio, emu, car audio, LCD TV, advertising screen, LED strip lights, monitoring system, electronic systems and DIY etc.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Wiring: OUTPUT+ to LOAD+, OUTPUT- to LOAD-; INPUT+ to BAT+, INPUT- to
BAT-Note: * Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine. * Never use for charge. Keep good air convection. * Never reverse the polarity. * Use the enough big cable to avoid the voltage drop.
Voltage Range: 9V-40V
DCOutput Voltage: DC24V 6AOutput
Rated Power:
144WEfficiency: 97% (half load); 95% (full load)
Ripple: 200mVpLine
Regulation: 0.2 %Load
Regulation: 0.2 %Voltage
Accuracy: 1.5
%Enclosures: IP68Case
Operating Temperature:
-40~85CWeight:
246gFeatures: 1. 100% full power and stable current output, non-isolated module. 2. Industry grade DC 9V-40V to DC 24V step down/up converter, efficiency up to 95%. 3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection. 4.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating. 5.
Certificates: CE/RoHS, 1 year warranty, lifetime up to 100, 000 hours.
Package included: 1 x DC 9V/40V to24V 6A
ConverterQuestions: How to choose the correct current for loads? For example, if the max current of your load device is 10A, then choose 10A/ 0.8 = 12.5A at least for resistive loads according to international standard. If the load device is motor or compressor, then you may choose 10A/ 0.5 =20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.
BAT-Note: * Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine. * Never use for charge. Keep good air convection. * Never reverse the polarity. * Use the enough big cable to avoid the voltage drop.
Specifications
: InputVoltage Range: 9V-40V
DCOutput Voltage: DC24V 6AOutput
Rated Power:
144WEfficiency: 97% (half load); 95% (full load)
Ripple: 200mVpLine
Regulation: 0.2 %Load
Regulation: 0.2 %Voltage
Accuracy: 1.5
%Enclosures: IP68Case
Operating Temperature:
-40~85CWeight:
246gFeatures: 1. 100% full power and stable current output, non-isolated module. 2. Industry grade DC 9V-40V to DC 24V step down/up converter, efficiency up to 95%. 3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection. 4.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating. 5.
Certificates: CE/RoHS, 1 year warranty, lifetime up to 100, 000 hours.
Package included: 1 x DC 9V/40V to24V 6A
ConverterQuestions: How to choose the correct current for loads? For example, if the max current of your load device is 10A, then choose 10A/ 0.8 = 12.5A at least for resistive loads according to international standard. If the load device is motor or compressor, then you may choose 10A/ 0.5 =20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.
