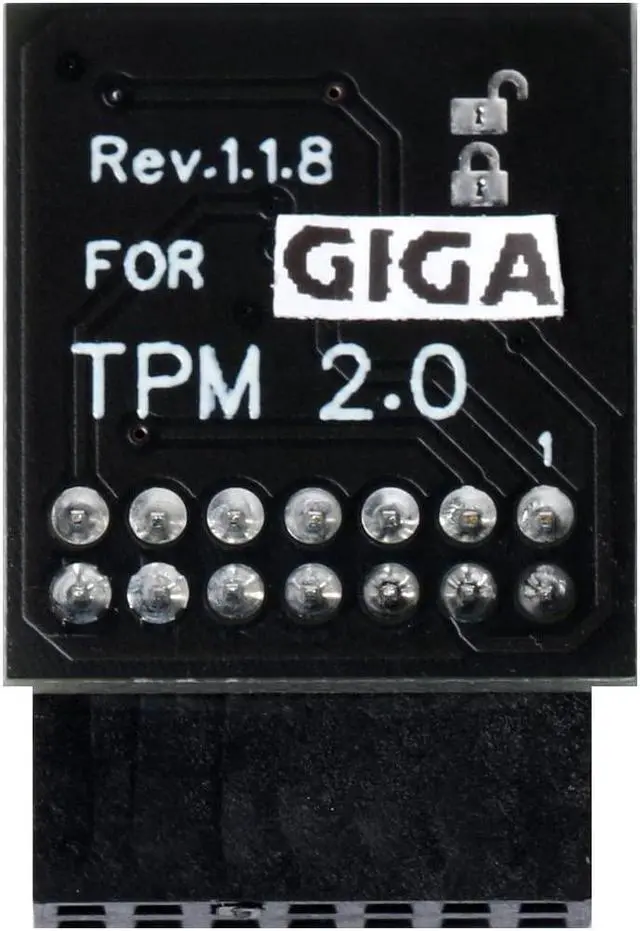

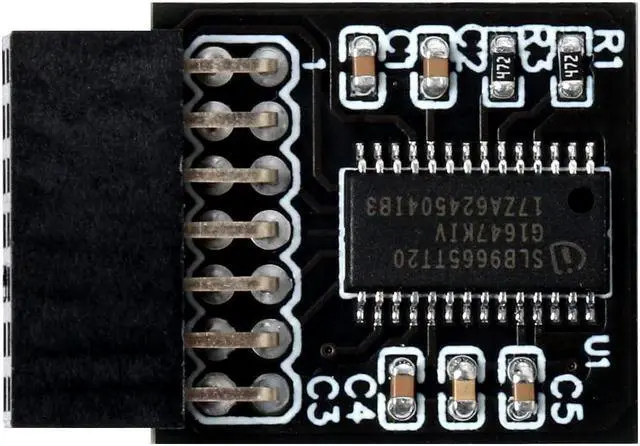

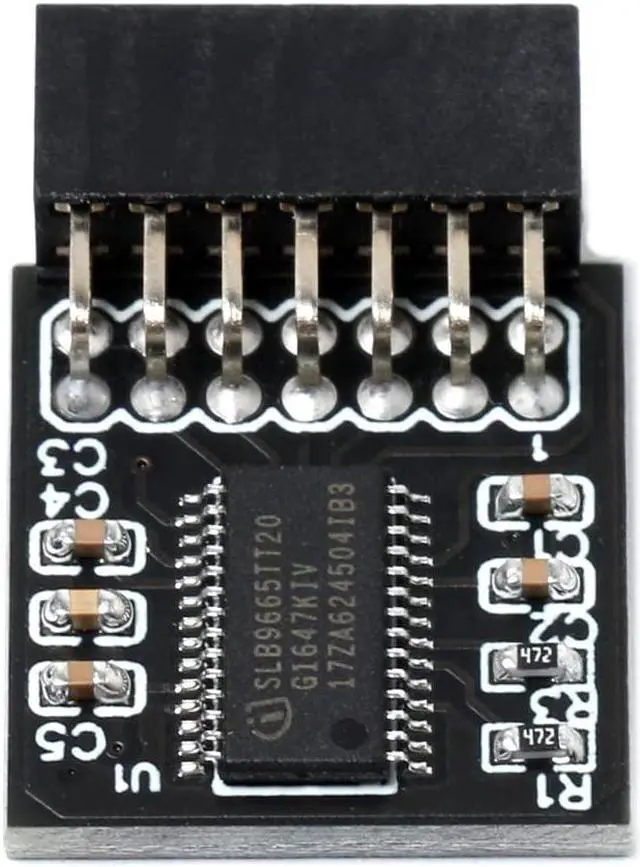

NUHFUFA TPM 2.0 Security Module for GIGABYTE GC-TPM20 Motherboard Platform Accessories
- TPM 2.0 Security Module LPC 14Pin(14pin-1) TPM2.0 is installed to upgrade your computer's system to Windows 11, if your motherboard is DDR3 it does not support the use of this adapted TPM2.0 security module.
- Supported status may vary depending on giga byte GC-TPM20 motherboard specifications. TPM chip is better compatible with the motherboard's memory module of DDR4 and above.
- Not OEM product but high quality, actual performance may vary by system configuration. Please check the motherboard manual to confirm whether your motherboard supports TPM2.0, which you can check on the official website of the motherboard.
- Test before shipping, stable performance for long time use. Please recheck the compatibility before making an order. Some motherboards need to plug in the TPM module or update to the latest BIOS to enable the TPM option.
- Note: Before inserting the module, please turn off the power and find the location of the pin on the motherboard where the TPM is written
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Package:
1x TPM 2.0 Security Module
Note:
Please recheck the compatibility before making an order. Some motherboards need to plug in the TPM module or update to the latest BIOS to enable the TPM option

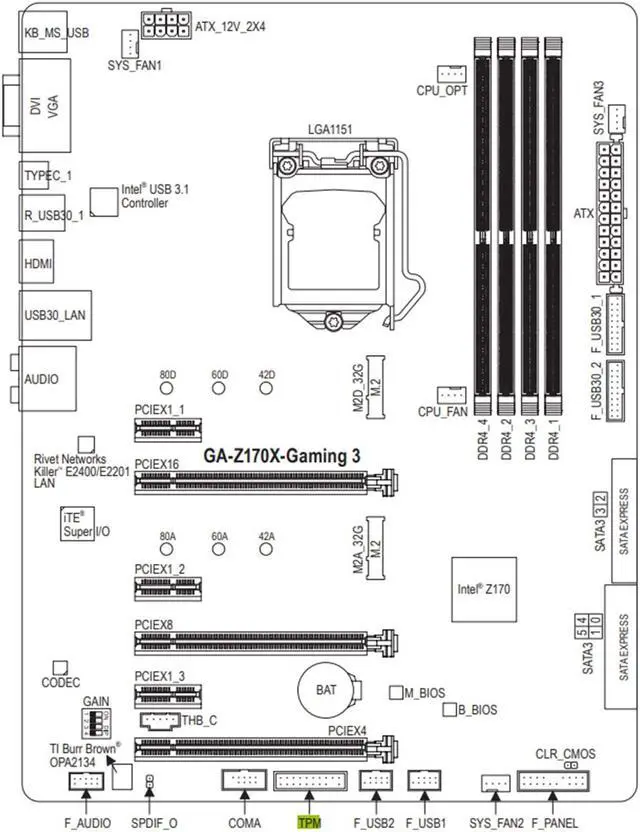

Before inserting the module, please turn off the power and find the position of the pin that marked TPM
LPC interface:
[Key Features]
Compliant to TPM Main Specification, Family " 2.0", Level 00, Revision 01.16
Meets Intel TXT, Microsoft Windows and Google Chromebook certification criteria for successful platform
[Qualification]
Random Number Generator (RNG) according to NIST SP800-90A
Full personalization with Endorsement Key (EK) and EK certificate
Standard (-20.. +85degC) and enhanced temperature range (-40.. +85degC)
Optimized for battery operated devices: low standby power consumption (typ. 150mA)
24 PCRs (SHA-1 or SHA-256)
7206 Byte free NV memory
Up to 3 loaded sessions (TPM_PT_HR_LOADED_MIN)
Up to 64 active sessions (TPM_PT_ACTIVE_SESSIONS_MAX)
Up to 3 loaded transient Objects (TPM_PT_HR_TRANSIENT_MIN)
Up to 7 loaded persistent Objects (TPM_PT_HR_PERSISTENT_MIN)
Up to 8 NV counters
Up to 1 kByte for command parameters and response parameters
Up to 768 Byte for NV read or NV write
1280 Byte I/O buffer
Built-in support by Linux Kernel Version 3.10 and higher
1x TPM 2.0 Security Module
Note:
Please recheck the compatibility before making an order. Some motherboards need to plug in the TPM module or update to the latest BIOS to enable the TPM option
Before inserting the module, please turn off the power and find the position of the pin that marked TPM
LPC interface:
[Key Features]
Compliant to TPM Main Specification, Family " 2.0", Level 00, Revision 01.16
Meets Intel TXT, Microsoft Windows and Google Chromebook certification criteria for successful platform
[Qualification]
Random Number Generator (RNG) according to NIST SP800-90A
Full personalization with Endorsement Key (EK) and EK certificate
Standard (-20.. +85degC) and enhanced temperature range (-40.. +85degC)
Optimized for battery operated devices: low standby power consumption (typ. 150mA)
24 PCRs (SHA-1 or SHA-256)
7206 Byte free NV memory
Up to 3 loaded sessions (TPM_PT_HR_LOADED_MIN)
Up to 64 active sessions (TPM_PT_ACTIVE_SESSIONS_MAX)
Up to 3 loaded transient Objects (TPM_PT_HR_TRANSIENT_MIN)
Up to 7 loaded persistent Objects (TPM_PT_HR_PERSISTENT_MIN)
Up to 8 NV counters
Up to 1 kByte for command parameters and response parameters
Up to 768 Byte for NV read or NV write
1280 Byte I/O buffer
Built-in support by Linux Kernel Version 3.10 and higher
