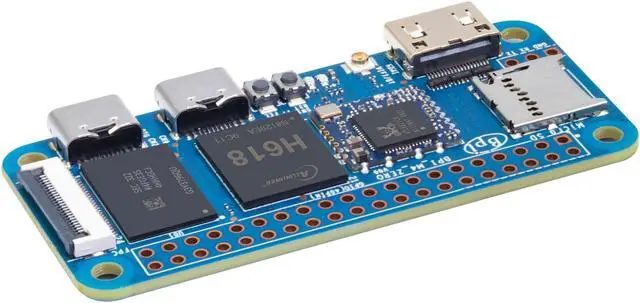

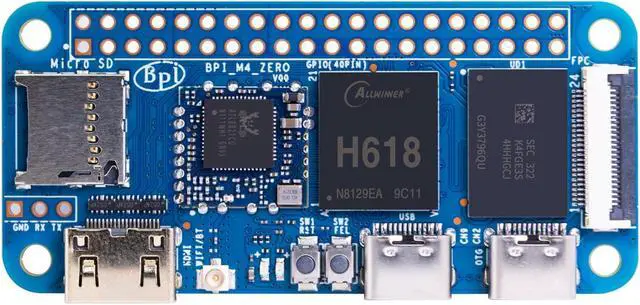

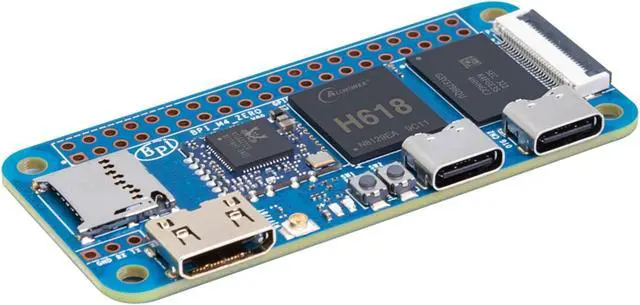

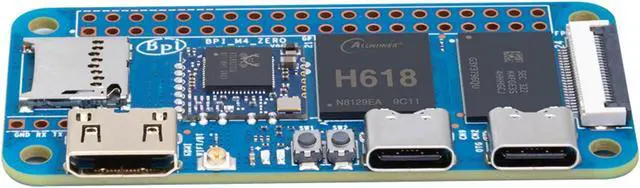

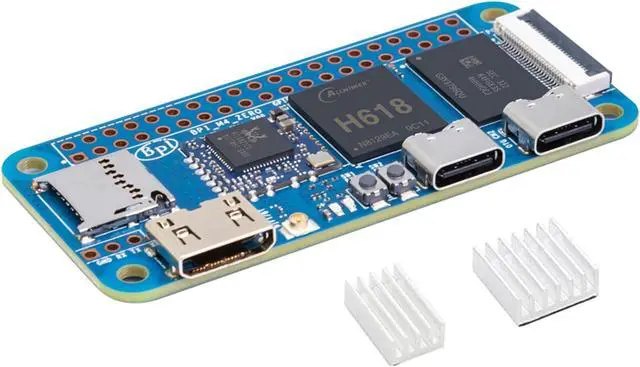

Banana Pi BPI M4 Zero Allwinner H618 LPDDR4 4GB Linux Single Board Computer, Wireless Dual-Band Development Board, ARM Mali G31 GPU for IoT Programming, Support Debian Ubuntu (4+32G SBC)
- [Upgraded Allwinner Chip] Banana Pi BPI-M4 Zero single board computer has a huge improvement in performance. The SoC is upgraded to Allwinner H618, 64-bit Quad-core ARM Cortex-A53 up to 1.5GHz, with ARM Mali G31 GPU, the CPU frequency is increased by 25%.
- [Greater Memory Scalability] Banana Pi BPI-M4 Zero single board computer onboard 4GB LPDDR4 RAM memory, 32GB eMMC is added. It also supports MicroSD card slot, SDIO3.0 and 100Mbps Ethernet. Making IoT and educational application development easier.
- [Supports 2.4G/5G Dual Band WiFi] Banana Pi BPI-M4 Zero single board computer supports dual band 2.4G/5G WiFi 5 and Bluetooth 4.2, and the USB interface has also been upgraded to type-C HOST, also onboard USB2.0 Type-C OTG port.
- [Excellent Compatibility] Banana Pi BPI-M4 Zero single board computer has same form factor and 40-pin connector compatible with Raspberry Pi Zero W, and it can fit most of the RPI Zero W cases and accessories. Size: 65mm x30mm x 8mm.
- [Supports
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
-Specification-
CPU: Allwinner H618, Quad-core ARM Cortex-A53 processor, 64-bit, up to 1.5GH z
GPU: ARM Mali G31 GPU
Memory: 4GB LPDDR4
Storage: 32GB eMMC flash
SD card: MicroSD card slot, SDIO 3.0
Wireless: 2.4G /5G WiFi 5 and Bluetooth 4.2
HDMI: 1x miniHDMI 2.0 a (up to 4K@60Hz with HDR10, CEC, DDC, SCDC), HDMI digital Audio output
USB: 1x USB 2.0 Type-C HOST, 1x USB 2.0 Type-C OTG
40-pin header: 28 pins GPIO and Power (+5V, + 3.3V and GND), UART, SPI, TWI/I2C, PWM, PCM/I2S
24-pin FPC: 0.5 mm pitch FPC connector, 1x USB 2.0, 1x IR, 1x 100Mbps Ethernet
9 pins GPIO, UART, TWI/I2C, PWM, PCM/I2S
Buttons: Reset, FEL
LED: Power Status and Activity status
Power: 5V@3A via USB Type-C
Size: 65mm x 30mm x 8mm
Weight: 20g
OS Support: Ubuntu, Debian
-Technical Support-
Wiki: "wiki. banana-pi. org/Banana_Pi_BPI-M4_Zero".
Getting Started: "wiki. banana-pi. org/Getting_Started_with_BPI-M4_Zero".
Please click "WayPonDEV" and ask a question.
Please leave the message "wpd#youyeetoo&com (#-@, &-
. )" or skype: monica_9122.
CPU: Allwinner H618, Quad-core ARM Cortex-A53 processor, 64-bit, up to 1.5GH z
GPU: ARM Mali G31 GPU
Memory: 4GB LPDDR4
Storage: 32GB eMMC flash
SD card: MicroSD card slot, SDIO 3.0
Wireless: 2.4G /5G WiFi 5 and Bluetooth 4.2
HDMI: 1x miniHDMI 2.0 a (up to 4K@60Hz with HDR10, CEC, DDC, SCDC), HDMI digital Audio output
USB: 1x USB 2.0 Type-C HOST, 1x USB 2.0 Type-C OTG
40-pin header: 28 pins GPIO and Power (+5V, + 3.3V and GND), UART, SPI, TWI/I2C, PWM, PCM/I2S
24-pin FPC: 0.5 mm pitch FPC connector, 1x USB 2.0, 1x IR, 1x 100Mbps Ethernet
9 pins GPIO, UART, TWI/I2C, PWM, PCM/I2S
Buttons: Reset, FEL
LED: Power Status and Activity status
Power: 5V@3A via USB Type-C
Size: 65mm x 30mm x 8mm
Weight: 20g
OS Support: Ubuntu, Debian
-Technical Support-
Wiki: "wiki. banana-pi. org/Banana_Pi_BPI-M4_Zero".
Getting Started: "wiki. banana-pi. org/Getting_Started_with_BPI-M4_Zero".
Please click "WayPonDEV" and ask a question.
Please leave the message "wpd#youyeetoo&com (#-@, &-
. )" or skype: monica_9122.
