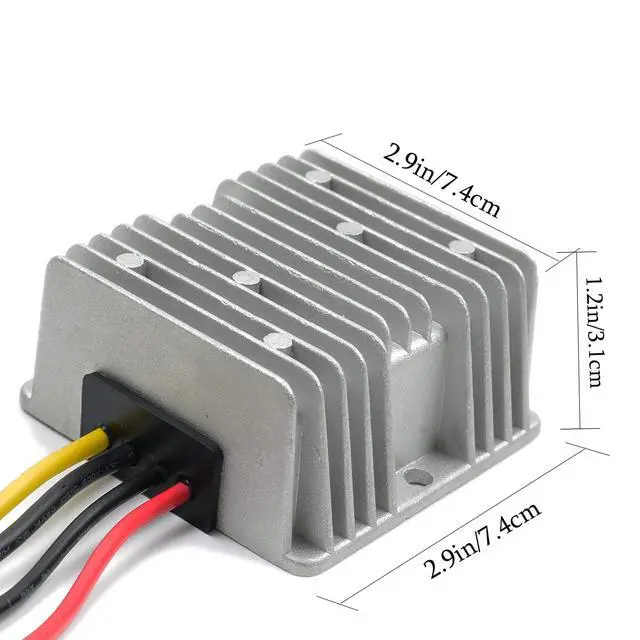

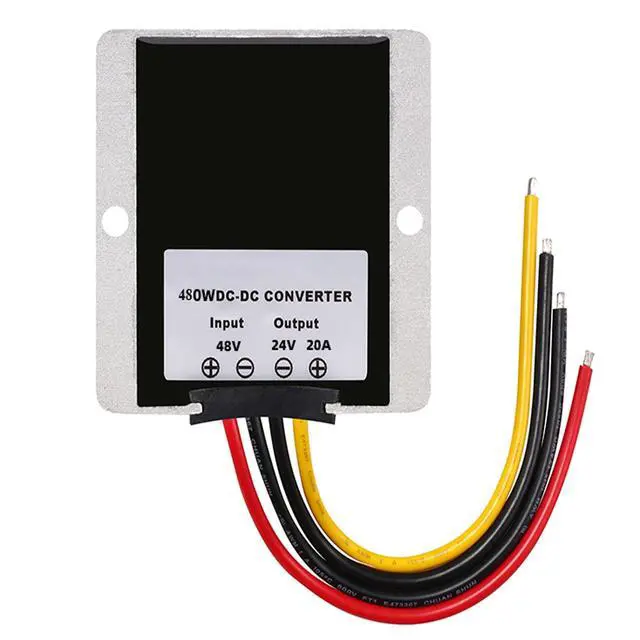

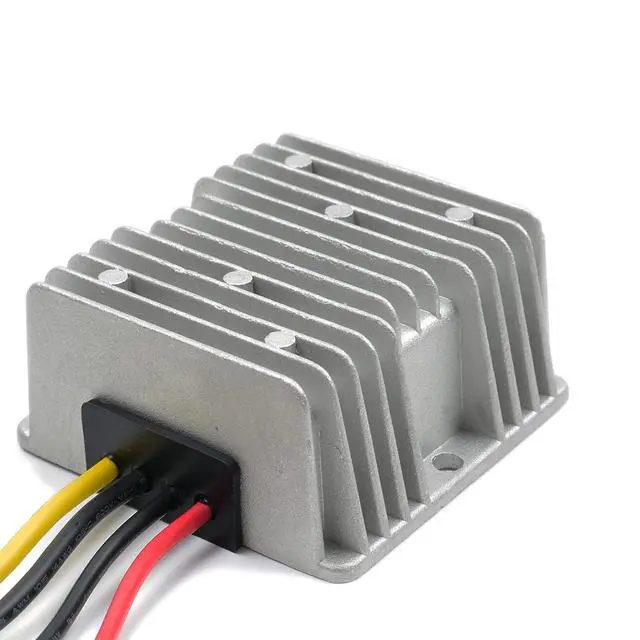

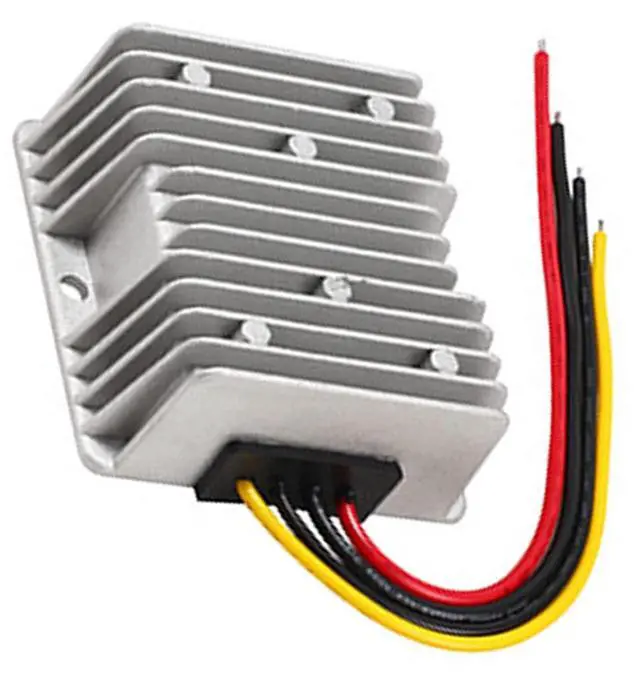

QJFCare DC Converter Voltage Reducer 36V 48V Step Down to 24V 20A 480W, Waterproof Big-Size Voltage Reducer, High-Power DC/DC Power Supply Module Buck Transformer, for Golf Cart, forklifts, Car
- Voltage Converter Regulator DC 36V 48V to DC 12V 20A 30A 240W 360W, input voltage range is DC 30-60V.
- Die-cast aluminum shell, Silicone sealed, Expoxy potting, Cooling by free air convection, Anti-shock, Anti-humidity, Dust-proof, Synchronization rectification technology-multiple intelligent protection function with high conversion efficiency and stability, maximum transfer efficiency of 96% max, low heat generated and Stable performance.
- 5 Safty Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage; over 100000 hours lifetime.
- Waterproof rating: IP68, 100% waterproof , can work in rain, waterproof housing makes the converter ideal for use in a wide range of applications including vehicles, security systems, hospital equipment, telecommunications etc, and Commonly used for radio, speaker system, club car, electric bike, solar panel, led lights.
- The dc-dc converter is widely used in golf cart, forklifts, bus, cmb, large trucks, motor, solar gene
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The dc converter regulator is a high reliability power transformer. It features wide input voltage, low power consumption, high efficiency, high reliability. It can work safely and reliability in 40C~80C. It widely used in industrial, automotive, instruments, telecommunication and civil applications. Die-cast aluminum shell, epoxy potting, cooling by free air convection5
Safty Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage; Auto-recovery when device is back to normal operatingStable and reliable performance, 100% waterproof & anti-shock protection, lifetime up to 100, 000 hoursIndustry grade DC 36V 48V to 12V step-down converterSynchronization Rectification Technologyefficiency up to 96% maxUltra compact size, light weightNon-Isolated
ModuleEasy to installApplications: golf cart, forklifts, bus, CMB, large trucks, motor car, solar power generating, bus displaying screen, taxi advertising screen, taxi radio without interference, car audio speaker, LCD TV, LED, intercom and monitor system, etc.
Case material: die-cast
aluminumPotting material: epoxy
sealedInput voltage: 36V/48V
DCInput range: 30-60V
DCOutput voltage: 12V
DCOutput current: 20A/30AOutput
Rated Power:
240WEfficiency: 96%
maxOperating temperature: -40
~ 80Waterproof rating: IP68Fixing
Hole Diameter: 5mm(
0.20 inch)Package included: 1 x DC Voltage converter regulator
Safty Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage; Auto-recovery when device is back to normal operatingStable and reliable performance, 100% waterproof & anti-shock protection, lifetime up to 100, 000 hoursIndustry grade DC 36V 48V to 12V step-down converterSynchronization Rectification Technologyefficiency up to 96% maxUltra compact size, light weightNon-Isolated
ModuleEasy to installApplications: golf cart, forklifts, bus, CMB, large trucks, motor car, solar power generating, bus displaying screen, taxi advertising screen, taxi radio without interference, car audio speaker, LCD TV, LED, intercom and monitor system, etc.
Case material: die-cast
aluminumPotting material: epoxy
sealedInput voltage: 36V/48V
DCInput range: 30-60V
DCOutput voltage: 12V
DCOutput current: 20A/30AOutput
Rated Power:
240WEfficiency: 96%
maxOperating temperature: -40
~ 80Waterproof rating: IP68Fixing
Hole Diameter: 5mm(
0.20 inch)Package included: 1 x DC Voltage converter regulator
