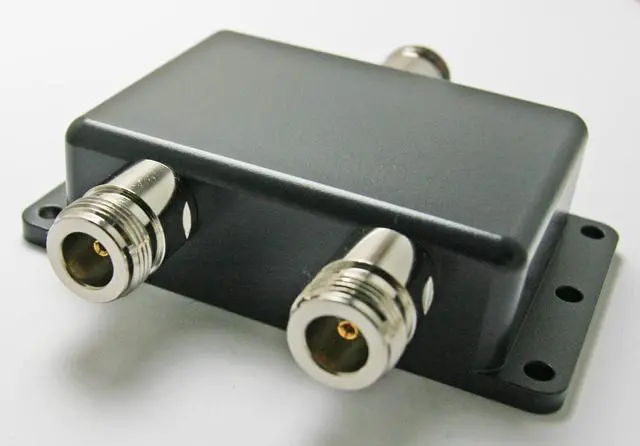

AEC PD-1002S-NS25TA-NS25TA, N-Type 50 ohm Female, Power Splitter
- Frequency Range : 698~2700MHz
- Broadband application for LTE, UMTS/WCDMA, TD-SCDMA, AMPS, GSM, PCS, WiFi/WLAN 2.4GHz and so on
- Impedance : 50 ohm
- Insertion Loss : 0.3dB max. (above 3dB split)
- Isolation : 20dB min.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Material: N type
Body: BrassN type
Contact Pin: BrassN type
Insulator: PTFE
Shell:
AluminumFinished: N type
Body: Nickel PlatedN type
Contact Pin: Gold
PlatedShell: Sandblast
Black CoatedElectrical Characteristics: Wideband
coverage: 698
to 2700MHzImpedance: 50 ohmInsertion
Loss: 0.3 dB max. (above 3dB split)

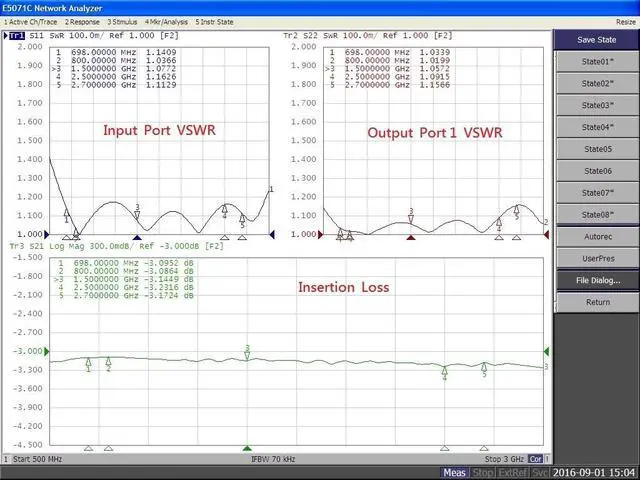

Input VSWR: 1.25 max.
Output VSWR: 1.2 max.
Isolation: 20dB min.
Product Dimension:
Length: 95.8
mmWidth:
94mmHigh:
25mmWeight:
326gPacking: Zip Bag(1Pc/1Set)
Body: BrassN type
Contact Pin: BrassN type
Insulator: PTFE
Shell:
AluminumFinished: N type
Body: Nickel PlatedN type
Contact Pin: Gold
PlatedShell: Sandblast
Black CoatedElectrical Characteristics: Wideband
coverage: 698
to 2700MHzImpedance: 50 ohmInsertion
Loss: 0.3 dB max. (above 3dB split)
Input VSWR: 1.25 max.
Output VSWR: 1.2 max.
Isolation: 20dB min.
Product Dimension:
Length: 95.8
mmWidth:
94mmHigh:
25mmWeight:
326gPacking: Zip Bag(1Pc/1Set)
