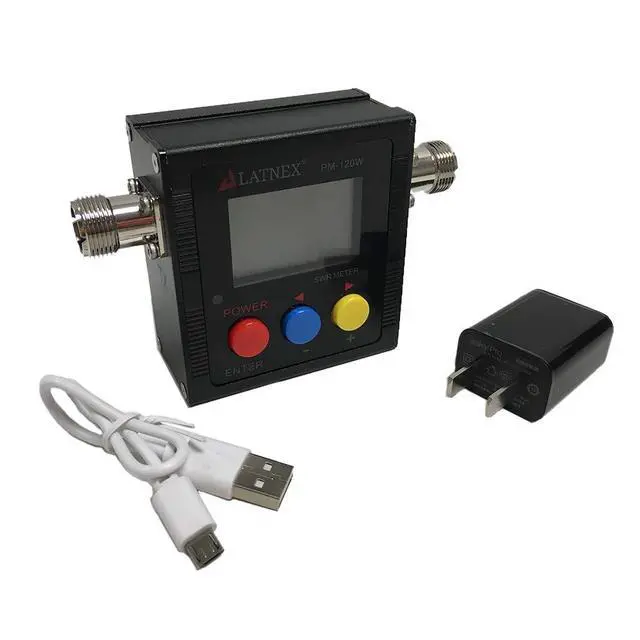

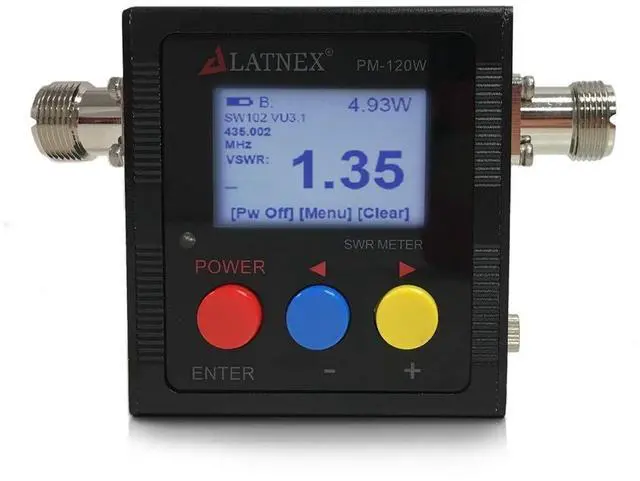

PM-120W Digital VHF UHF 125-525Mhz Power SWR Meter and Frequency Counter - HF RF Meter HAM Two-Way Radio SO239 Connector

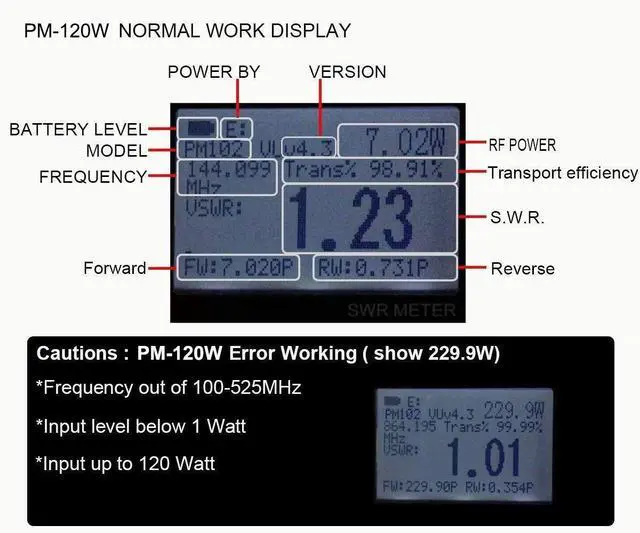

Features: VSWR. Forward and reflected power direct digital readout, without any calibration. Maximum measurable power range up to 120W. low insertion loss ( 0.3 decibels or less) structure allows it to be permanently connected. Build in Frequency counter. All function display (Frequency, Power, SWR, FW, RW,
Battery Level)Specifications: Frequency
range: 1025
- 525MHzMeasurable power range: 1 - 120W(+- 0.5 %)Input Frequency counter (min 0.5
W input)Maximum power:
120WImpedance:
50Size: W 76 X H 77 X D35 mm.
Weight: <220
gramsBattery: 3.7V Li-ionRechargeable
Battery Interface: SO239Interface MAX.
Power in: 120 W (Measurable power, Radio must be ANALOG)V. S. W.
R: 1.00 ~ 19.9F requency
Ranger:
COVER: 100MHz~520MHzInsertion
Loss: < 0.15 dB (VHF), < 0.25 dB (UHF)
Temperature: 0~60Frequency
counter: Yes ( TX input must be minimum 0.5W + - 0.5 %)Battery
Voltage Display: YesBattery
Build-in: 3.7V 900MAH (14500 Li-ion Rechargeable)Auto
Power Off: 1-9
minsSize: 66*68*37 (mm)
Charger in: 5V (micro usb)
Backlight: AUTO OFF 1-9 minsInterface (in and out ):
SO239Weight: 220g (including battery) * Not compatible with DMR digital radio
