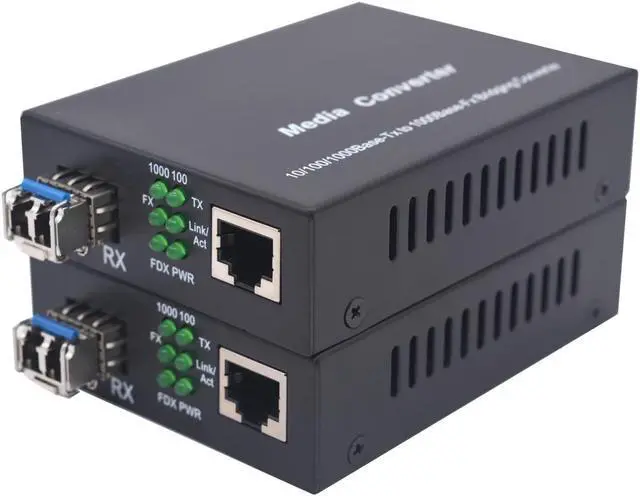

Multi-Mode LC Gigabit Fiber Media Converter - Include 2 LC SFP Transceiver 2Km, Wavelenth 1310nm, LC to UTP Cat5e 10/100/1000 RJ-45 Gigabit Ethernet Speed, 2 Pack
- Fiber Port: 2KM SFP transceiver included (1.25G, Multi-mode, Wavelength 1310nm).
- Fiber Type: SFP MMF, Dual LC Fiber.
- AUTOMATICALLY adapts to 10/100/1000M(Gigabit)bit/s Speed And Extends it over Multi-Mode Fiber to up to 2Km.Use it with Multi-Mode Fiber Only.
- Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status.
- PLUG & PLAY Fiber Media Converters - Simply plug in SFP LC port and UTP RJ-45 port, it will work immediately.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
1.
Dimensions: 95x72x27mm (LxWxH)
2. Power Adapter working voltage AC100V~240V DC5V1A, UL Certified.
3. Power Dissipation 3 watts.
4. High-quality Conversion Chip & Easy Installation, Operating
temperature: 0°C to 60°C.
5.
Storage temperature: -20°C to 70°C.
Humidity: 5% to 90% RH.
Product content:
2x Gigabit Multimode Ethernet Fiber Media Converter.
2x Bi-Di SFP slot LC Multi-Mode module (1310nm, up to 2Km).
2x External Power Adapter (US standard),
Output voltage: 5V DC/1A, UL Certified.
1x Product Manual.

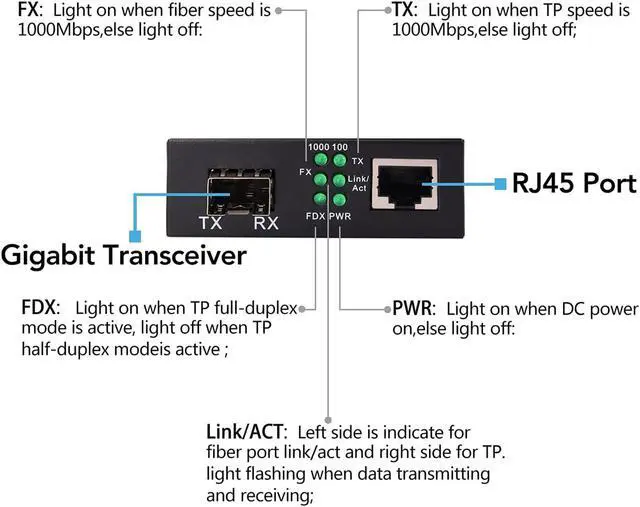

LED Indicators
1.
FP: Light on when fiber speed is 1000Mbps, else light off
2.
TP: Light on when TP speed is 1000Mbps, else light off
3.
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
4.
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
5.
PWR: Light on when DC power on, else light off.
1.
Dimensions: 95x72x27mm (LxWxH)
2. Power Adapter working voltage AC100V~240V DC5V1A, UL Certified.
3. Power Dissipation 3 watts.
4. High-quality Conversion Chip & Easy Installation, Operating
temperature: 0°C to 60°C.
5.
Storage temperature: -20°C to 70°C.
Humidity: 5% to 90% RH.
Product content:
2x Gigabit Multimode Ethernet Fiber Media Converter.
2x Bi-Di SFP slot LC Multi-Mode module (1310nm, up to 2Km).
2x External Power Adapter (US standard),
Output voltage: 5V DC/1A, UL Certified.
1x Product Manual.
LED Indicators
1.
FP: Light on when fiber speed is 1000Mbps, else light off
2.
TP: Light on when TP speed is 1000Mbps, else light off
3.
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
4.
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
5.
PWR: Light on when DC power on, else light off.
