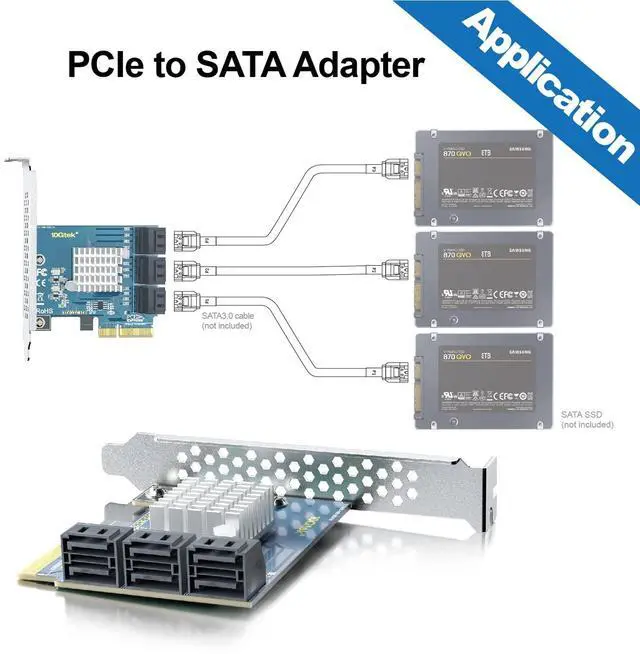

It connects six 6 Gbps SATA 3.0 SSDs or HDDs to your desktop computer with six SATA cables to improve your system performance and expand overall internal storage. (NO-Support Raid).
The 6-port SATA controller is based on the ASMedia ASM1166 chip, offering more stability and wider compatibility. Port Multiplier Command-based switching is supported.

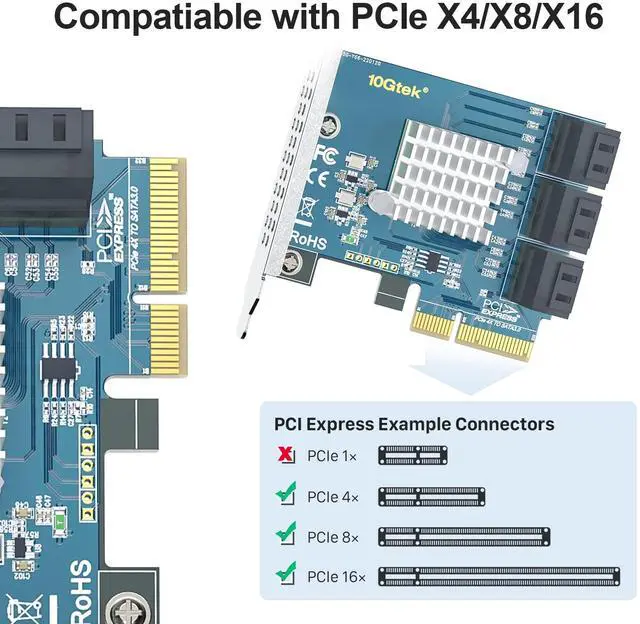

Compliant with SATA 3.0 standards, backward compatible with SATA 2.0 and SATA 1.0. Support PCIe 1.0, 2.0, 3.0 protocol on motherboard PCIe X4, X8, X16 slot. (NOT support hot swapping!)

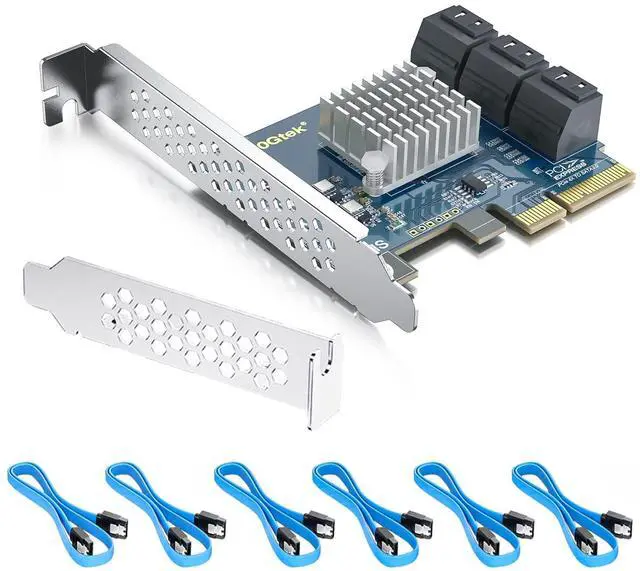

Full-height and low-profile brackets included. The length of the included SATA cable is 0.5m/1.6ft.
Supports Windows 7/8/10, Windows Server 2008 R2/2012 R2/2016/2019, RHEL/CentOS 6/7/8, Debian 9/10/11, Ubuntu 16/18/20/21, SUES 11/12/15, FreeBSD 11/12/13, VMware ESXi 5/6/7.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
10Gtek 6-Port PCIe Expansion Card, PCIe x4 to 6X SATA 3.0 (6Gbps) Controller with 6 Cables & Low Profile Bracket, Supports HDD/SSD Storage for Desktop PC
Learn more about the Detailed Specifications
Additional Information
First Listed on Newegg
October 27, 2025
There are no reviews yet.
Do you own this product?
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
