Teltonika TSW100000030 Model TSW100 Industrial Unmanaged POE+ Switch, AU PSU, 4 x PoE Ports, Rugged Aluminum Housing, 5 x Gigabit Ethernet with Speeds up to 1000 Mbps, Plug-N-Play

Teltonika TSW100000030 Model TSW100 Industrial Unmanaged POE+ Switch, AU PSU, 4 x PoE Ports, Rugged Aluminum Housing, 5 x Gigabit Ethernet with Speeds up to 1000 Mbps, Plug-N-PlayEquipped with five Gigabit Ethernet ports, four of which support IEEE 802.3 af and IEEE 802.3 at Power-over-Ethernet standards (PoE). Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing powerKey
Features: - 4 x PoE ports with 802.3 af and 802.3 at support- Rugged aluminum housing- 5 x Gigabit Ethernet with speeds up to 1000 Mbps- Plug-N-Play, no additional configuration needed-
Package includes: TSW100 switch, 65W AU PSU, and
quick start guideSpecifications:
Ethernet: -
LAN: 5 x LAN ports, 10/100/1000 Mbps-
PoE ports: 1 - 4-
PoE standards: 802.3 af and 802.3 at- PoE Max Power per Port (at
PSE): 30WPerformance

Specifications

: -
Bandwidth (Non-blocking): 10
Gbps- MAC address table size: 2K
entriesPower: -
Connector: 4 pin industrial DC power socket-
Input voltage range: 7-57 VDC- Power consumption (idle/max no
PoE/max): 2 W/9 W/129 WPhysical Interfaces (Ports, LEDS): -

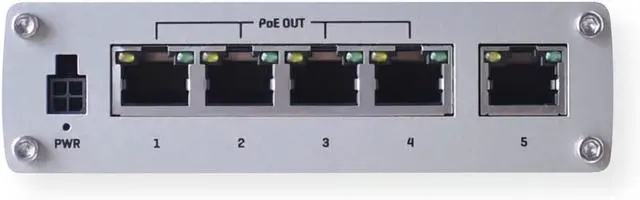

Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps-
Status LED's: 1 x Power LED, 10 x LAN status
LED's- Power: 1 x 4 pin DC connector-
Ground: 1 x
Grounding screwPhysical Specification: -
Casing material: Full aluminum housing-
What's in the box: TSW100, 65W AU PSU, QSG (Quick Start Guide) - Dimensions (W x H x
D): 4.5 x 1.25 x 3.7 inches
