EVERSECU 360W PoE Uninterruptible Power Supply - 12V/52V Dual Output for CCTV Camera & IP Camera & Access Control, 8-Port PoE + 8-CH 12V DC Power, Support Backup Battery & Multi-Protection
- Tailored for CCTV & POE IP Cameras: Specifically designed to power CCTV cameras, POE IP cameras, and access control systems. Dual output (12V 30A + 52V 2.3A) matches the power needs of surveillance devices, ensuring stable operation for 24/7 security monitoring.
- 8-Port POE & 8-CH 12V Expansion: Equipped with 8 POE ports (supports IEEE802.3af/at) for POE IP cameras, plus an optional 12V sub-board with 8 independent ports for CCTV cameras. 250m long-distance POE transmission fits outdoor/indoor surveillance layouts.
- 8-Layer Full Protection for Devices: Features overload, overheat, short circuit, overvoltage, and battery over-discharge protection. Each 12V port has PTC protection, shielding valuable surveillance equipment from electrical damage.
- Stable Performance for 24/7 Use: 70% efficiency with low ripple/noise (3% of output voltage) to avoid interference with camera signals. Operates in -10~50 temperature range, reliable for long-term security monitoring.
- Easy Installation
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

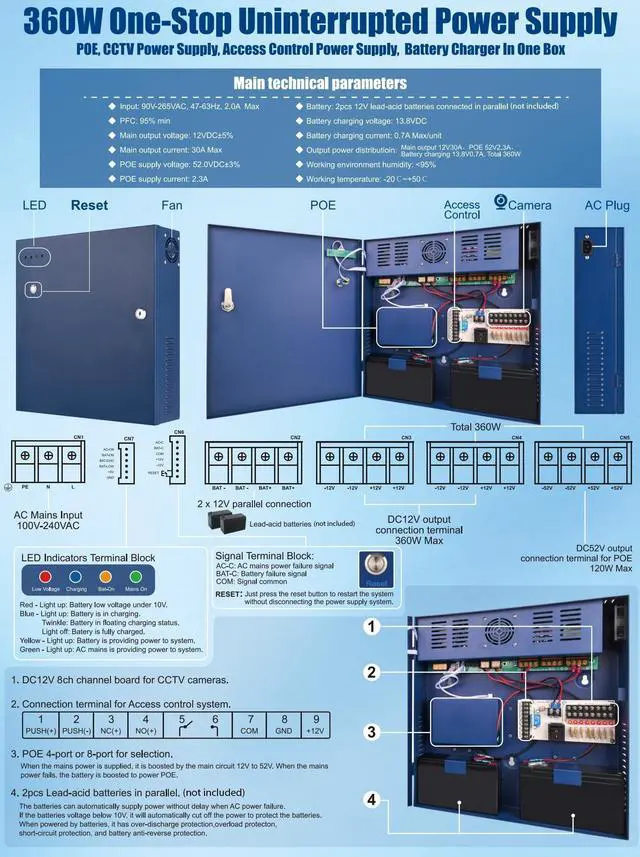

360W PoE Uninterruptible Power Supply for CCTV/PoE IP Cameras & Access ControlModel: CP360W-PoE8P-B ^^ All-in-one power solution with 24/7 uninterrupted protection 360W
High-Power Dual Output: DC12V (30A max) for CCTV/Access Control, DC52V ( 2.3A ) for PoE IP
Cameras Zero-Delay Backup: 2 parallel lead-acid batteries (CN2 terminal) for no downtime during power outages 8-Layer
Protection: Overvoltage/Short Circuit/Overtemperature/Battery Reverse Connection protection 8-Port
PoE Expansion: IEEE 802.3 af/at compliant, 250m long-distance transmission
Global Compatibility: 90-264VAC input (47-63Hz) works with all regional power gridsIntelligent Lead-Acid Battery
Management Supported Battery: 2 parallel lead-acid batteries (connected via CN2 terminal)
Multi-Stage Charging: Trickle Constant Current Floating charge (prevents overcharge/over-discharge) Low
Voltage Protection: Auto-cutoff when battery <10V (red LED alert) + reverse connection protectionKey Technical
PoE Output: 50.44 - 53.56VDC ( 2.3A Nominal, 2.5A Max) - for PoE IP Cameras Physical Dimensions &
Weight Dimensions (LWH): 370 340 95 mm ^^ 14.6 13.4 3.7 inches
Net Weight: 4.8 kg ^^ 10.58 lbs ( 10.6 lbs)
Operating Conditions MTBF: 10, 000 Hours (@25 / 77F, Full Load)
Operating Temperature: -10 ~ 50 ^^ 14F ~ 122FLED Status
Indicators Green (AC_ON): AC power active
Yellow (BAT_ON): Battery powering system (AC disconnected)
Blue (BAT_CHG): Solid=Constant charging ^^ Flashing=Floating charge ^^ Off=Fully charged Red (Low
Battery): Battery <10V or disconnectedOptional Expansion & Easy Installation
PoE Module: 8100Mbps PoE ports + 2100Mbps uplink RJ45 (30W max/port, VLAN/Extend modes) 12V
Sub-Board: 8Camera ports (3A PTC) + Access Control terminals (0-45s unlock delay)
Input: IEC 320 C13 plug / HB 9.5 mm terminals ^^
Output: HB 8.25 mm (12V) + CN5 (PoE) Reliability & Compliance Safety & Compliance: RoHS Compliant ^^ Flame-retardant housing ^^ Insulation Resistance 10M ^^ Dielectric Strength 1.5KV dc (1min)
Compact Design: 14.6" 13.4" 3.7" ( 10.6 lbs) ^^ Ideal for 24/7 surveillance & access control systems
High-Power Dual Output: DC12V (30A max) for CCTV/Access Control, DC52V ( 2.3A ) for PoE IP
Cameras Zero-Delay Backup: 2 parallel lead-acid batteries (CN2 terminal) for no downtime during power outages 8-Layer
Protection: Overvoltage/Short Circuit/Overtemperature/Battery Reverse Connection protection 8-Port
PoE Expansion: IEEE 802.3 af/at compliant, 250m long-distance transmission
Global Compatibility: 90-264VAC input (47-63Hz) works with all regional power gridsIntelligent Lead-Acid Battery
Management Supported Battery: 2 parallel lead-acid batteries (connected via CN2 terminal)
Multi-Stage Charging: Trickle Constant Current Floating charge (prevents overcharge/over-discharge) Low
Voltage Protection: Auto-cutoff when battery <10V (red LED alert) + reverse connection protectionKey Technical
Specifications
InputSpecifications
Input Voltage: 90-264VAC (115/230VAC Nominal) ^^ Works with global power grids (47-63Hz) OutputSpecifications
DC12V Output: 11.4 - 12.6VDC (30A Nominal, 32A Max) - for CCTV/Access Control systems DC52VPoE Output: 50.44 - 53.56VDC ( 2.3A Nominal, 2.5A Max) - for PoE IP Cameras Physical Dimensions &
Weight Dimensions (LWH): 370 340 95 mm ^^ 14.6 13.4 3.7 inches
Net Weight: 4.8 kg ^^ 10.58 lbs ( 10.6 lbs)
Operating Conditions MTBF: 10, 000 Hours (@25 / 77F, Full Load)
Operating Temperature: -10 ~ 50 ^^ 14F ~ 122FLED Status
Indicators Green (AC_ON): AC power active
Yellow (BAT_ON): Battery powering system (AC disconnected)
Blue (BAT_CHG): Solid=Constant charging ^^ Flashing=Floating charge ^^ Off=Fully charged Red (Low
Battery): Battery <10V or disconnectedOptional Expansion & Easy Installation
PoE Module: 8100Mbps PoE ports + 2100Mbps uplink RJ45 (30W max/port, VLAN/Extend modes) 12V
Sub-Board: 8Camera ports (3A PTC) + Access Control terminals (0-45s unlock delay)
Input: IEC 320 C13 plug / HB 9.5 mm terminals ^^
Output: HB 8.25 mm (12V) + CN5 (PoE) Reliability & Compliance Safety & Compliance: RoHS Compliant ^^ Flame-retardant housing ^^ Insulation Resistance 10M ^^ Dielectric Strength 1.5KV dc (1min)
Compact Design: 14.6" 13.4" 3.7" ( 10.6 lbs) ^^ Ideal for 24/7 surveillance & access control systems
