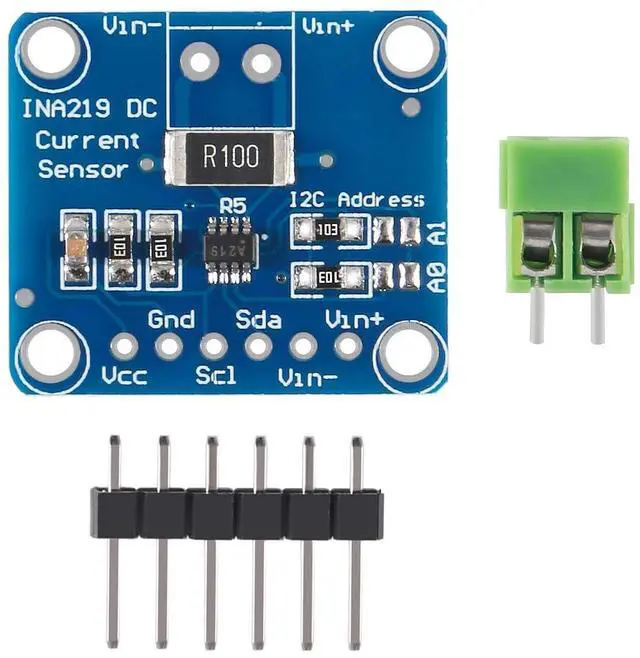

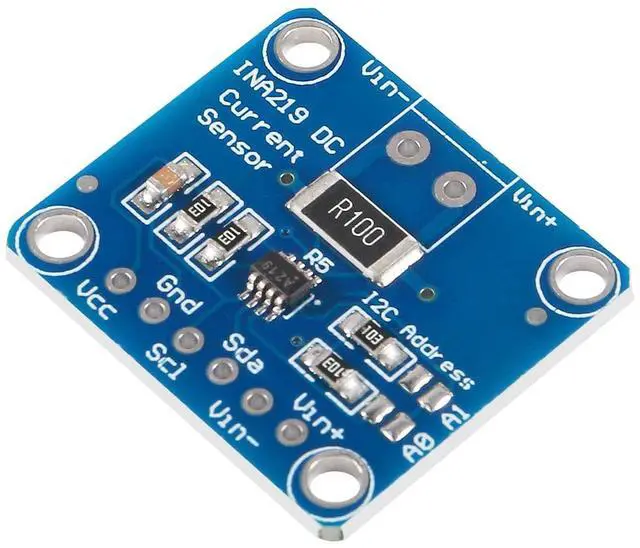

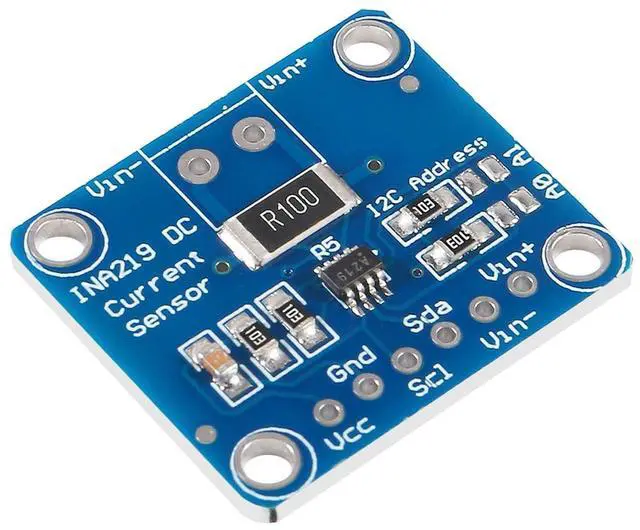

ACEIRMC INA219 I2C Bi-Directional DC Current Power Supply Sensor Breakout Module Compatible with Arduino Raspberry Pi (10pcs)
- INA219 I2C IIC Bi-Directional DC Current Power Supply Sensor Breakout Module Power Monitoring Senso
- Low power : 350 a (typical)
- Single-supply operation: 1.8 v to 3.6 v
- The high-precision products combine the advantages of 12-bit resolution. This module can be sensed bus voltage range is 0 V to +26 V.
- Used for I2C port zero drift / bidirectional current / power monitoring sensor module
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description: NA21 can be achieved within the maximum error accuracy 85, temperature range from -40 to + 1%, the maximum offset is 100 uV. The high-precision products combine the advantages of 12-bit resolution. This module can be sensed bus voltage range is 0 V to +26 V.
Footprint: SOT23Working
Voltage 3~5VSize: 25.5 * 22.3 mmUsed for I2C port zero drift / bidirectional current / power monitoring sensor modulePackage
Included: 10 * INA219 Bi-directional DC Current Power Supply Sensor Module
Footprint: SOT23Working
Voltage 3~5VSize: 25.5 * 22.3 mmUsed for I2C port zero drift / bidirectional current / power monitoring sensor modulePackage
Included: 10 * INA219 Bi-directional DC Current Power Supply Sensor Module
