EC Buying Micro:bit V2.2 Development Board Robot Kit for Python Programmable Micro USB
- Auditory Interaction Revolution: Comes with "Mouth" and "Ears" : the biggest highlight of V2.2 is the built-in speaker and microphone. Students can directly make the micro: bit sing, speak, or create "voice controlled lights," "clap counters," and "noise detectors" without connecting any external wires or headphones. The LED light next to the microphone can also visually display the recording status, protecting privacy.
- The explosion of computing power and AI potential (performance improvement by 4-8 times) : Thanks to the Cortex-M4 processor and 128KB RAM (8 times that of V1 version), V2.2 not only runs code more smoothly, but also handles complex computing tasks. This enables it to run micro machine learning models, such as training it to recognize specific speech commands (such as "turn on the light") or gesture actions, leading students into the AI era.
- The "invisible" third button: The gold logo on the front of the touch logo is no longer just a decoration, but a capacitive
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

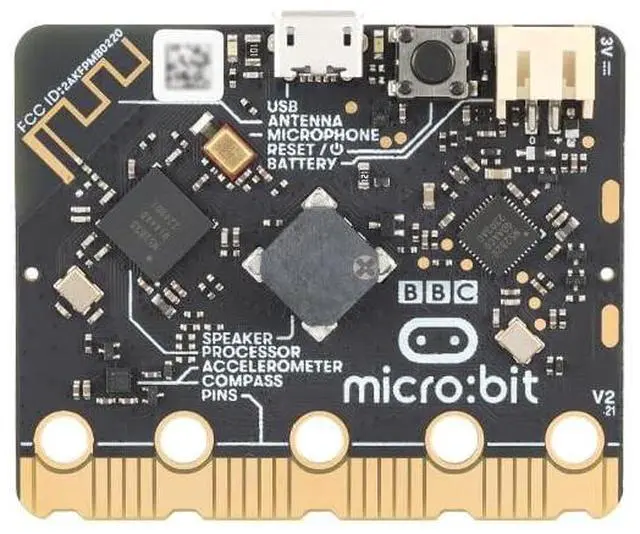

Main application processor: nRF52833 (Arm Cortex-M4 32-bit
FPU)Main frequency: 64
MHzStorage (Flash): 512 KB (for storing user programs and firmware)
Memory (RAM): 128 KB (running memory)
Interface processor: nRF52820 (unique to
V 2.2 )Button: 2 user programmable buttons (A/B)+1 reset/power button (back)
Touch sensing: The golden logo on the front is a capacitive touch sensorMicrophone: Built in MEMS microphone (with LED working indicator light)
LED matrix: 5 x 5 red LED matrix (supports 255 level brightness adjustment, can also serve as a light sensor)Speaker: Built in magnetic speaker (MLT-8530), can produce sound without external connectionMotion
Sensor: ST LSM303 or compatible model (3-axis accelerometer+3-axis magnetometer/compass)Environmental sensing: temperature (built-in main control chip), light (reverse sensing of LED matrix)
Bluetooth: Bluetooth 5.1 /BLE (supports Bluetooth low power consumption)
Radio: 2.4GH z dedicated frequency band (used for network communication between micro: bits)Gold
finger interface: 25 pin edge interface (including 3 large hole GPIO, PWM, I2C, SPI, UART)Power
supply mode: Micro USB (5V), JST-PH battery interface (3V), 3V

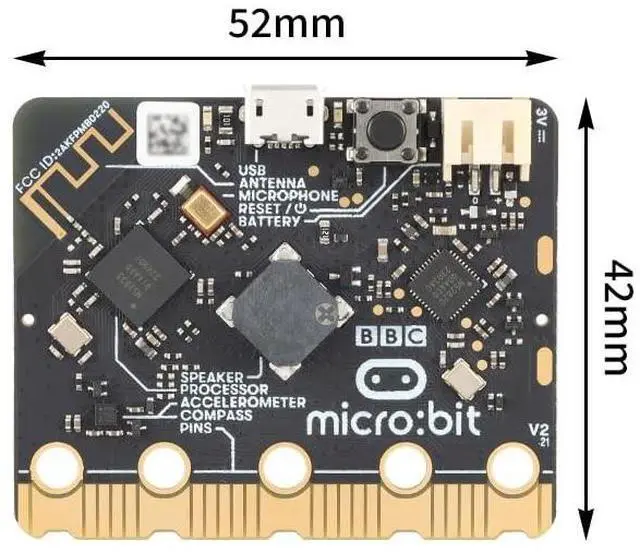

pin power supplyOutput capability: allows up to 200mA of current to be provided to peripheralsSize/Weight: 52mm x 42mm x 11.7 mm/Approximately 8g
FPU)Main frequency: 64
MHzStorage (Flash): 512 KB (for storing user programs and firmware)
Memory (RAM): 128 KB (running memory)
Interface processor: nRF52820 (unique to
V 2.2 )Button: 2 user programmable buttons (A/B)+1 reset/power button (back)
Touch sensing: The golden logo on the front is a capacitive touch sensorMicrophone: Built in MEMS microphone (with LED working indicator light)
LED matrix: 5 x 5 red LED matrix (supports 255 level brightness adjustment, can also serve as a light sensor)Speaker: Built in magnetic speaker (MLT-8530), can produce sound without external connectionMotion
Sensor: ST LSM303 or compatible model (3-axis accelerometer+3-axis magnetometer/compass)Environmental sensing: temperature (built-in main control chip), light (reverse sensing of LED matrix)
Bluetooth: Bluetooth 5.1 /BLE (supports Bluetooth low power consumption)
Radio: 2.4GH z dedicated frequency band (used for network communication between micro: bits)Gold
finger interface: 25 pin edge interface (including 3 large hole GPIO, PWM, I2C, SPI, UART)Power
supply mode: Micro USB (5V), JST-PH battery interface (3V), 3V
pin power supplyOutput capability: allows up to 200mA of current to be provided to peripheralsSize/Weight: 52mm x 42mm x 11.7 mm/Approximately 8g
