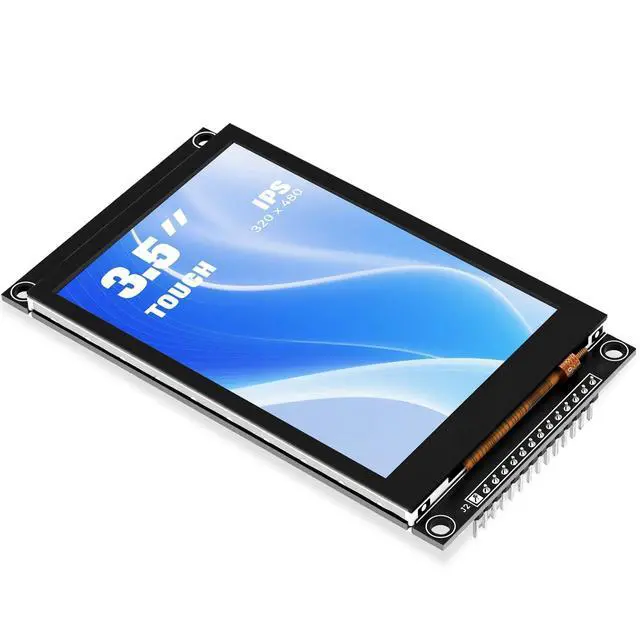

Ransanx 1PCS LCD Display 3.5 Inch 320x480 TN Capacitive Touch Screen Esp32 Display Module SPI Serial ST7796S Driver for Ar duino R3/Mega2560 (Black)
- LCD display parameters: 3.5-inch color screen, upgraded to use IPS full-viewing panel, resolution 320x480, 65K colors, rich display colors, brightness 300 (cd/m), display interface: 4-Line SPI
- ESP32 display module: using ST7796S driver, onboard level conversion circuit, compatible with 5V and 3.3V MCU; using four-wire SPI serial bus, saving I/O pins

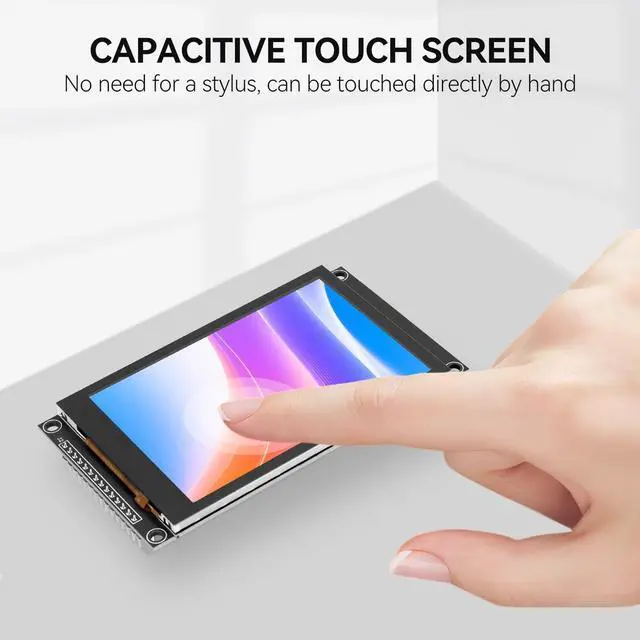

- Advantages: Newly upgraded to capacitive touch for Ar duino screen module. Compared with resistive screen, it is more convenient to use and more accurate to touch

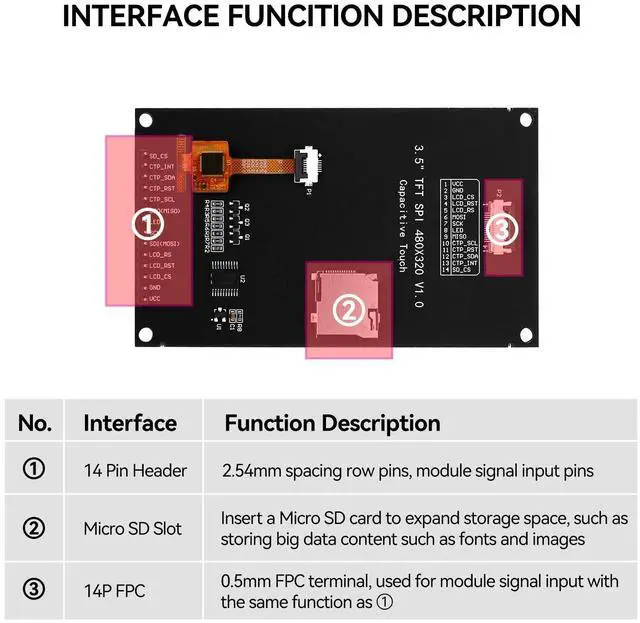

- Humanized design: The module input supports 2.54-pin interface and FPC expansion interface, equipped with Micro TF card slot for easy storage and expansion; provides rich example learning programs (ESP32/STM32/Ar duino R3 & Mage2560/C51/CH32), provides underlying driver technology support, online update information, and supports long-term stable work
- After-sales service: If you have any after-sales questions about the product, please contact us, we are online 24 hours
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

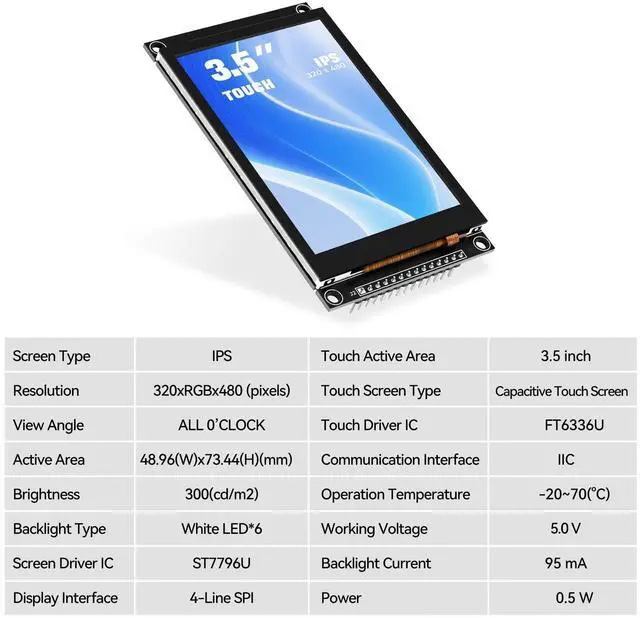

Screen Size 3.5 inchScreen TypeIPSResolution320xRGBx480 (pixels) Active Area (AA area) 48.96 (W) x 73.44 (H) (mm) Number of Colors (Max) 16.7MD river ICST7796UDisplay Interface4-Line SPIPixel Size 0.153 (H) x 0.153 (mm) View AngleALL 0CLOCKBrightness (TYP) 300(cd/m2)Backlight TypeWhite LED*6Operation Temperature-10~50()Storage Temperature-20~60()Touch Screen ParametersTouch Active Area 3.5 inchTouch Screen TypeCapacitive Touch ScreenTouch Screen Resolution320x480 (pixels) Driver ICFT6336UTouch Screen Visual Area 49.56 (w) x 74.04 (H) (mm) Communication InterfaceIICOperation Temperature-20~70()Storage Temperature-30~80()Electrical ParametersWorking Voltage 5.0 VBacklight Current95 mAPower 0.5 WInterface14P 2.54 mm spacing Header and 0.5 mm spacing FPC seatSize Parameters 55.5 (W) x 98.0 (H) x 12.98 (D) (mm) (including Pin Header) Package include1 x 3.5 touch screen1 x FPC cables1 x Plastic protective box
