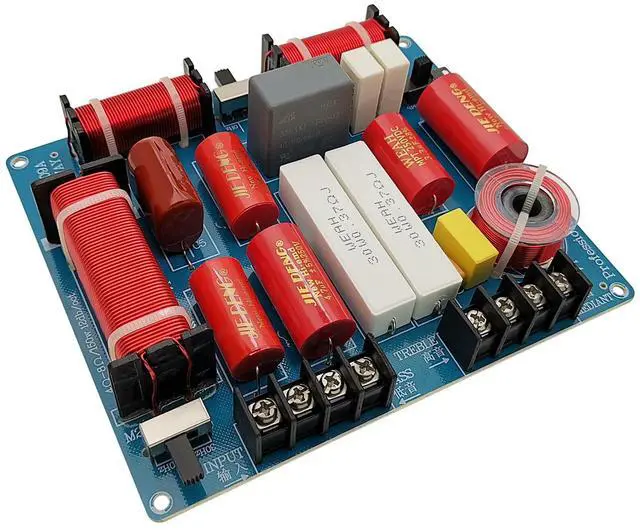

HiQltyla 3 Way Speaker Crossover, WEAH-3509A 350W Adjustable Passive Crossover for Car Home Audio 4 to 8 Ohm Bass Mediant Tweeter
- Convenient InstallationConvenient Screw Terminals, sturdy & reliable, can be easy to install with your car / home audio, stay away from the hassle of welding

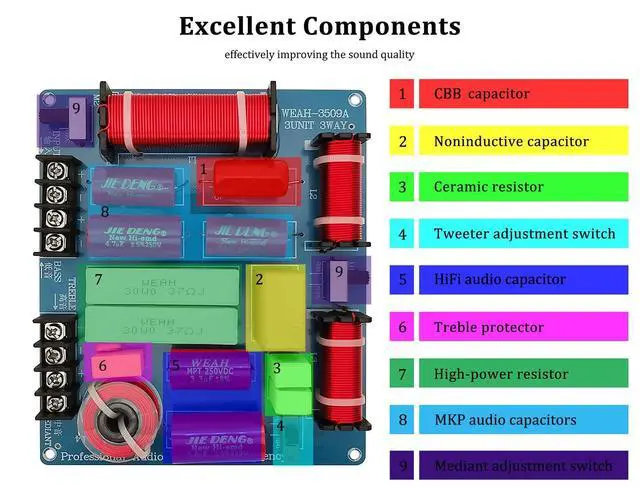

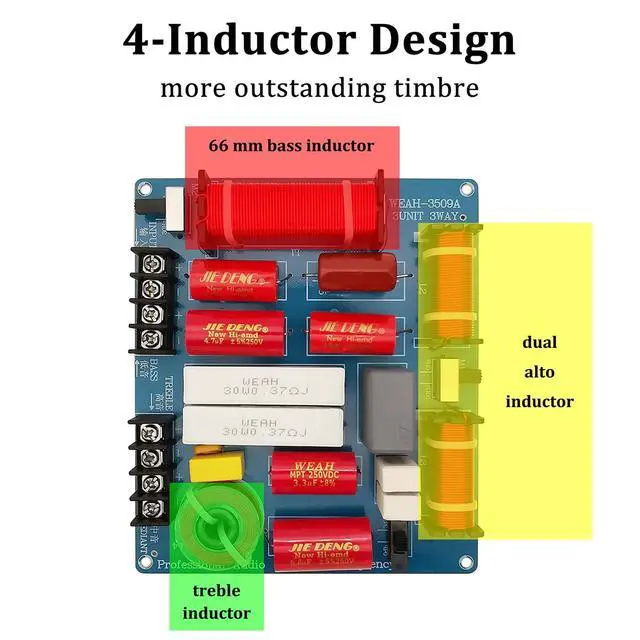

- Excellent Components66mm bass inductor, dual alto inductor, treble inductor, CBB capacitor, dual non-inductive capacitor, ceramic resistor, dual mediant adjustable switch, tweeter adjustable switch, professional audio capacitor, tweeter protector, high power resistor, HiFi capacitor

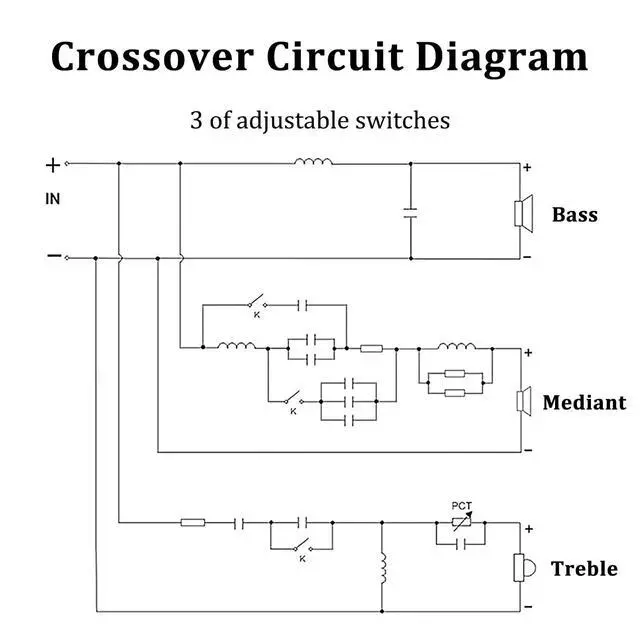

- Electrical Parameters350 watts peak, suitable for 4-8 ohm impedance, Frequency: 40Hz-22kHz, Frequency division point: Bass - Mediant (780Hz / 850Hz / 900Hz) - Tweeter (5500Hz / 5800Hz)
- Compatible withBy replacing or installing our speaker crossover, you can greatly improve the sound quality of your car or home audio system, allowing you to enjoy high-quality music.
- AdvantagesWEAH-3509A have 350 watts peak, and two more mediant adjustable switches, almost suitable for all speakers, having better sound quality performance
- Package Includes1
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
3 Way Crossover for Car / Home
Audio systemModel Number: WEAH-3509AApplicable
Speaker Impedance: 4 to 8
Support Speaker Power: 350W MaxCompatible with most brands and models of car / home audioSpecifications:
Material: ABS
circuit boardColor:
BlueVoltage: 12VOut
Power: 350WFrequency
Range: 40Hz-22kHzFrequency
division point: Bass - Mediant (780Hz / 850Hz / 900Hz) - Tweeter (5500Hz / 5800Hz)Support
Impedance: 4 to 8

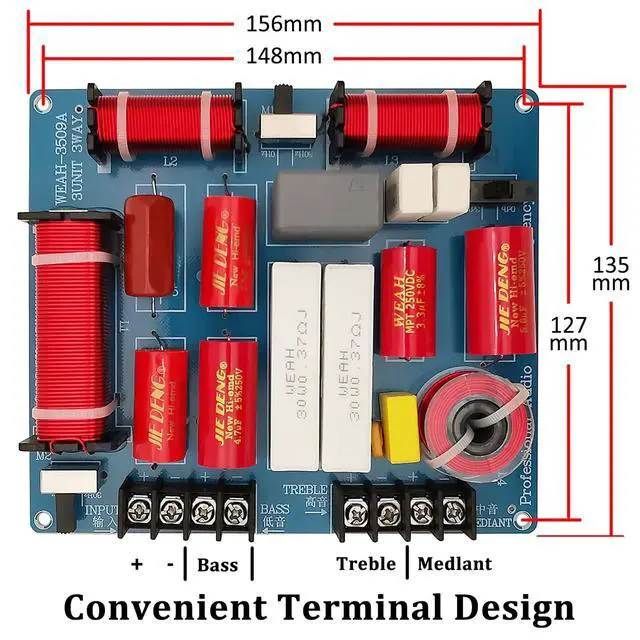

Mount Hole Size: 4mmMount
Hole Distance: 148 x 127mmItem
Dimensions: 6.1" x 1.4" x 5.3" (156 x 35 x 135 mm)
Item Weight: 14.01 oz / 400gShiping
Weight: 16.2 oz/459gPackage
Includes: 1x 3-Way Speaker Crossover
Audio systemModel Number: WEAH-3509AApplicable
Speaker Impedance: 4 to 8
Support Speaker Power: 350W MaxCompatible with most brands and models of car / home audioSpecifications:
Material: ABS
circuit boardColor:
BlueVoltage: 12VOut
Power: 350WFrequency
Range: 40Hz-22kHzFrequency
division point: Bass - Mediant (780Hz / 850Hz / 900Hz) - Tweeter (5500Hz / 5800Hz)Support
Impedance: 4 to 8
Mount Hole Size: 4mmMount
Hole Distance: 148 x 127mmItem
Dimensions: 6.1" x 1.4" x 5.3" (156 x 35 x 135 mm)
Item Weight: 14.01 oz / 400gShiping
Weight: 16.2 oz/459gPackage
Includes: 1x 3-Way Speaker Crossover
