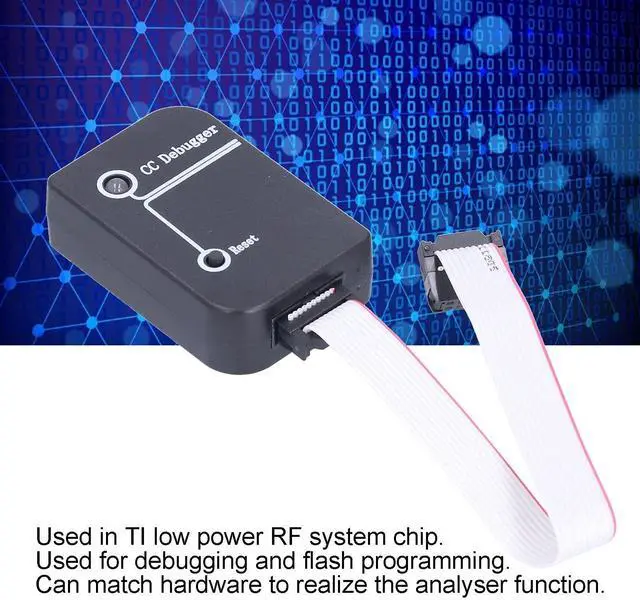

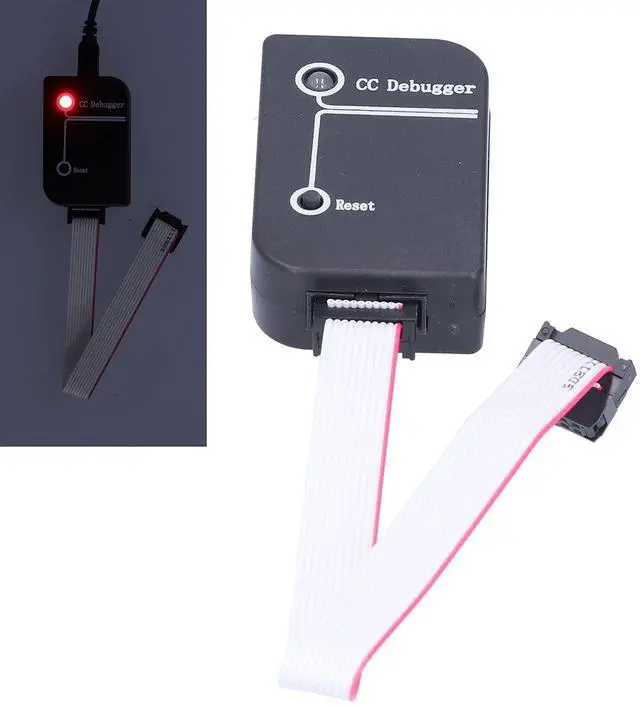

CC Debugger, CC Debugger and Programmer Downloader for RF System, USB Emulator Module Accessory Set Kit for Zigbee(CC2531) Zigbee Module Can Debugger cc debugger usb cable debugger
- Function: As a small debugger and programmer, CC debugger can be used on TI low power RF system chips.
- Compatibility: The CC debugger can control selected devices of for SmartRF Studio, such as CC1120, CC1121, CC1125, CC1175 and so on.
- Widely Used: The CC debugger can work with for IAR Embedded Workbench for 8051 (7.51A or higher) for debugging and SmartRF Flash Programmer for flash memory programming.

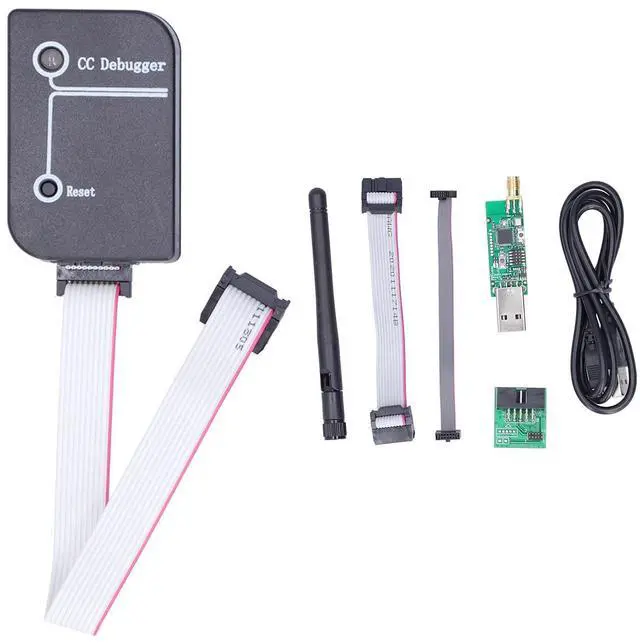

- Package Includes: CC Debugger+Sniffer Board+Antenna+Programming Line+Adapter Board+USB Cable.
- Premium Quality: You can match it with hardware to realize analyser function, the CC debugger adopts ABS + printed circuit board material, and the sniffer board with shell is waterproof and anti static.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification: Item
Type: CC
DebuggerMaterial: ABS +
Printed Circuit BoardFunction: Used for TI low power RF system chip.

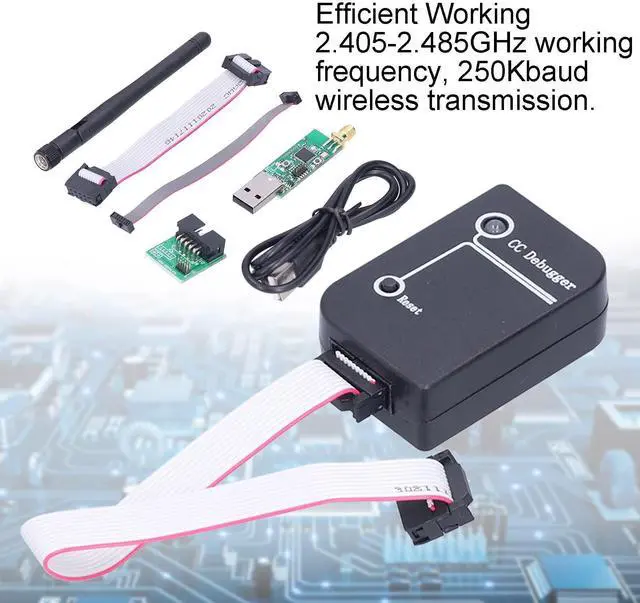

Working Frequency: 2.405
- 2.485GH zRate: 250KbaudPower
Consumption: <20mA (receiving); <25mA (transmitting) The Chips that the Programmer Can Program and
Simulate are: CC1110, CC1111, CC2430, CC2431, CC2510, CC2511, CC2530, CC2531, CC2533, CC2540, CC2541, CC2543, CC2544, CC2545The Same Device can be Controlled from for SmartRF Studio. Can Control the Following Transceivers from for
SmartRF Studio: CC1120, CC1121, CC1125, CC1175, CC1100, CC1101, CC110L, CC113L, CC115L, CC2500, CC2520Can Also be Used to Program for
PurePath Devices: CC8520, CC8521, CC8530, CC8531Working: Can work with 7.51A or higher version of for IAR EW8051.

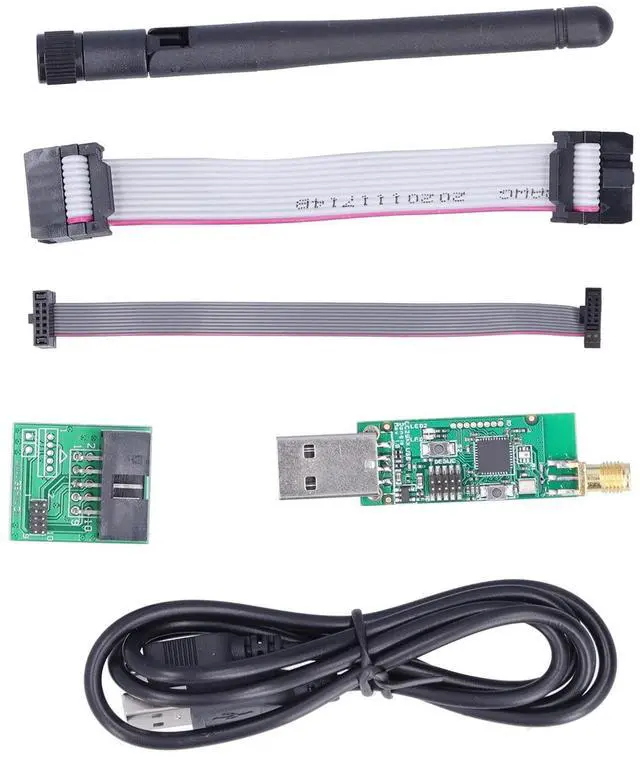

Package List: 1 x CC Debugger1 x Sniffer Board1 x Antenna3 x Programming Line1 x Adapter Board1 x
USB CableNote: Do not place the product in an environment that is too corrosive, humid and high temperature.
Type: CC
DebuggerMaterial: ABS +
Printed Circuit BoardFunction: Used for TI low power RF system chip.
Working Frequency: 2.405
- 2.485GH zRate: 250KbaudPower
Consumption: <20mA (receiving); <25mA (transmitting) The Chips that the Programmer Can Program and
Simulate are: CC1110, CC1111, CC2430, CC2431, CC2510, CC2511, CC2530, CC2531, CC2533, CC2540, CC2541, CC2543, CC2544, CC2545The Same Device can be Controlled from for SmartRF Studio. Can Control the Following Transceivers from for
SmartRF Studio: CC1120, CC1121, CC1125, CC1175, CC1100, CC1101, CC110L, CC113L, CC115L, CC2500, CC2520Can Also be Used to Program for
PurePath Devices: CC8520, CC8521, CC8530, CC8531Working: Can work with 7.51A or higher version of for IAR EW8051.
Package List: 1 x CC Debugger1 x Sniffer Board1 x Antenna3 x Programming Line1 x Adapter Board1 x
USB CableNote: Do not place the product in an environment that is too corrosive, humid and high temperature.
