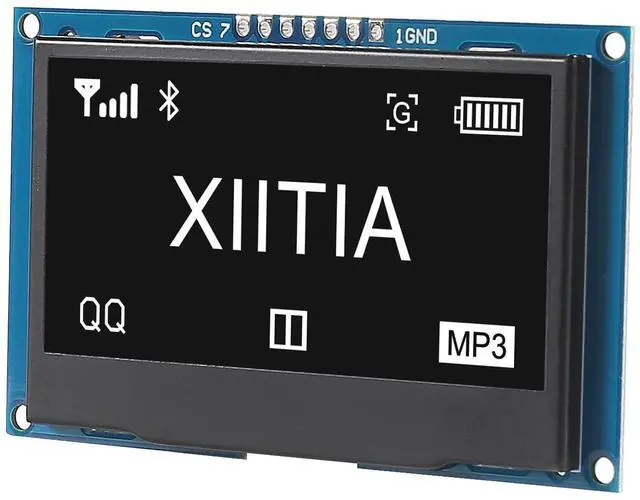

XIITIA 2pcs 7 Pin 2.42" SSD1309 128x64 OLED Display Module 2.42 Inch OLED LCD Display Module IIC I2C SPI(White Light)
- Diagonal Screen Size: 2.42 inch
- Driver IC: SSD1309
- 2.42 inch OLED display module of 128x64 resolution in which the emissive electroluminescent layer is a film of organic compound that emits light in response to an electric current.

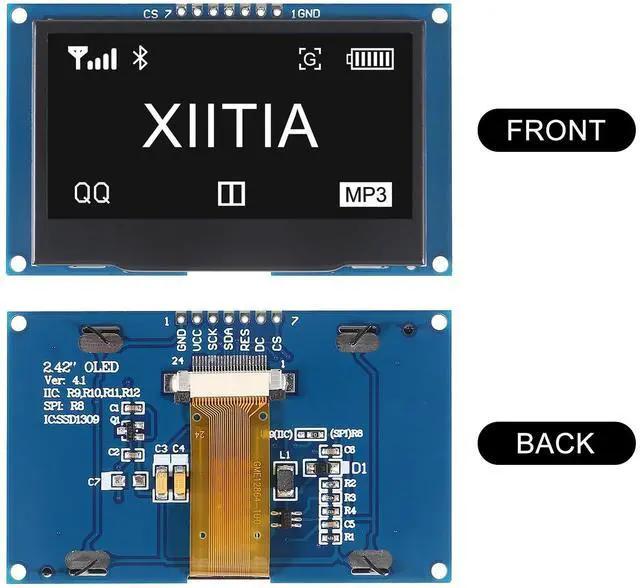

- SPI communication or I2C communication can be switched by configuring three resistors R3 R4 R5.
- For IIC communication, it is necessary to move the resistor on R4 to R3, and R5 is soldered with 0 ohm resistor.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
: DriverChip: SSD1309Support interface IIC/SPI
Resolution 12864Display Size: 2.42 inchesDisplay
Color: white/blue/yellow/greenModule

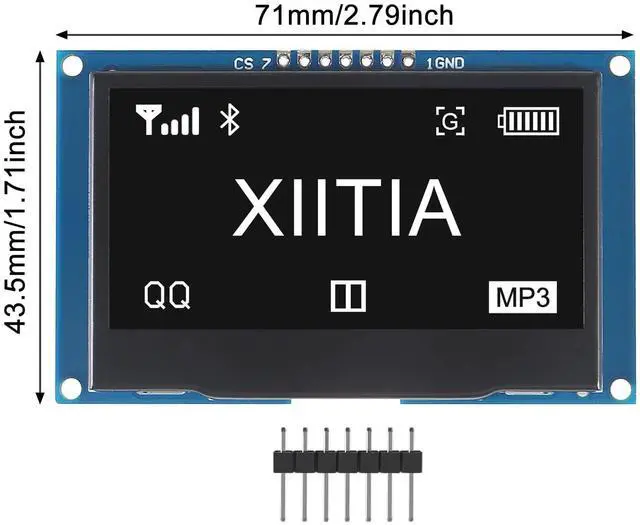

Size: 7143.5 (mm)
Glass Size: 60.537.
00 (mm) Display Area: 55.0227.
49 (mm) Drive Voltage: 3.3 -5VNumber of
Pins: 7PIN
Viewing Angle >160Working
Temperature: -40~70Storage
Temperature: -40~80SPI

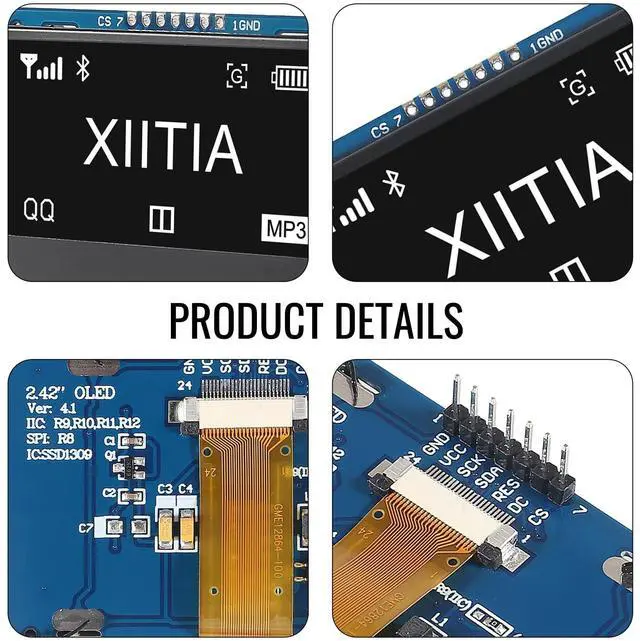

Interface Definition:
GND: Power
GroundVDD: Power Supply Positive ( 2.8 - 5.5V )SCK: Clock
LineSDA: Data
LineRES: Reset
LineDC:
Data/CommandCS: Chip

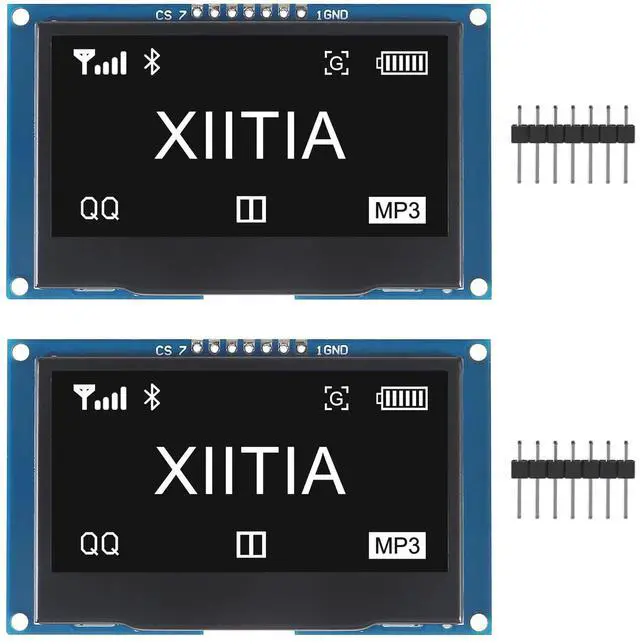

SelectPackage Included: 2 x Display Module
