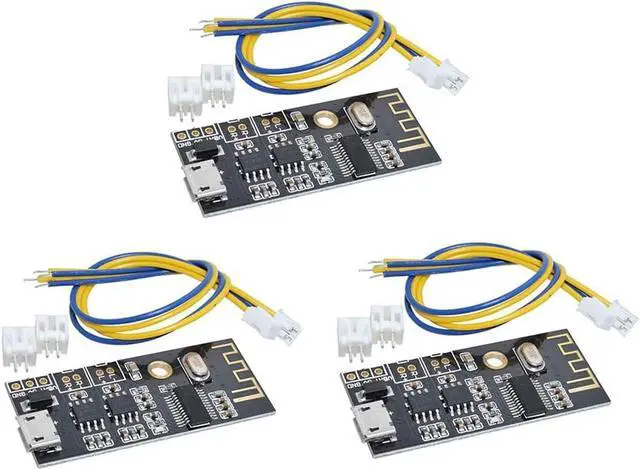

3pcs M38 Wireless Bluetooth MP3 Audio Receiver Board BLT 4.2 mp3 Lossless decoder Bluetooth 4.2 Audio Receiver Board Wireless Stereo Sound Module
Limited time offer, ends 11/14 By EnYZME

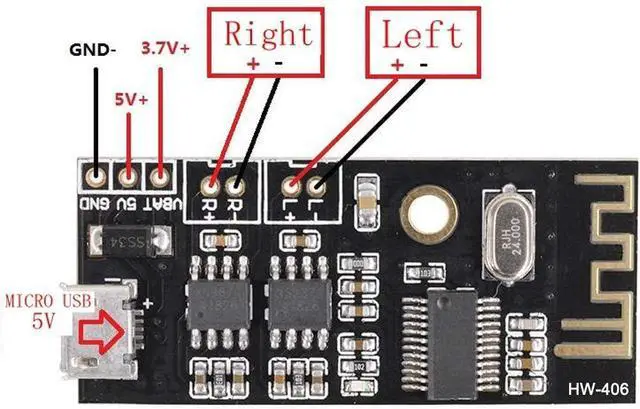

- Power supply: You can directly use the MICRO USB Android cable 5V for direct power supply, or you can also connect 5V power supply or 3.7V lithium battery (as shown below). Note that the 5V and 3.7V power supply interfaces are different. The 5V voltage is connected to 5V and GND, and the 3.7V lithium battery is connected to VBAT and GND. The maximum operating current is 5V2A. It is recommended to use a regulated 5V2A power supply for better sound quality.
- Support USB sound card, free drive (plug and play). Connect the module to the computer with a USB cable, and the computer can play music through the module amplifier output. Audio output: output left and right stereo audio signals, which can be connected to two 2-8 ohm, 3-5W speakers, and 4 Euro 5W speakers.
- This product has its own dual 5W power amplifier circuit, and must not be connected to another amplifier! The outputs of the two amplifiers may not be connected in parallel or the negative poles may be connected together, otherwis
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Function Description:
Bluetooth V 4.2 version, support Bluetooth automatic connection technology, support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo dual channel output.

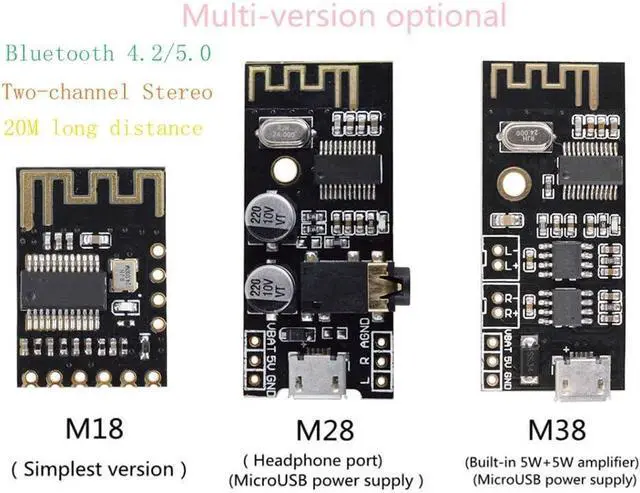

After the module is powered on, the mobile phone searches for the Bluetooth name M18/M28/M38, and can play music after connecting Bluetooth.
Module blue indicator light:
When the Bluetooth is not connected, the indicator light flashes quickly;
When the Bluetooth connection is on, the indicator light is always on;
When the Bluetooth is playing, the indicator light flashes slowly.
Bluetooth V 4.2 version, support Bluetooth automatic connection technology, support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo dual channel output.
After the module is powered on, the mobile phone searches for the Bluetooth name M18/M28/M38, and can play music after connecting Bluetooth.
Module blue indicator light:
When the Bluetooth is not connected, the indicator light flashes quickly;
When the Bluetooth connection is on, the indicator light is always on;
When the Bluetooth is playing, the indicator light flashes slowly.
