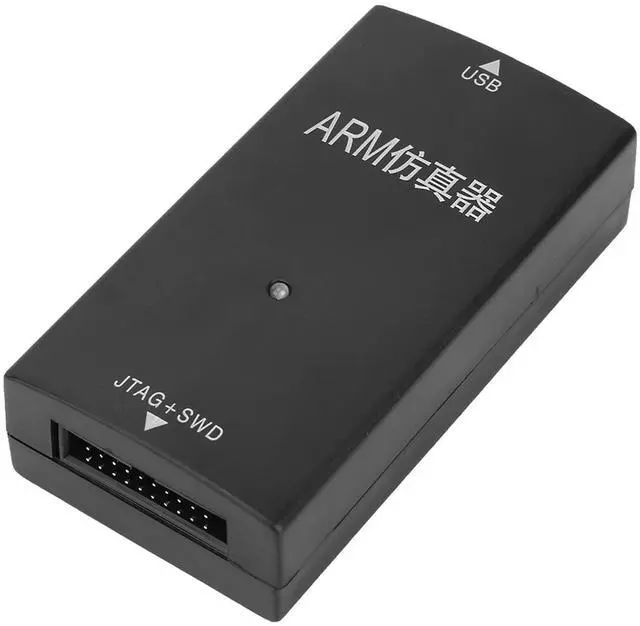

JTLB V8 Debugger Arm CorteX M4/M0 Emulator Downloader 14 * 10 * 4 Jtag Programmer Arm Usb Jtag

1. no external power supply is needed, via USB; 2. Can monitor all JTAG signals, automatically adapt to target board voltage; 3. Include USB cable and 20-pins flat cable; 4. With RDI Flash DLL can be achieved in RDI under FLASH programming, programming; 5. With GDB Server, can be achieved in the GDB debugging environment.
Spec:

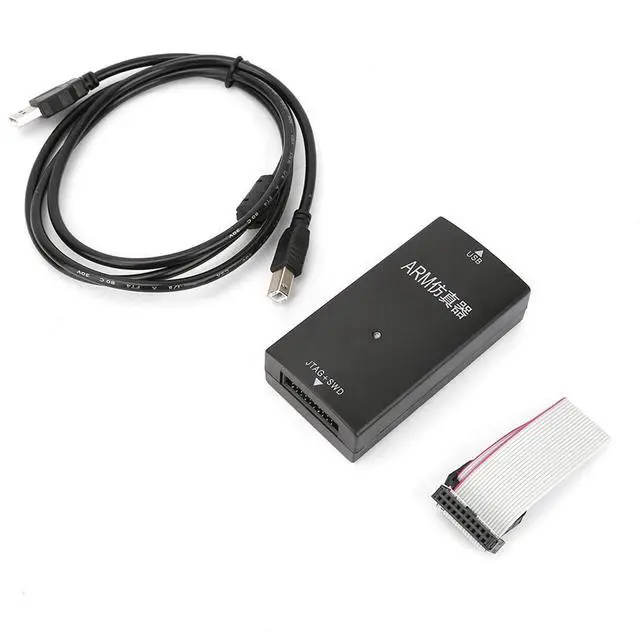

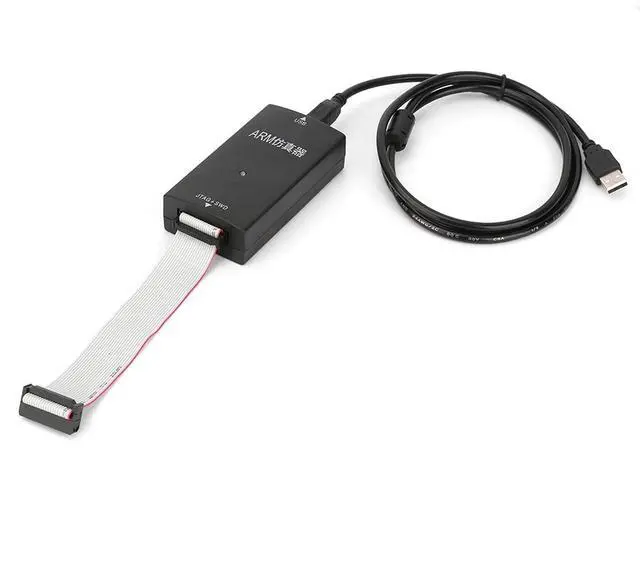

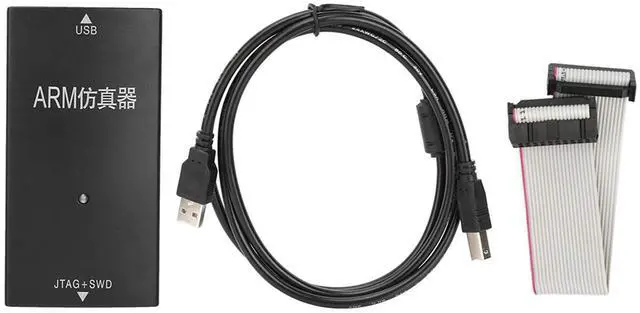

Features: * USB 2.0 interface; * Support ARM7 / 9/11 (including thumb mode), Cortex-M0 / M1 / M3 / M4 kernel* Support Serial Wire Debug (SWD); * Support Serial Wire Viewer (SWV); * Download speed up to 720kb / s; * DCC mode up to 800 kb / s; * Integration with IAR Workbench, Keill, ADs, RVDS; * no external power supply is needed, via USB; * JTAG maximum speed of 12MHZ; * Automatic kernel recognition; * Automatic speed recognition; * Supports adaptive watches; * Can monitor all JTAG signals, automatically adapt to target board voltage; * Multi-core debugging support; * Plug and play; * Include 20-PINS standard JTAG connector; * Support 1.2V -5V target board voltage; * External power supply 5V 300mA (through the command to control whether output); * External power supply to provide 3.3V 300mA (via J3 jumper); * Include USB cable and 20-pins flat cable; * Random distribution of J-Mem software that supports the observation and modification of memory; * Support for embedded cache trace Buffer (ETB) * Optional online programming, FLASH
programming software: J-Flash; * Plugin makes asuitable for any RDI RDI compatible debugger like ADS, Relview, IAR, etc.; * With RDI Flash DLL can be achieved in RDI under FLASH programming, programming; * With GDB Server, can be achieved in the GDB debugging environment.
Supported Operating Systems: for Microsoft Windows 2000for Microsoft Windows XPfor Microsoft Windows XP x64for Microsoft Windows 2003for Microsoft Windows 2003 x64for
