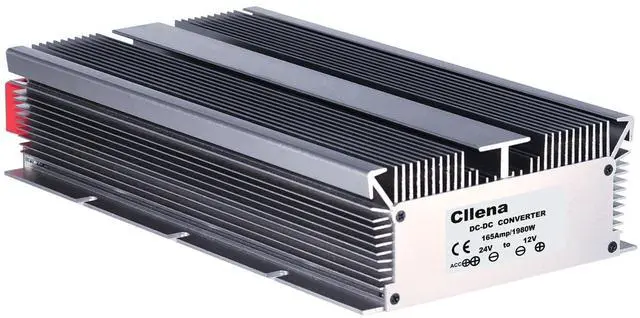

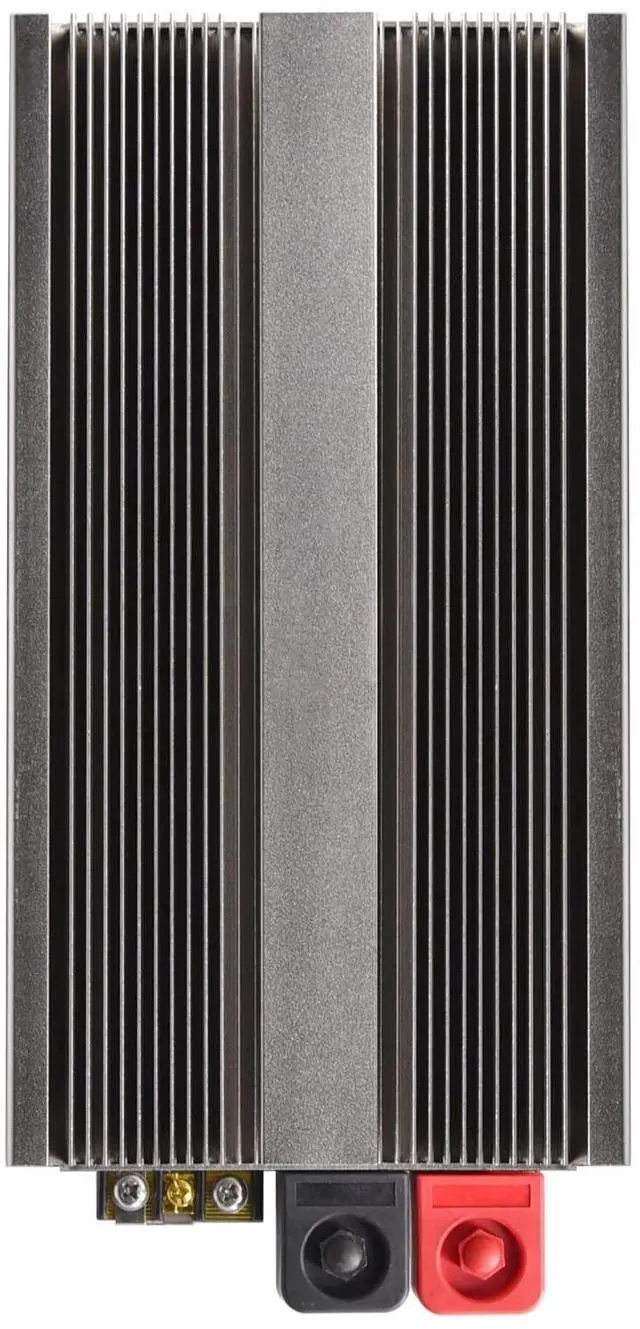

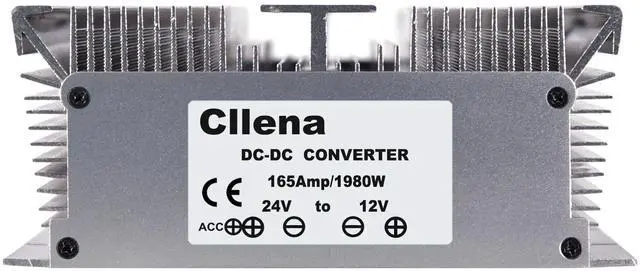

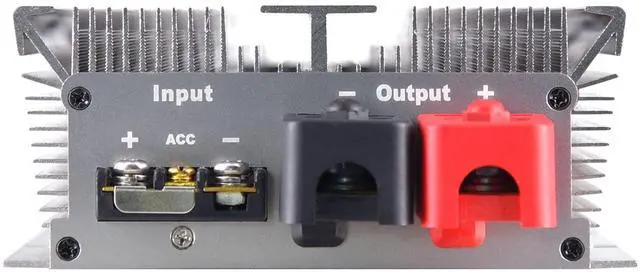

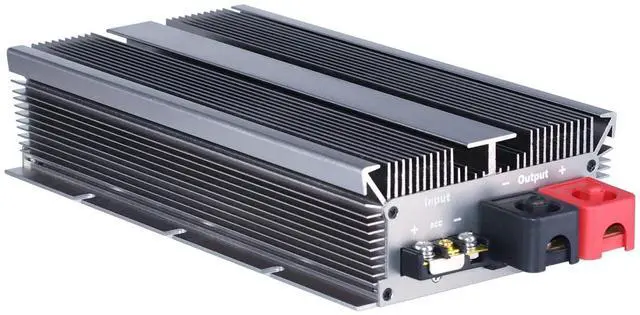

Cllena 24V to 12V Step Down Converter Voltage Regulator 165A 1980W Waterproof DC Buck Transformer Power Supply
- Input voltage range: DC 18-35V; Output voltage: DC 12V(non-adjustable); Output current: 165A; Output power 1980W.
- High conversion efficiency: Synchronization rectification technology-multiple intelligent protection function with high conversion efficiency and stability. The conversion efficiency may reach 95%.
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- Aluminum shell and silicone sealed design: Waterproof, Anti-shock, Anti-humidity and Dust-proof, more durable.
- Wide application: Large trucks, taxi radio, emu, car audio, LCD TV, advertising screen, LED strip lights, monitoring system, motor, electronic systems and DIY etc.
+
+
Overview
Specs
Reviews
b>Application: /b>br> 24V DC battery as input power to 12V DC appliances as output load.
br>br> b>Reminder: /b>br> * Keep good air convection. br> * Input power should be lead acid battery or lithium battery. br> * This converter cant charge the battery. br> * Please install correct fuse in input cable. br> * Dont connect Negative or GND to vehicle case or chassis. br> * Never connect the converter to a solar panel or wind turbine. That will burn the converter. br> * Be sure of the correct polarity of input and output connection, never reverse the polarity, or it burns the converter. br> * Please dont install any meters between converter to battery and converter to loads. br> * When in doubt, the larger current converter is always a better choice.
br>br> b>Specifications: /b>br>
Input Rated Voltage: 24V DCbr>
Input Voltage Range: 18-35V DCbr>
Output voltage: DC12V 165Abr>
Output Rated Power: 1980Wbr>
Efficiency: 97% (half load); 95% (full load) br>
No-load current: <0.1V br>
Ripple: 200mVp br>
Line Regulation: 0.2 % br>
Load Regulation: 0.2 % br>
Voltage Accuracy: 1.5 % br>
Enclosures: IP68 br>
Case Operating Temperature: -40~85C br>
Dimension: 300*195*90mm br>
Weight: 6kgbr>br>
b>Features: /b>br> 1. 100% full power and stable current output, non-isolated module. br>
2. Industry grade DC 24V to DC 12V step-down converter, efficiency up to 95%. br>
3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection. br>
4.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating. br>
5.
Certificates: CE/RoHS, 1 year warranty, lifetime up to 100, 000 hours. br>br>
br>br> b>Reminder: /b>br> * Keep good air convection. br> * Input power should be lead acid battery or lithium battery. br> * This converter cant charge the battery. br> * Please install correct fuse in input cable. br> * Dont connect Negative or GND to vehicle case or chassis. br> * Never connect the converter to a solar panel or wind turbine. That will burn the converter. br> * Be sure of the correct polarity of input and output connection, never reverse the polarity, or it burns the converter. br> * Please dont install any meters between converter to battery and converter to loads. br> * When in doubt, the larger current converter is always a better choice.
br>br> b>Specifications: /b>br>
Input Rated Voltage: 24V DCbr>
Input Voltage Range: 18-35V DCbr>
Output voltage: DC12V 165Abr>
Output Rated Power: 1980Wbr>
Efficiency: 97% (half load); 95% (full load) br>
No-load current: <0.1V br>
Ripple: 200mVp br>
Line Regulation: 0.2 % br>
Load Regulation: 0.2 % br>
Voltage Accuracy: 1.5 % br>
Enclosures: IP68 br>
Case Operating Temperature: -40~85C br>
Dimension: 300*195*90mm br>
Weight: 6kgbr>br>
b>Features: /b>br> 1. 100% full power and stable current output, non-isolated module. br>
2. Industry grade DC 24V to DC 12V step-down converter, efficiency up to 95%. br>
3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection. br>
4.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating. br>
5.
Certificates: CE/RoHS, 1 year warranty, lifetime up to 100, 000 hours. br>br>
