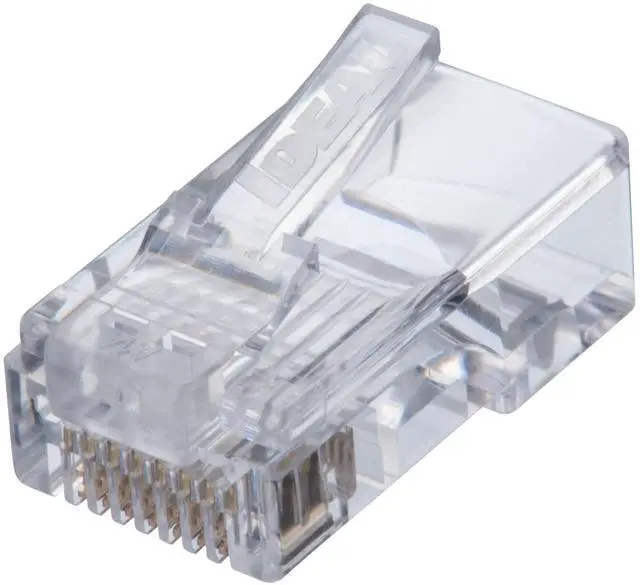

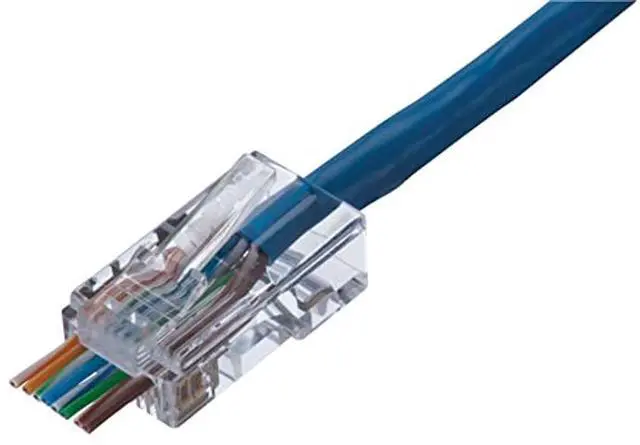

IDEAL INDUSTRIES INC. 85-372J 8P8C Single Piece Modular Plug, Feed-Thru Design RJ-45 Connector for CAT5e, Twisted Pair 100 MHz Cables, (100 Connectors, Jar)
- 8 position, 8 contact RJ-45 modular plug for CAT5e, 100 balanced twisted pair 250 MHz cables
- Three prong contact design for use with solid or stranded 23-24 AWG insulated copper conductors up to 0.041 in. in diameter accepts outer jacket cable diameters of up to .270 in.
- Flush cut of excess conductors minimzes inadvertent contact outside of the plug
- Crimp with IDEAL FT-45 30-495 crimp tool
- Single piece design 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

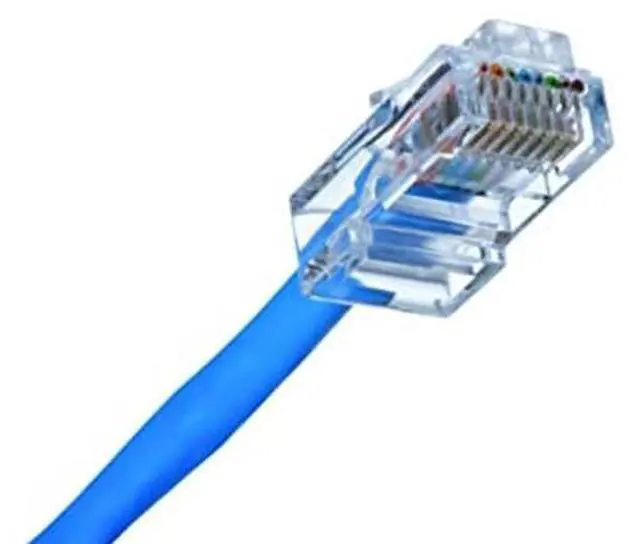

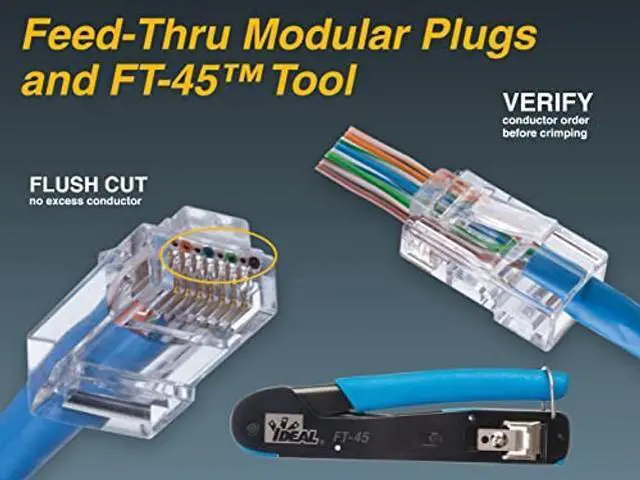

The NEW IDEAL Feed-Thru CAT5e 8P8C (eight position/eight contact) modular plug connector is the first feed-thru style connector and tool solution to offer a flush cut of the excess conductor to the face of the modular plug. A patent pending design enables conductors to be cut flush with the end face of the connector when used with the FT-45 tool (30-495). The flush cut eliminates inadvertent contact among adjacent conductors or with the mating jack. Conductor spacing is maintained for reliable performance in PoE and data applications.
