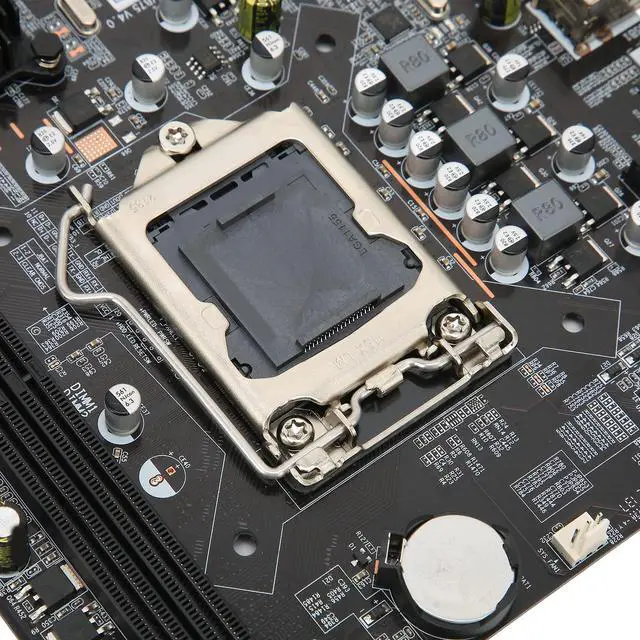

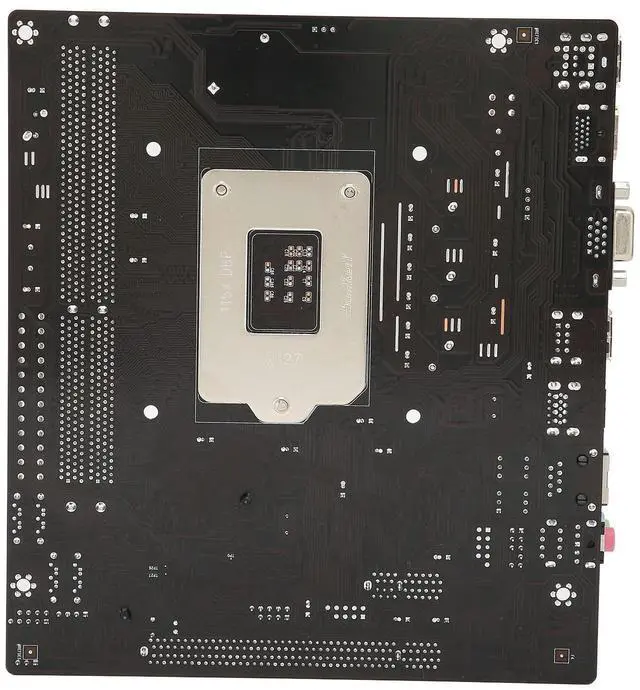

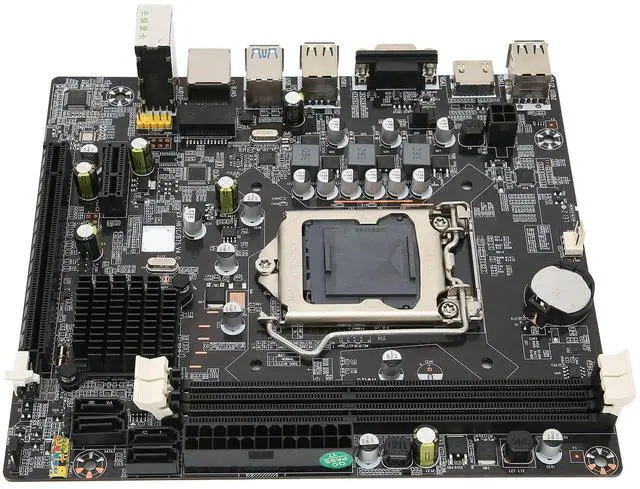

Desktop Mainboard,Desktop Computer Motherboard LGA 1155 USB3.0 SATA Mainboard for Intel B75
- USB 3.0 High-Speed Interface: This Computer Motherboard boasts both front and rear dual-position USB 3.0 interfaces, which offer high rates for swift data transfer. This makes it a breeze to transfer large amounts of data in no time.
- DDR3 Memory Compatibility: Fully compatible with DDR3 desktop memory specifications of 1066/1333/1600/1866, this Desktop Mainboard provides you with the flexibility to maximize your system's performance and responsiveness based on your requirements.
- SATA 3.0 High-Speed Hard Disk Interface: DDR3 Memory Desktop Mainboard supports SSD solid state drive high-speed via its SATA 3.0 high-speed hard disk interface. This helps in boosting the overall system speed and improving performance, especially when accessing or saving large data files.
- Nuclear High Definition Multimedia Interface (HDMI) HD Graphics: DDR3 Computer Motherboard features a high-definition, high-performance graphics card that supports both VGA and HDMI output. This ensures a s
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description
Specification:
Motherboard chip:
Integrated sound card / network card
Main chipset: for Intel B75 series
Audio chip: integrated 6-channel audio chip
NIC chip: integrated RTL8105E
Processor specifications:
CPU socket: LGA 1155
CPU type: i3 i5 and i7 series
Memory specifications:
Memory type: DDR3 1066/1333/1600MHz desktop memory
Memory slot: 2*DDR3 DIMM
Maximum memory support 8G*2
Expansion slot:
1*PCI-Ex16 graphics card slot
1*PCI-Ex1 slot
2*USB 2.0 slot (1 set)
3*SATA 2.0 interface
1*SATA 3.0 interface
I/O interface:
USB universal interface
1*RJ45 network interface
2*USB 2.0 interface
2*USB 3.0 interface
Audio port
Other parameters:
Power connector 4 pin, a 24-pin power connector
Power supply mode 3 items
Size: Approx. 19 x 17 x 4cm / 7.5 x 6.7 x 1.6 in
Weight: approx. 542g
Package list:
1 x Motherboard
1 x SATA cable
1 x Baffle
Note:
1. It is recommended that professionals perform installation.
2. When there is no display, no boot, no picture, no network card, no sound card, etc. after the normal installation of the motherboard, it is recommended that the customer the factory settings (see the steps for specific methods) or find an eraser to wipe the golden finger of the memory CPU graphics card (Motherboard part) to improve the environment.
3. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Factory Reset Steps:
1. Shut down
2. Unplug the power cord connected to the motherboard, 24 wires and 4 wires must be removed
3. Remove the battery
4. Reverse the battery
5. Wait 10 seconds
6. Install the battery normally
7. Connect power
8. Boot
Specification:
Motherboard chip:
Integrated sound card / network card
Main chipset: for Intel B75 series
Audio chip: integrated 6-channel audio chip
NIC chip: integrated RTL8105E
Processor specifications:
CPU socket: LGA 1155
CPU type: i3 i5 and i7 series
Memory specifications:
Memory type: DDR3 1066/1333/1600MHz desktop memory
Memory slot: 2*DDR3 DIMM
Maximum memory support 8G*2
Expansion slot:
1*PCI-Ex16 graphics card slot
1*PCI-Ex1 slot
2*USB 2.0 slot (1 set)
3*SATA 2.0 interface
1*SATA 3.0 interface
I/O interface:
USB universal interface
1*RJ45 network interface
2*USB 2.0 interface
2*USB 3.0 interface
Audio port
Other parameters:
Power connector 4 pin, a 24-pin power connector
Power supply mode 3 items
Size: Approx. 19 x 17 x 4cm / 7.5 x 6.7 x 1.6 in
Weight: approx. 542g
Package list:
1 x Motherboard
1 x SATA cable
1 x Baffle
Note:
1. It is recommended that professionals perform installation.
2. When there is no display, no boot, no picture, no network card, no sound card, etc. after the normal installation of the motherboard, it is recommended that the customer the factory settings (see the steps for specific methods) or find an eraser to wipe the golden finger of the memory CPU graphics card (Motherboard part) to improve the environment.
3. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Factory Reset Steps:
1. Shut down
2. Unplug the power cord connected to the motherboard, 24 wires and 4 wires must be removed
3. Remove the battery
4. Reverse the battery
5. Wait 10 seconds
6. Install the battery normally
7. Connect power
8. Boot
