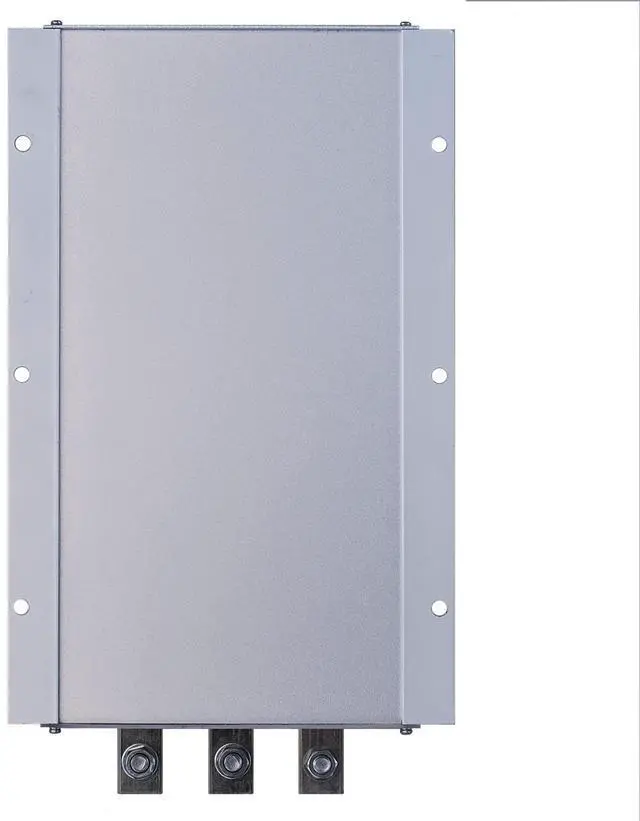

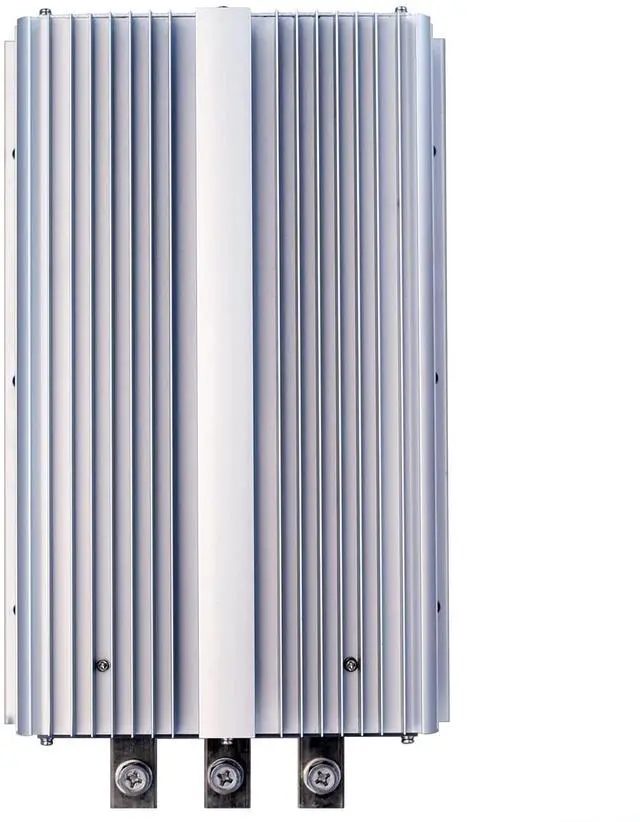

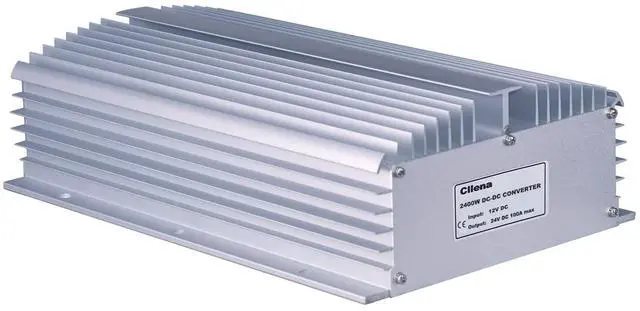

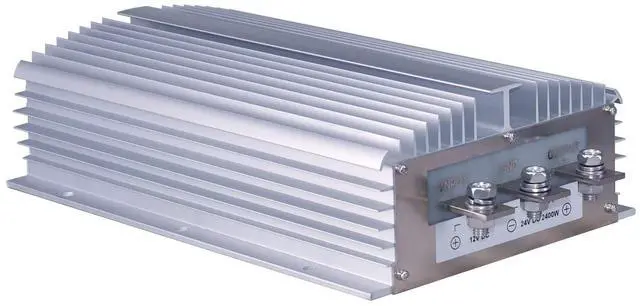

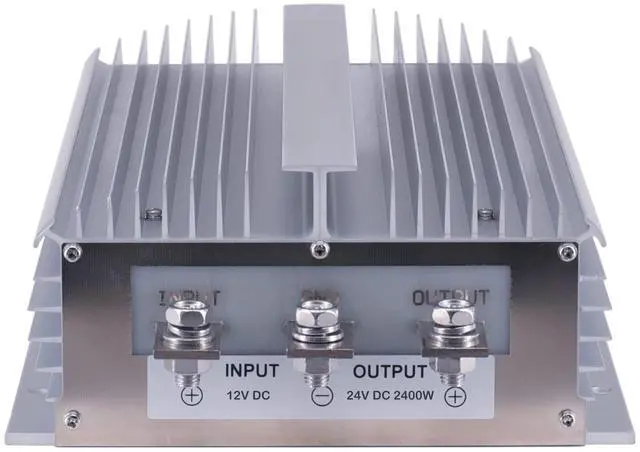

Cllena DC/DC 12V to 24V Boost Converter 100A 2400W Step Up Voltage Regulator Power Supply Voltage Transformer (Input 10V-16V)
- Input voltage range: DC 10V-16V; Output voltage: DC 24V(non-adjustable); Output current: 100A (rated working current); Output power 2400W.
- High conversion efficiency: The conversion efficiency may reach 95%; Its dynamic response speed is 5 percent 200US, please lower the power or enhance heat radiation when temperature over 40
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- Aluminum shell and silicone sealed design: Waterproof, Anti-shock, Anti-humidity and Dust-proof, more durable.
- Wide application: Trucks, taxi radio, emu, car audio, LCD TV, advertising screen, LED lights, monitoring system, motors, electronic systems and DIY etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Application: 12V DC battery as input power to 24V DC appliances as output load.
Reminder: * Keep good air convection. * Input power should be lead acid battery or lithium battery. * This converter cant charge the battery. * Please install correct fuse in input cable. * Dont connect Negative or GND to vehicle case or chassis. * Never connect the converter to a solar panel or wind turbine. That will burn the converter. * Be sure of the correct polarity of input and output connection, never reverse the polarity, or it burns the converter. * Please dont install any meters between converter to battery and converter to loads. * When in doubt, the larger current converter is always a better choice.
Rated Voltage: 12V DCInput
Voltage Range: 10V-16
DCOutput voltage: 24V
DCOutput Current: 100 AmpOutput
Rated Power:
2400WEfficiency: 97% (half load); 95% (full load)
Ripple: 200mVpLine
Regulation: 0.2 %Load
Regulation: 0.2 %Voltage
Accuracy: 1.5
%Enclosures: IP68Case
Operating Temperature: -40~85CTotal
Size: 300*195*90mm (L*W*H)
Weight:
6kgFeatures: 1. 100% full power and stable current output, non-isolated module. 2. Industry grade DC 12V to DC 24V step up converter, efficiency up to 95%. 3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection. 4.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating. 5.
Certificates: CE/RoHS, 1 year warranty, lifetime up to 100, 000 hours.
Package included: 1 x DC 12V-24V 100A Step up Converter
Reminder: * Keep good air convection. * Input power should be lead acid battery or lithium battery. * This converter cant charge the battery. * Please install correct fuse in input cable. * Dont connect Negative or GND to vehicle case or chassis. * Never connect the converter to a solar panel or wind turbine. That will burn the converter. * Be sure of the correct polarity of input and output connection, never reverse the polarity, or it burns the converter. * Please dont install any meters between converter to battery and converter to loads. * When in doubt, the larger current converter is always a better choice.
Specifications
: InputRated Voltage: 12V DCInput
Voltage Range: 10V-16
DCOutput voltage: 24V
DCOutput Current: 100 AmpOutput
Rated Power:
2400WEfficiency: 97% (half load); 95% (full load)
Ripple: 200mVpLine
Regulation: 0.2 %Load
Regulation: 0.2 %Voltage
Accuracy: 1.5
%Enclosures: IP68Case
Operating Temperature: -40~85CTotal
Size: 300*195*90mm (L*W*H)
Weight:
6kgFeatures: 1. 100% full power and stable current output, non-isolated module. 2. Industry grade DC 12V to DC 24V step up converter, efficiency up to 95%. 3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection. 4.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating. 5.
Certificates: CE/RoHS, 1 year warranty, lifetime up to 100, 000 hours.
Package included: 1 x DC 12V-24V 100A Step up Converter
