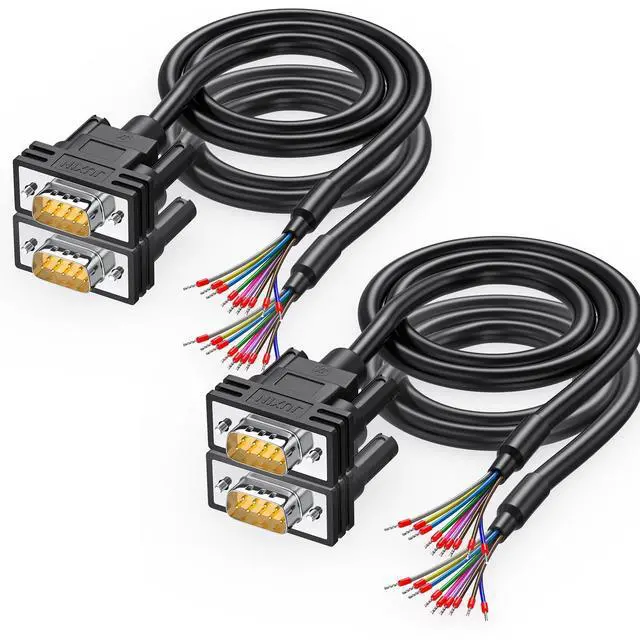

JUXINICE 4Pack DB9 Connector RS232 Serial Cable 5FT,DB9 Male to Bare Wire,D-SUB 9-Pin Connector RS232 to Bare Wire Cable,9 Wire All Provided with Wiring Terminals-Black

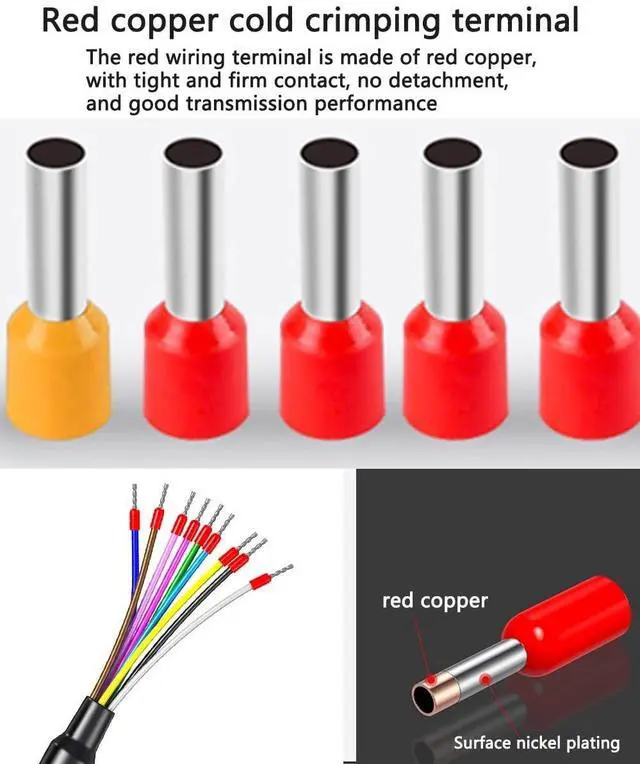

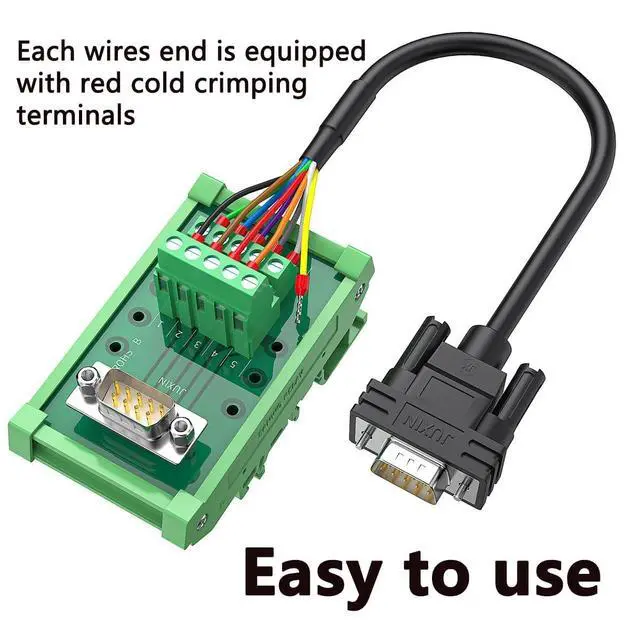

- 4Pack DB9 male adapter to bare wire,Each wires end is equipped with red cold crimping terminalsRed copper material, which are firmly crimped and do not fall off. Easy to use
- 9 PIN-RS232 Serial connector All pins are copper core gold-plated connectors, with good plug resistance and contact.
- 9 wire cores are made of 26AWG tinned copper, with a diameter of 1.0mm per core and a cable outer diameter of 6.0mm. wrapped with aluminum foil+high-density woven mesh to form double-layer shielding, with strong anti-interference ability.

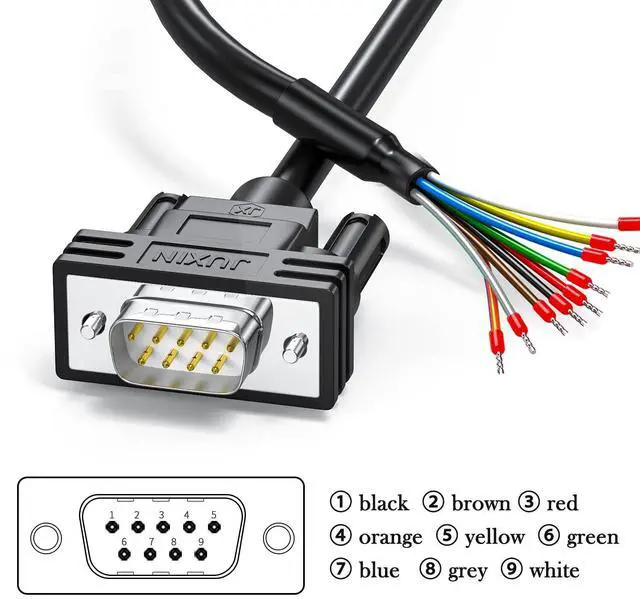

- DB9 to wire sequence: 1-black, 2-brown, 3-red, 4-orange, 5-yellow, 6-green, 7-blue, 8-gray, 9-white
- Multiple communication protocolsDB9 cable Straight-through wiring (i.e. pin 1 to pin 1) design per industry standards, Supports RS232/RS485/RS422 and other communication protocols. Usually: (RS232 connected to 235pin) (RS485 connected to 38 or 12 pin)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DB9 Male RS232 Serial Extension Cable with terminal Multiple communication protocolsDB9 cable Straight-through wiring (i. e. pin 1 to pin 1) design per industry standards, Supports RS232/RS485/RS422 and other communication protocols.
Usually: (RS232 connected to 235pin) (RS485 connected to 38 or 12 pin) 9 Wires
Core color: 1-black, 2-brown, 3-red, 4-orange, 5-yellow, 6-green, 7-blue, 8-gray, 9-white
Durable: db9 bare wire adopts black PVC molded and injection molded shell, which eliminates heavy load strain and makes it strong and reliable.

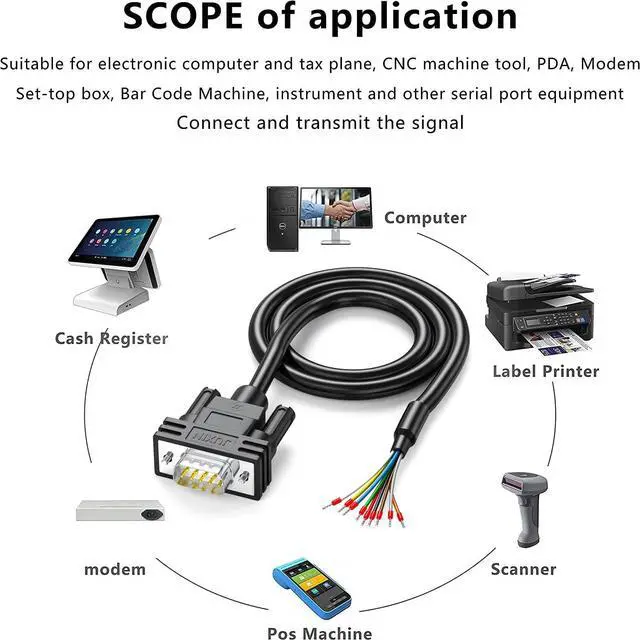

Widely Applications: The DB9 to bare wire can be used for automatic control equipment, Server, CNC, Electrical equipment, UPS, PLC, servo driver, communication instrument, electronic scale, medical equipment etc.
Usually: (RS232 connected to 235pin) (RS485 connected to 38 or 12 pin) 9 Wires
Core color: 1-black, 2-brown, 3-red, 4-orange, 5-yellow, 6-green, 7-blue, 8-gray, 9-white
Durable: db9 bare wire adopts black PVC molded and injection molded shell, which eliminates heavy load strain and makes it strong and reliable.
Widely Applications: The DB9 to bare wire can be used for automatic control equipment, Server, CNC, Electrical equipment, UPS, PLC, servo driver, communication instrument, electronic scale, medical equipment etc.
