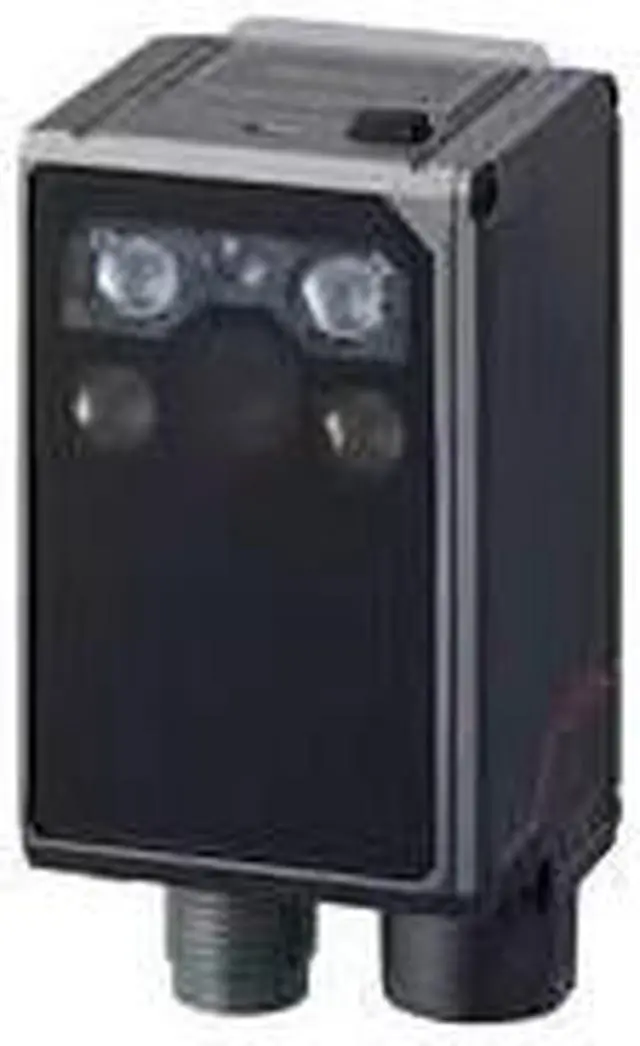

Keyence SR-X100W SR-X Series 1360×1024 Autofocus Code Reader (NOB)

Keyence SR-X100W SR-X Series 1360×1024 Autofocus Code Reader (NOB)

Brand:  Keyence

Model:  SR-X100W

Product Type:  Code Reader

Sensor:  CMOS image sensor

Number of pixels:  1360 × 1024

Focus:  Auto

Illumination light source:  High-intensity red LED*4

Pointer light source:  High-intensity green LED

2D codes:  QR, MicroQR, DataMatrix(ECC200), DMRE, GS1 DataMatrix, PDF417, MicroPDF417,GS1 Composite (CC-A/CC-B/CC-C), DotCode, Maxi Code, Aztec Code

Barcodes:  CODE39, ITF, 2of5 (Industrial 2of5), COOP 2of5, NW-7 (Codabar), CODE128, GS1-128, GS1 DataBar, CODE93,JAN/EAN/UPC, Trioptic CODE39, CODE39 Full ASCII, Pharmacode, Postal (Japan Postal, IMB)

2D codes:  0.060 mm 0.0024"

Barcodes:  0.082 mm 0.0032"

Reading distance:  50 to 1000 mm 1.97" to 39.37"

Reading field of view:  189 × 142 mm 7.44" × 5.59"

Number of inputs:  2

Input type:  Bidirectional voltage input

Maximum rating:  30 VDC

Minimum ON voltage:  15 VDC

Maximum OFF current:  0.2 Ma

Number of outputs:  3

Output type:  Photo MOS relay output

Maximum rating:  30 VDC

Maximum load current:  50 mA or less for 1 output, or 100 mA or less in total for 3 outputs

Leakage current when OFF:  0.1 mA or less

Residual voltage when ON:  1 V or less

Communication standard:  IEEE 802.3-compliant 100BASE-TX

Communication standard:  RS-232C-compliant
