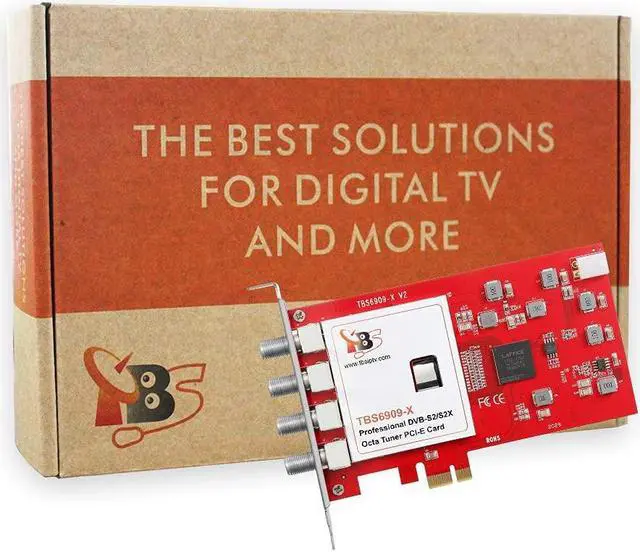

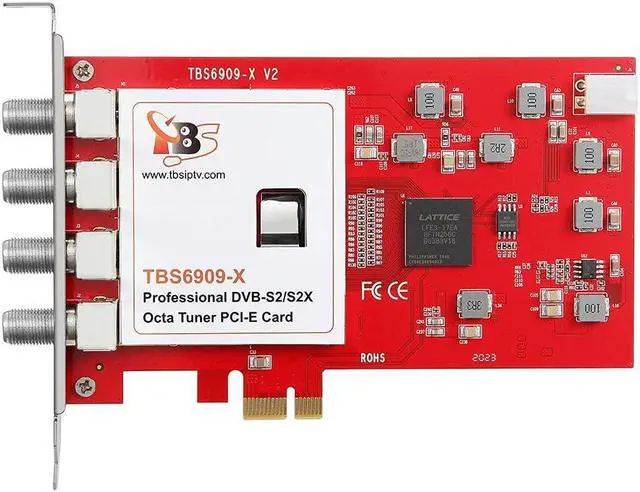

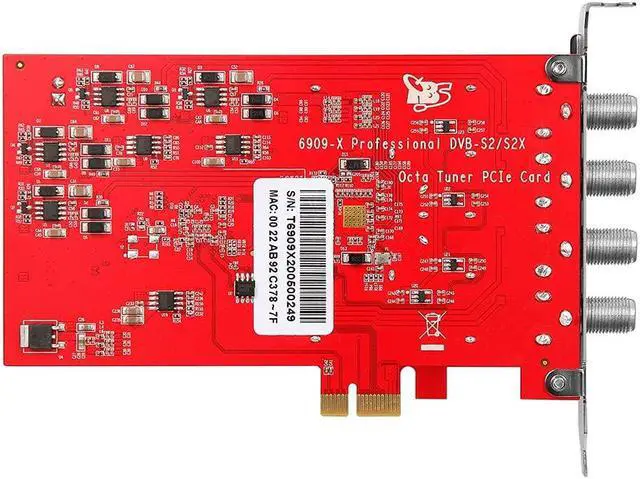

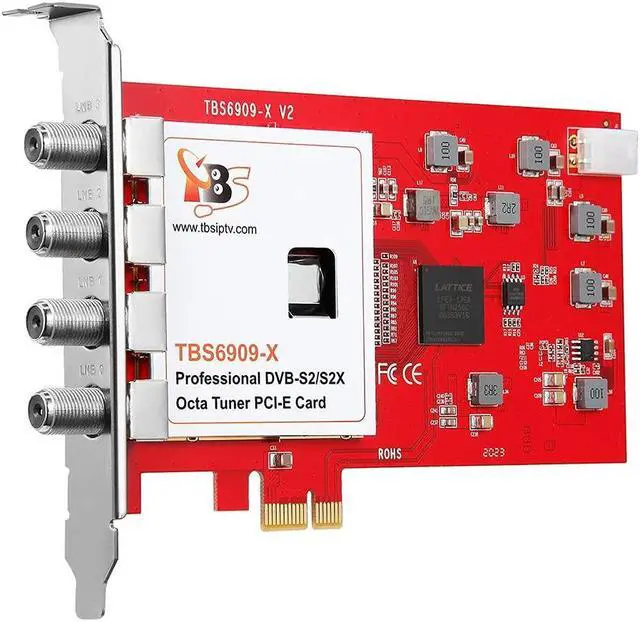

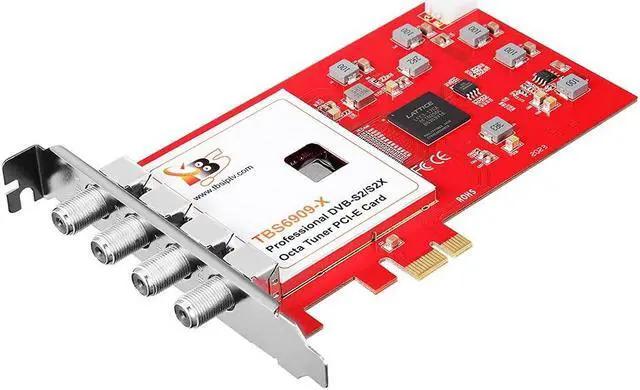

TBS6909X DVB-S/ S2/ S2X 8 Tuner PCI Express Digital Satellite TV Card for Live TV
- DVB-S/S2/S2X: Support DVB-S, DVB-S2 and DVB-S2X standard
- WATCH SATELLITE TV PROGRAMES: A powerful DVB-S2 octa tuner card with PCI Express interface, it is capable of receiving SD/HD digital TV channels from 8 different transponders simultaneously, which is considered as a professional TV tuner for industrial-level users
- 8 TUNER WITH 4 INPUTS: When you have limited PCIe slots in your server, this tuner card enables you to receive more channels than the usual dual or quad TV tuner
- SUPPORT: Fast scanning functionality; VCM, ACM, CCM, QPSK, 8PSK, 16APSK, 32APSK; wide band
- APPLICATION: Data receiving and monitoring
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Model: TBS6909-X V2
Connection: PCI-express; 4x RF in
DVB-S/S2/S2X
DVB-S/S2
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X
QPSK:
1/4, 1/3, 2/5 (S2-MODCO
Ds)
1/2, 3/5, 2/3, 3/4, 4/5, 5/6
8/9, 9/10 (S2-MODCO
Ds)
11/45, 4/15, 14/45, 7/15 8/15, 32/45
8PSK:
3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCO
Ds)
7/15, 8/15, 26/45, 32/45
16APSK:
2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCO
Ds)
7/15, 8/15, 26/45, 3/5, 32/45
32APSK(32APSK-L): 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCO
Ds) 32/45, 11/15, 7/9, (2/3)
64APSK (64APSK_L): 11/15, 7/9, 4/5, 5/6. (32/45)
CCM: Yes
VCM: Yes
ACM: Yes
Power consumption:
Input/ Power: 12V/7~20W
Temperature: 0°~ 78°
Other information:
System Requirements: Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Package Contents:
1* TBS6909-X V2
1* Power cable
Maximum symbol DVB-S2X/S2 rate limitations (Msymb/s)
QPSK
Demod: 64;
LDPC: 720
; 4 simultaneous demodulators: 64
; 6 simultaneous demodulators: 60; 8 simultaneous demodulators: 45
8PSK
Demod: 64;
LDPC: 720
; 4 simultaneous demodulators: 60
; 6 simultaneous demodulators: 45; 8 simultaneous demodulators: 30
16PSK
Demod: 64;
LDPC: 720
; 4 simultaneous demodulators: 45
; 6 simultaneous demodulators: 30; 8 simultaneous demodulators: 22.5
32PSK
Demod: 51;
LDPC: 720
; 4 simultaneous demodulators: 36
; 6 simultaneous demodulators: 24; 8 simultaneous demodulators: 18
64PSK
Demod: 43;
LDPC: 720
; 4 simultaneous demodulators: 30
; 6 simultaneous demodulators: 20
; 8 simultaneous demodulators: 15
Model: TBS6909-X V2
Connection: PCI-express; 4x RF in
DVB-S/S2/S2X
DVB-S/S2
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X
QPSK:
1/4, 1/3, 2/5 (S2-MODCO
Ds)
1/2, 3/5, 2/3, 3/4, 4/5, 5/6
8/9, 9/10 (S2-MODCO
Ds)
11/45, 4/15, 14/45, 7/15 8/15, 32/45
8PSK:
3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCO
Ds)
7/15, 8/15, 26/45, 32/45
16APSK:
2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCO
Ds)
7/15, 8/15, 26/45, 3/5, 32/45
32APSK(32APSK-L): 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCO
Ds) 32/45, 11/15, 7/9, (2/3)
64APSK (64APSK_L): 11/15, 7/9, 4/5, 5/6. (32/45)
CCM: Yes
VCM: Yes
ACM: Yes
Power consumption:
Input/ Power: 12V/7~20W
Temperature: 0°~ 78°
Other information:
System Requirements: Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Package Contents:
1* TBS6909-X V2
1* Power cable
Maximum symbol DVB-S2X/S2 rate limitations (Msymb/s)
QPSK
Demod: 64;
LDPC: 720
; 4 simultaneous demodulators: 64
; 6 simultaneous demodulators: 60; 8 simultaneous demodulators: 45
8PSK
Demod: 64;
LDPC: 720
; 4 simultaneous demodulators: 60
; 6 simultaneous demodulators: 45; 8 simultaneous demodulators: 30
16PSK
Demod: 64;
LDPC: 720
; 4 simultaneous demodulators: 45
; 6 simultaneous demodulators: 30; 8 simultaneous demodulators: 22.5
32PSK
Demod: 51;
LDPC: 720
; 4 simultaneous demodulators: 36
; 6 simultaneous demodulators: 24; 8 simultaneous demodulators: 18
64PSK
Demod: 43;
LDPC: 720
; 4 simultaneous demodulators: 30
; 6 simultaneous demodulators: 20
; 8 simultaneous demodulators: 15
