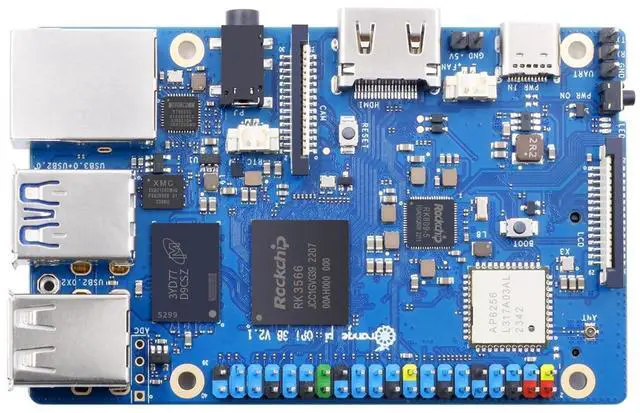

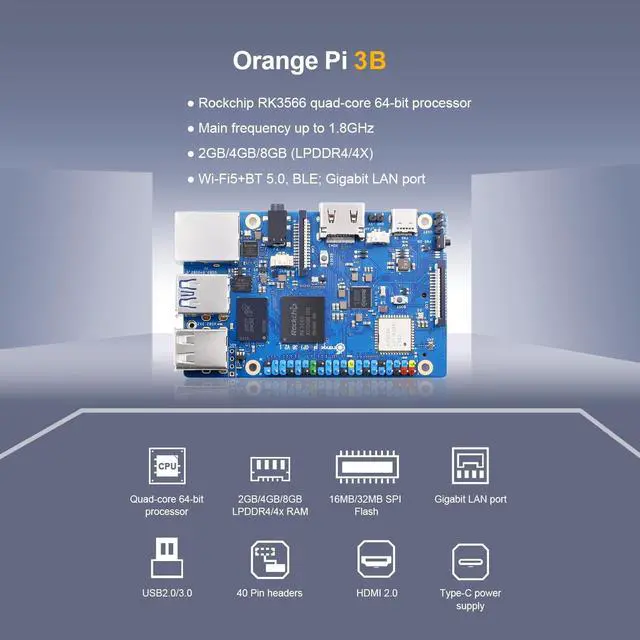

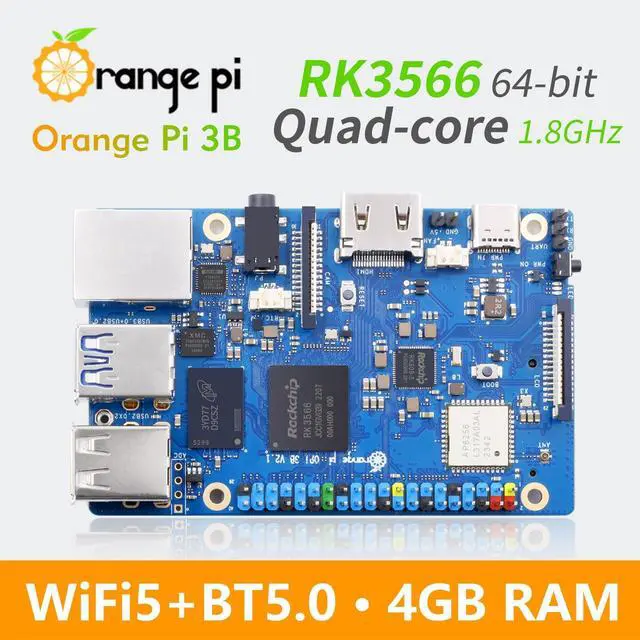

Orange Pi 3B 2GB/4GB/8GB LPDDR4/4X Rockchip RK3566 4-Core 64-Bit Single Board Computer with eMMC Socket, WiFi 5 and Bluetooth 5.0, Development Board Run Linux/Ubuntu/Debian/Android (4GB)
- [High-Performance Processing]: Orange Pi 3B is powered by a robust Rockchip RK3566 quad-core 64-bit processor, operating at up to 1.8GHz. It comes with 2GB, 4GB, or 8GB of high-performance memory, ensuring smooth and efficient multitasking. With support for eMMC modules ranging from 16GB to 256GB, it offers flexible storage options, along with Wi-Fi 5 and Bluetooth 5.0 connectivity for seamless wireless communication.

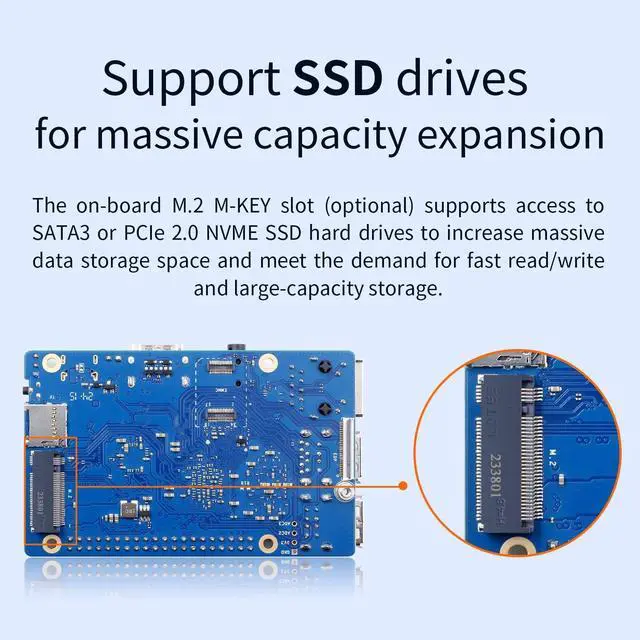

- [Extensive Connectivity Options]: Orange Pi 3B features a wide array of connectivity options, including HDMI output, M.2 M-KEY, TF card slot, Gigabit LAN port, USB 2.0, USB 3.0, 3.5mm headphone jack, MIPI DSI port, eDP port, MIPI CSI camera port, and a versatile 40 Pin expansion port. The M.2 M-KEY slot supports SATA 3 or PCIe 2.0 NVME SSDs, offering the potential for large-capacity storage and enhanced performance.
- [Versatile Operating System Support]: Orange Pi 3B is compatible with multiple operating systems, including Android, Ubuntu, Debian, as well as O
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Hardware Parameters SoC: RockchipRK3566
CPU: 4-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GH z
PMU: RockChip
RK809-5 RAM: 2GB/4GB/8GB(LPDDR4/4x)
GPU: ARM Mali G52 2EE graphics processor upport OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.0, Vulkan 1.1 Embedded high performance 2D acceleration hardware
NPU: Integrated RKNN NPU AI accelerator with 0.8T ops@INT8 performance Support one-click conversion of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture models
VPU: 4K@60fps H. 265/H. 264/VP9 video decoding 1080P@100fps H. 265 video encoding 1080P@60fps H.
264 video encoding Memory: Support
eMMC module: 16GB/32GB/64GB/128GB/256GB
SPI Flash: 16MB M.
2 M-KEY slot: SATA3 or PCIe 2.0 NVME SSDs Micro SD slot
Wi-Fi+BT: Wi-Fi 5+BT 5.0, BLE (AP6256)

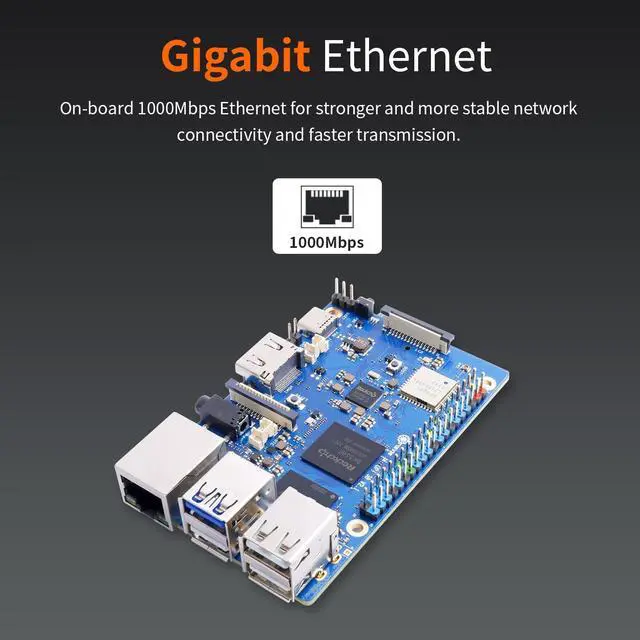

Ethernet: 10/100/1000Mbps Ethernet (On-board
PHY chip: YT8531C-CA )
Video Output: 1* HDMI TX 2.0, up to 4K@60fps 1*MIPI DSI 2 lane eDP 1.3
Camera: 1MIPI CSI 2 lane camera interface
USB: 1*USB 2.0 support Device or HOST mode 1USB 3.0 HOST 2*USB 2.0
HOST Audio: 3.5 mm headphone jack audio in/out
Button: 1MaskROM key, 1*RESET key, 1*POWER key
FAN: 2Pin 1.25 mm size 5V fan connector
RTC: 2Pin 1.25 mm size battery backup connector 40Pin: 40Pin functional expansion interface, supporting
the following interface types: GPIO, UART, I2C, SPI, PWM
Power Source: Type-C 5V3A
Supported OS: Android, Ubuntu, Debian, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH)
PCB Dimension: 56*89mm
Weight: 52g
CPU: 4-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GH z
PMU: RockChip
RK809-5 RAM: 2GB/4GB/8GB(LPDDR4/4x)
GPU: ARM Mali G52 2EE graphics processor upport OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.0, Vulkan 1.1 Embedded high performance 2D acceleration hardware
NPU: Integrated RKNN NPU AI accelerator with 0.8T ops@INT8 performance Support one-click conversion of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture models
VPU: 4K@60fps H. 265/H. 264/VP9 video decoding 1080P@100fps H. 265 video encoding 1080P@60fps H.
264 video encoding Memory: Support
eMMC module: 16GB/32GB/64GB/128GB/256GB
SPI Flash: 16MB M.
2 M-KEY slot: SATA3 or PCIe 2.0 NVME SSDs Micro SD slot
Wi-Fi+BT: Wi-Fi 5+BT 5.0, BLE (AP6256)
Ethernet: 10/100/1000Mbps Ethernet (On-board
PHY chip: YT8531C-CA )
Video Output: 1* HDMI TX 2.0, up to 4K@60fps 1*MIPI DSI 2 lane eDP 1.3
Camera: 1MIPI CSI 2 lane camera interface
USB: 1*USB 2.0 support Device or HOST mode 1USB 3.0 HOST 2*USB 2.0
HOST Audio: 3.5 mm headphone jack audio in/out
Button: 1MaskROM key, 1*RESET key, 1*POWER key
FAN: 2Pin 1.25 mm size 5V fan connector
RTC: 2Pin 1.25 mm size battery backup connector 40Pin: 40Pin functional expansion interface, supporting
the following interface types: GPIO, UART, I2C, SPI, PWM
Power Source: Type-C 5V3A
Supported OS: Android, Ubuntu, Debian, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH)
PCB Dimension: 56*89mm
Weight: 52g
