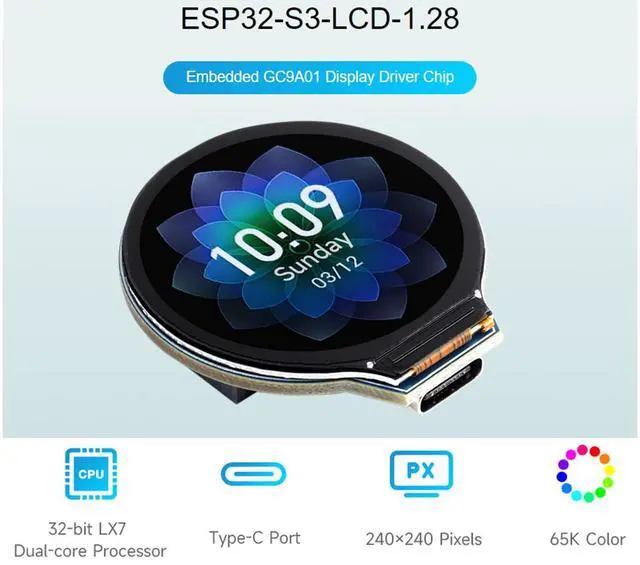

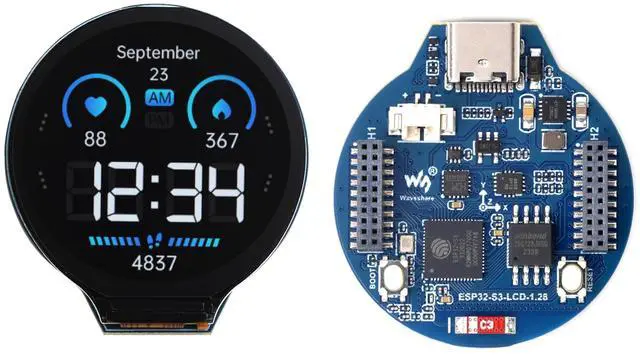

ESP32-S3 Development Board with 1.28inch Round LCD IPS Display 240 x240 Pixel, 32-bit LX7 Dual-Core Processor, GC9A01 Display Driver Chip,Support 2.4GHz W-i-F-i (802.11 b/g/n) and Blue-Tooth 5 (BLE)

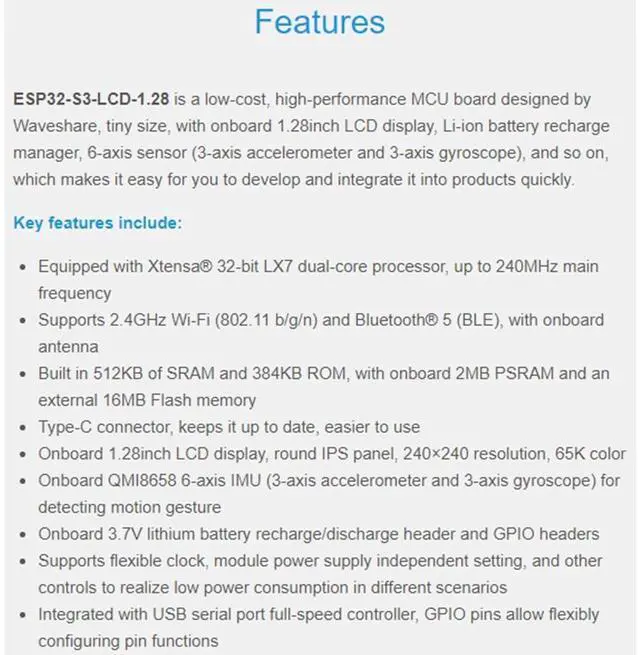

- ESP32-S3-LCD-1.28 is a high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch LCD display, Li-ion batte-ry recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.
- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz W-i-F-i (802.11 b/g/n) and Blue-too-th 5 (BLE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory

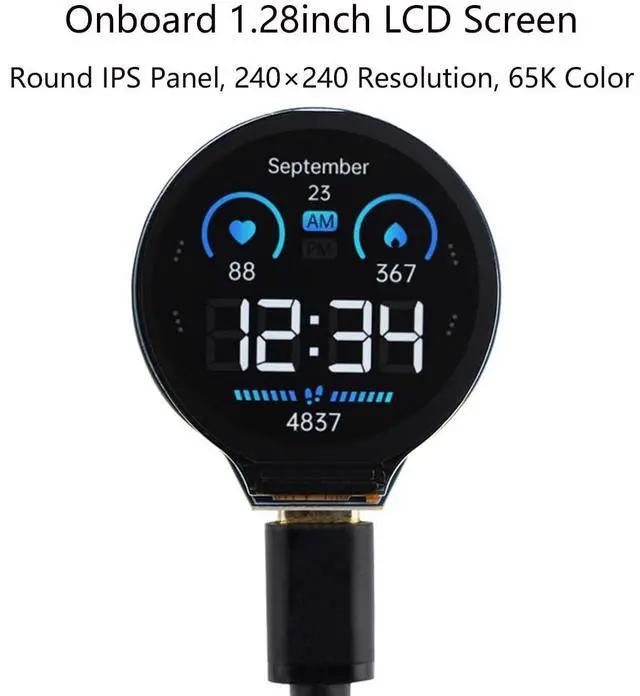

- Onboard 1.28inch LCD display, round IPS panel, 240×240 resolution, 65K color
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture

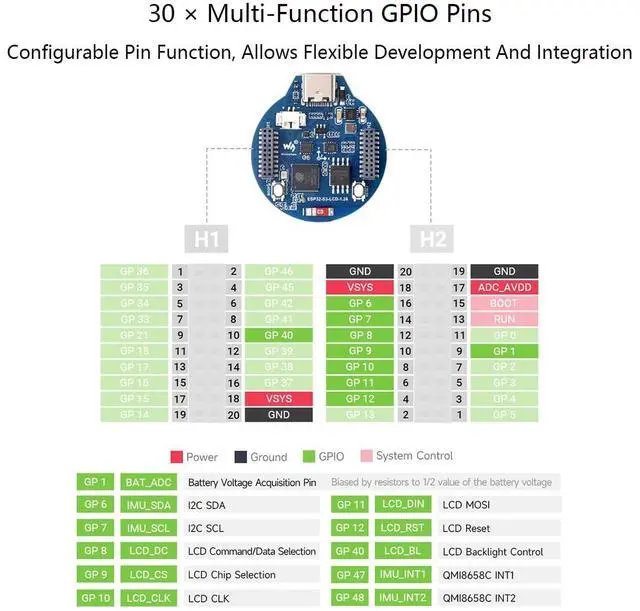

- Onboard 3.7V lith-ium batte-ry recharge/discharge header and GPIO headers
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Provide Onlin
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ESP32-S3 Development Board with 1.28 inch Round LCD IPS Display 240 x240 Pixel, 32-bit LX7 Dual-Core Processor, GC9A01 Display Driver Chip, Support 2.4GH z W-i-F-i ( 802.11 b/g/n) and Blue-Tooth 5 (BLE)
