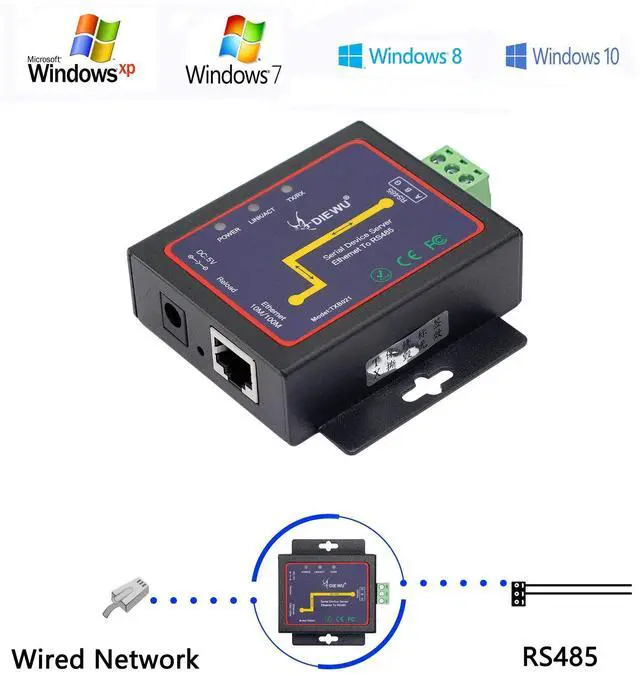

CERRXIAN RS485 to Ethernet RJ45 TCP/IP Serial Device Server Converter Transparent Transmission Serial Data Communication Device Support Web Management System
- ACCESS SERIAL DEVICES REMOTELY - RS485 Serial device server transfer bidirectional transparent transmission of data between RS485 and Ethernet IP. It can configure and remotely manage RS485 serial devices on an IP network.Supports RS485 half duplex transmission, simple to set to work.
- QUICKLY CONNECTS DEVICES TO THE INTERNET - The rs485 to ethernet converter supports 300 baud to a 230400bps data rate, connecting a RS485 serial device to the ethernet instantly.
- MULTIPLE CONTROL MODES - Support Work Mode: TCP Server, TCP Client, UDP,VCOM.Support Auto-MDI/ MDIX, RJ45 Port with 10 / 100Mbps.Support web browser settings.
- FLEXIBLE INSTALLATION - The rugged aluminum housing with mounting bracket provides reliable performance that can be used in almost any environment.
- WIDELY COMPATIBLE - Support all Windows systems, such as XP/WIN7/WIN8/WIN10.Suitable for Centralized control of household electrical appliances; access control systems; variety of industrial automation; instrumentati
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The rs485 to ethernet converter is designed for PC software that uses serial port mode and cannot communicate with networked devices.
VCOM: Receive the data of the specified virtual serial port, and then send the data out in the form of network data, and convert it back to serial data. It is internally integrated with TCP/IP protocol. User can apply it to device networking communication.
Features: UART
Interface: RS485 Terminal (Half

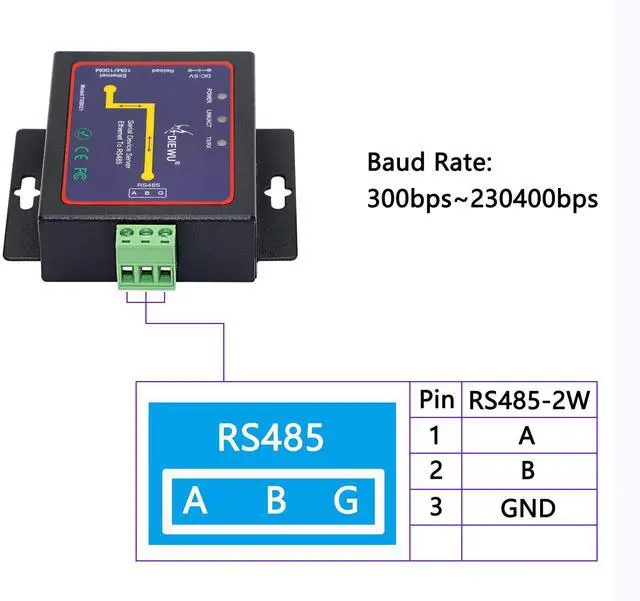

Duplex) Pin Definition: RS485 A+, RS485 B-, GroundNetwork
Interface: RJ45 port with 10/100Mbps(Full Duplex/Half Duplex)Support Auto-MDI/MDIX
Support Work Mode: TCP Server, TCP Client, VCOM
Support virtual serial port (VCOM) Support Web Browser SettingsSupport Baud-rate 300bps~230400bpsSupport Reload functionSupport Modbus RTU
Support IEEE 802.3IEEE 802.3 uIEEE 802.3 xNetwork transmission rate: 10/100MbpsLED

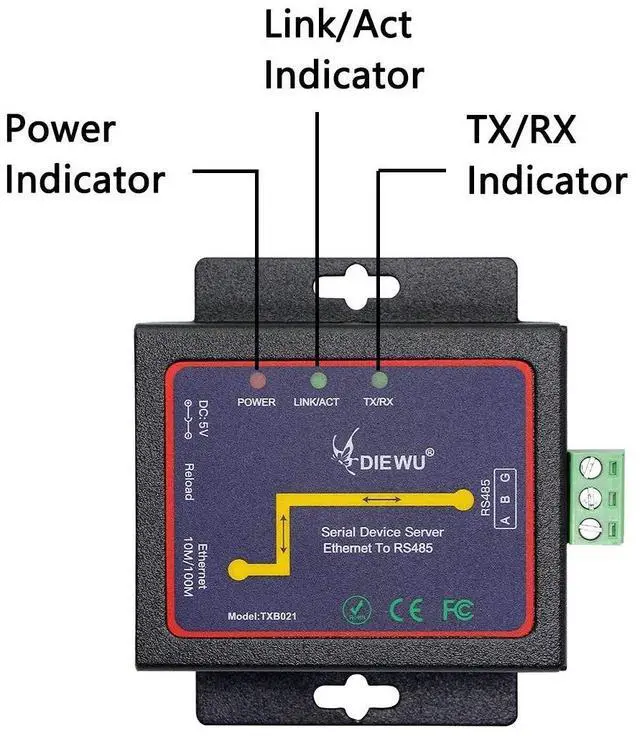

Indicator: DC 5V Power, Link/ACT, TX, RX, Power Consumption< 1.8 WOperating Temperature -10-50.
Storage Temperature:
-20~70CHumidity: 10%~90%, no
condensationSize: 8x 5.7 x 2.3 cmSupport all Windows systems, such as
XP/WIN7/WIN8/WIN10Application: LED display communication data; machine PLC data read, write, and PTZ control; Centralized control of household electrical appliances; access control systems; variety of industrial automation; instrumentation; employee attendance machine; highway toll station; ATM machine.

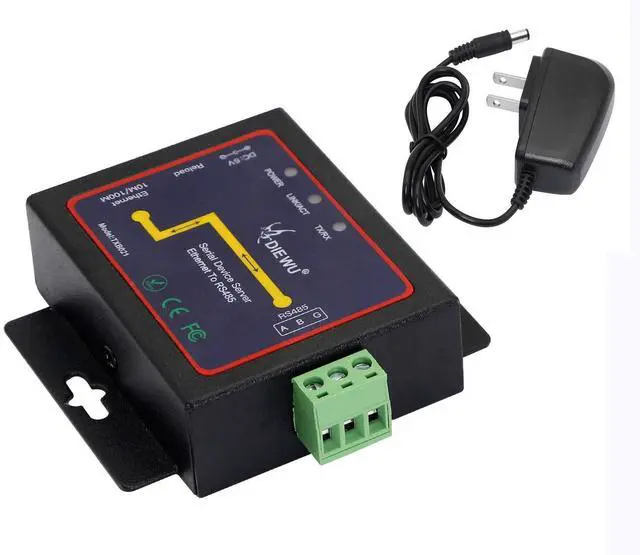

Package: 1x Serial Device Server, 1x DC 5V Adapter, 1x User Manual
VCOM: Receive the data of the specified virtual serial port, and then send the data out in the form of network data, and convert it back to serial data. It is internally integrated with TCP/IP protocol. User can apply it to device networking communication.
Features: UART
Interface: RS485 Terminal (Half
Duplex) Pin Definition: RS485 A+, RS485 B-, GroundNetwork
Interface: RJ45 port with 10/100Mbps(Full Duplex/Half Duplex)Support Auto-MDI/MDIX
Support Work Mode: TCP Server, TCP Client, VCOM
Support virtual serial port (VCOM) Support Web Browser SettingsSupport Baud-rate 300bps~230400bpsSupport Reload functionSupport Modbus RTU
Support IEEE 802.3IEEE 802.3 uIEEE 802.3 xNetwork transmission rate: 10/100MbpsLED
Indicator: DC 5V Power, Link/ACT, TX, RX, Power Consumption< 1.8 WOperating Temperature -10-50.
Storage Temperature:
-20~70CHumidity: 10%~90%, no
condensationSize: 8x 5.7 x 2.3 cmSupport all Windows systems, such as
XP/WIN7/WIN8/WIN10Application: LED display communication data; machine PLC data read, write, and PTZ control; Centralized control of household electrical appliances; access control systems; variety of industrial automation; instrumentation; employee attendance machine; highway toll station; ATM machine.
Package: 1x Serial Device Server, 1x DC 5V Adapter, 1x User Manual
