EVERSECU 4K CCTV Power Supply 16 Channel Adjustable DC11V ~DC15V 32 Amp Output Reset Fuse with Anti-Ripple and Anti-EMI Interference Circuit Designed for 4K IP/CCTV Security Cameras System
- 4K-Optimized Anti-Ripple & Anti-EMI: Crystal-clear footage for 4K IP/CCTV cameras (300mVpp ripple)
- 16 Independent Channels: 2A per channel (480W total) to power up to 16 security devices simultaneously
- 12V-15V Adjustable Voltage: Factory set to 12.2V compatible with diverse security peripherals
- Intelligent Cooling: Auto-start fan (455) + PTC overtemp protection (855) for 24/7 reliability
- Global Compliance: 90-264VAC input + RoHS/UL/IEC/EN certifications works worldwide

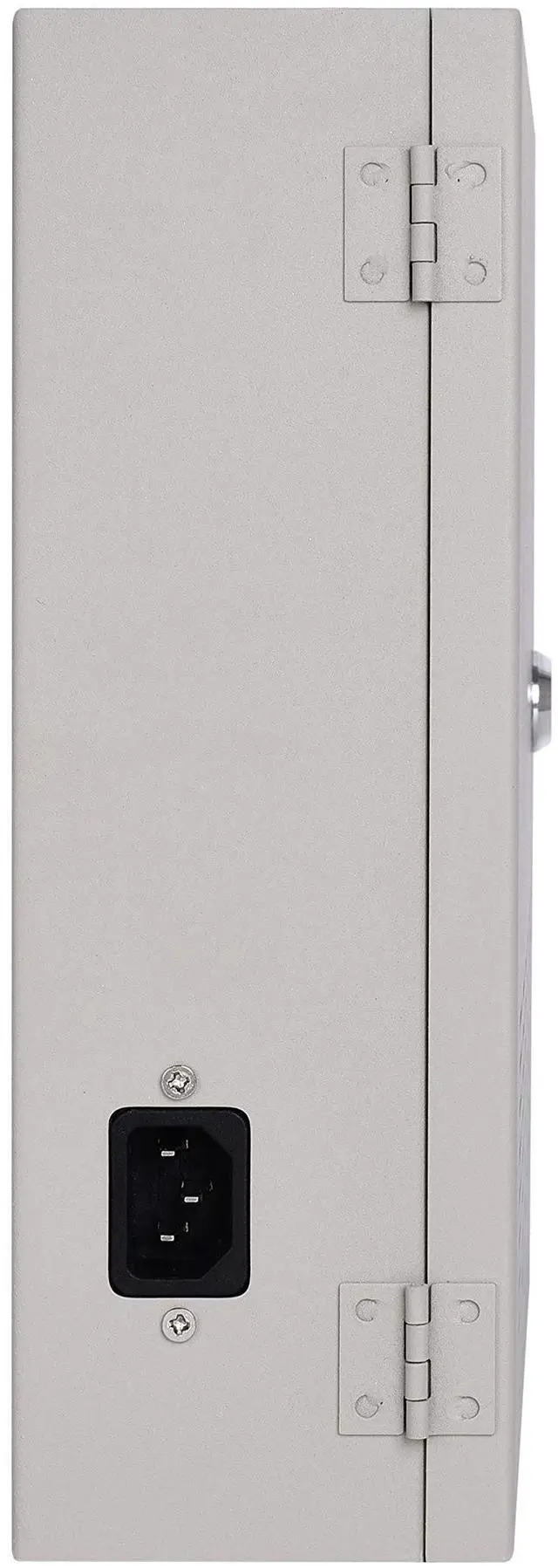

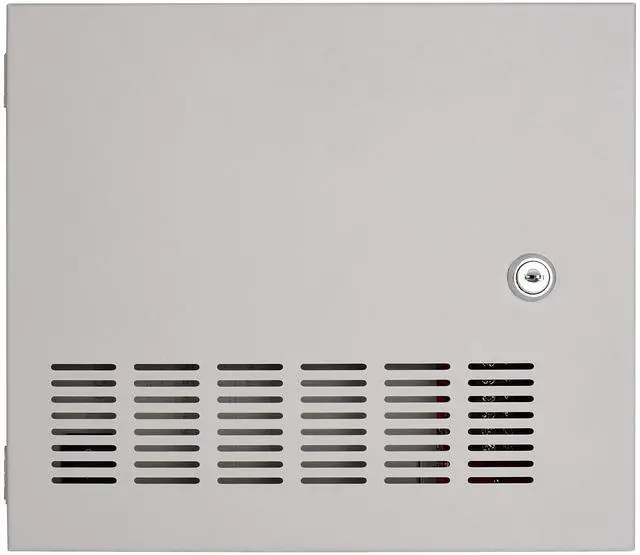

- Key Lock + Included AC Plug: Anti-tampering lock with keys + ready-to-use AC plug safe and convenient

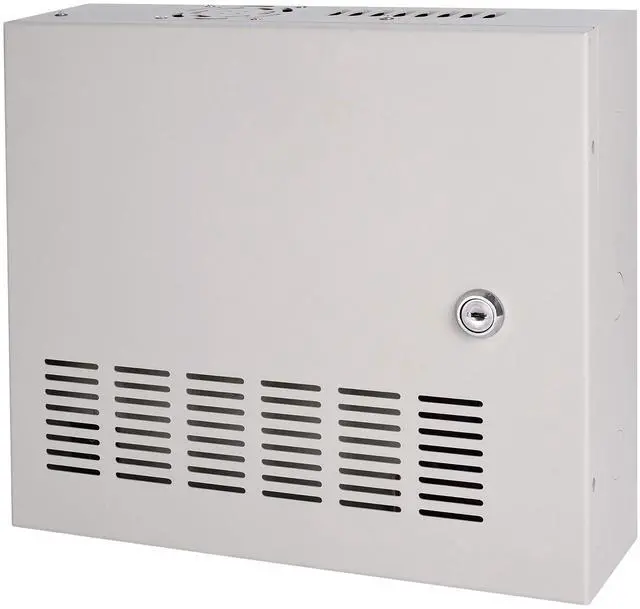

- New Reinforced Metal Housing: Compressive & wear-resisting structure for safer, longer-lasting operation
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
EVERSECU 4K CCTV Power Supply 16 Channel Adjustable DC11V ~DC15V 32 Amp Output Reset Fuse with Anti-Ripple and Anti-EMI Interference Circuit Designed for 4K IP/CCTV
Security Cameras SystemFeatures: Suitable for CCTV Camera, PTZ, IR Illuminators, Video Process, Access Control, etc.
Battery Backup: Use 12V Lead-acid battery (Not included)

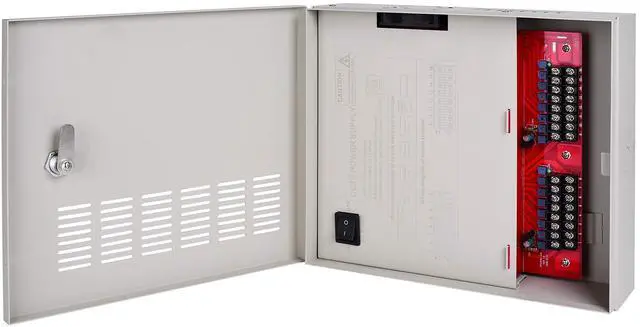

General protection: each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working.
Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit, when condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal. Application CCTV Camera, PTZ, IR Illuminator, Video ProcessorLED strip lights, DVR, Security cameras system, Access Control, etc.
Model: CP1216-32A-4KInput
Voltage: AC 100~240V, 50-60HzOutput
Voltage: DC11V-15VTotal
Output Current: 32ATotal
Output Channel: 16
CHFuse type: PTC
ResettableFuse Rating: 2ARipple
Noise: less
than120mvEfficiency: >=88%Storage
Temperature: -40-85 celuis degreeOperating
Temperature: -20-60 celuis degree
Security Cameras SystemFeatures: Suitable for CCTV Camera, PTZ, IR Illuminators, Video Process, Access Control, etc.
Battery Backup: Use 12V Lead-acid battery (Not included)
General protection: each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working.
Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit, when condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal. Application CCTV Camera, PTZ, IR Illuminator, Video ProcessorLED strip lights, DVR, Security cameras system, Access Control, etc.
Model: CP1216-32A-4KInput
Voltage: AC 100~240V, 50-60HzOutput
Voltage: DC11V-15VTotal
Output Current: 32ATotal
Output Channel: 16
CHFuse type: PTC
ResettableFuse Rating: 2ARipple
Noise: less
than120mvEfficiency: >=88%Storage
Temperature: -40-85 celuis degreeOperating
Temperature: -20-60 celuis degree
