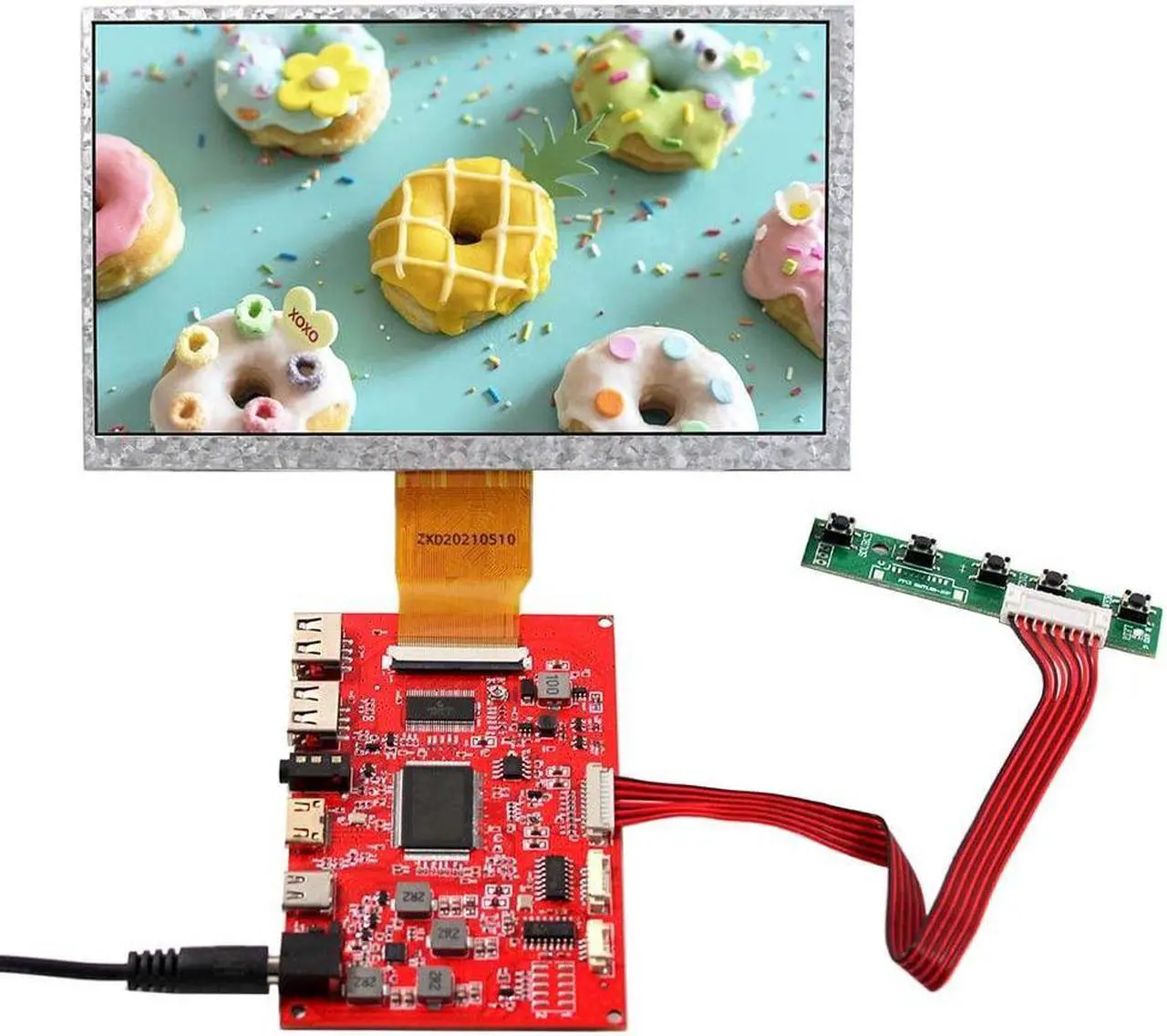

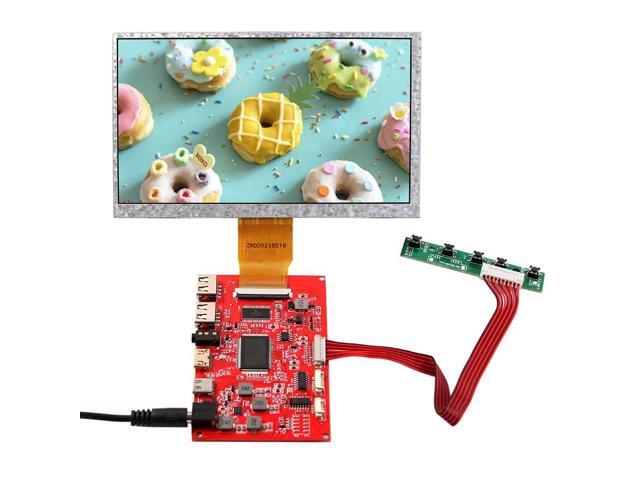

FanyiTek 7 inch 1024x600 300nit TFT IPS LCD Screen 50 pins and Type C 2USB Mini HDMI Controller Board,for DIY RPI Monitor/Sub Display Using
- [(Screen Advantages)] This 300nit IPS TTL screen is well made with full viewing angle. Display Area 154.21 x 85.92 (HxV)mm,Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC.
- [(LCD Controller Board)] Video Input: HD-MI(1.4), Type-C ,2xUSB (keyboard mouse),Audio Input: HD-MI Type-C ,Please use in insulated environment.
- [(Input Power)] 12V DC 2A ,port size :5.5x2.1mm.Pls prepare the power adapter by yourself.

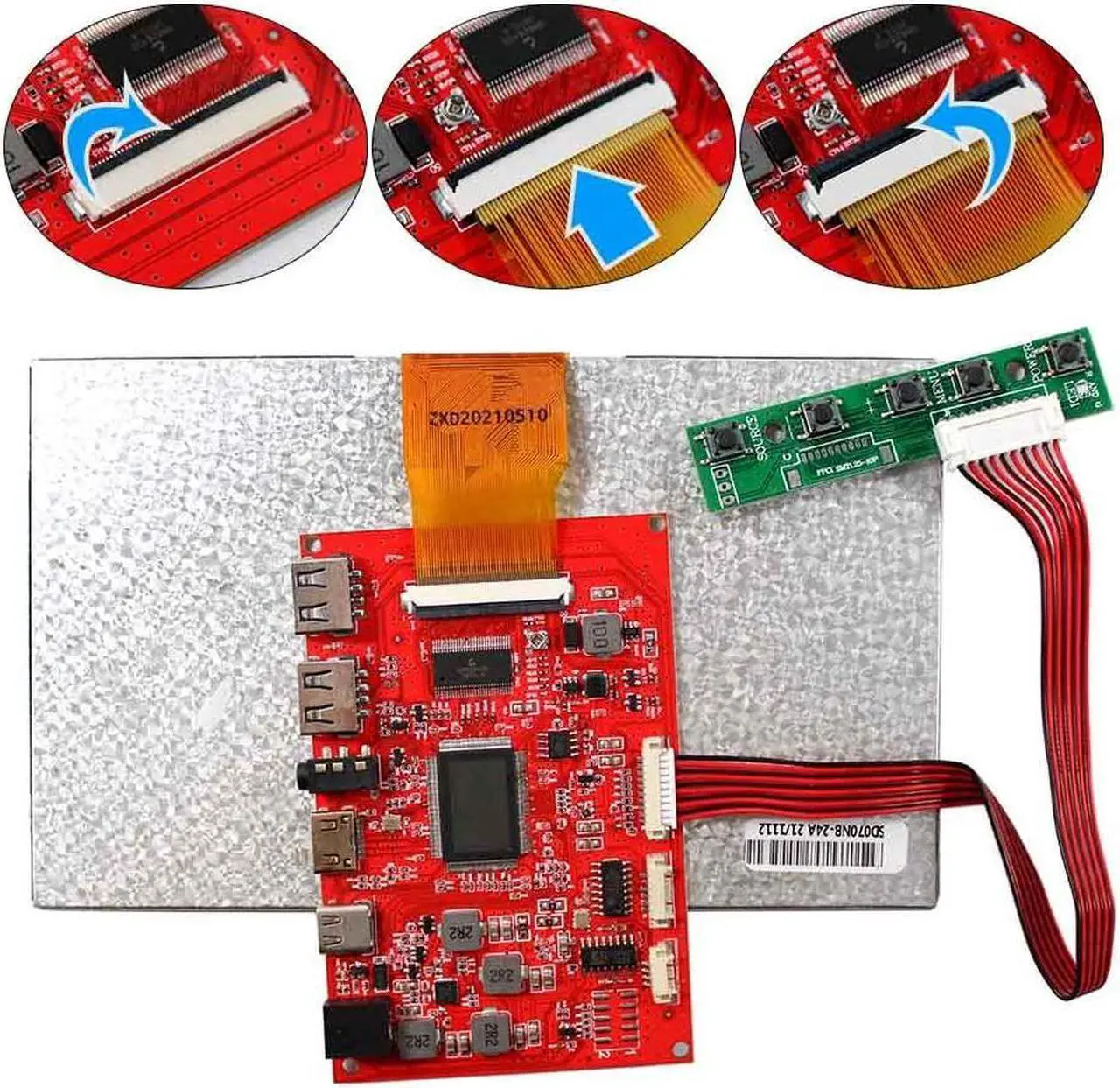

- [(Plug and play)] Connecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.
- [(Packing lists)] 1x HD-MI Type-C USB LCD Controller Board VS-TY2660H-V863,1x 7inch VS070-I5024H45C-02 1024x600 IPS LCD Screen,1x Keyboard With Cable
+
+
Overview
Specs
Reviews

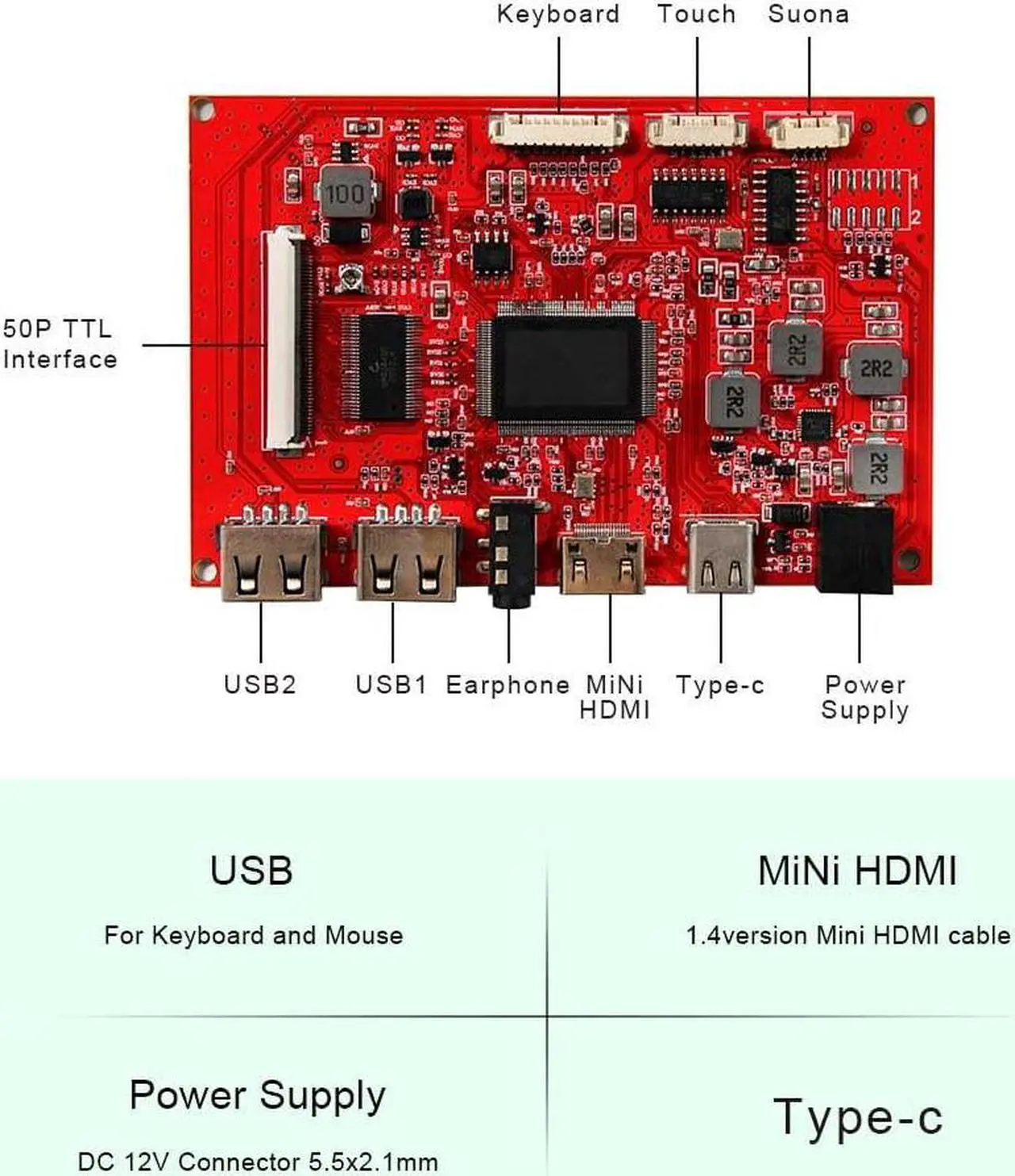

LCD Controller Board:
HD-MI Type-C USB LCD Board Work for TTL Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model 2x2W
Video Input: HD-MI( 1.4 ) Type-C 2xUSB (keyboard mouse)
Audio Input: HD-MI Type-C
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

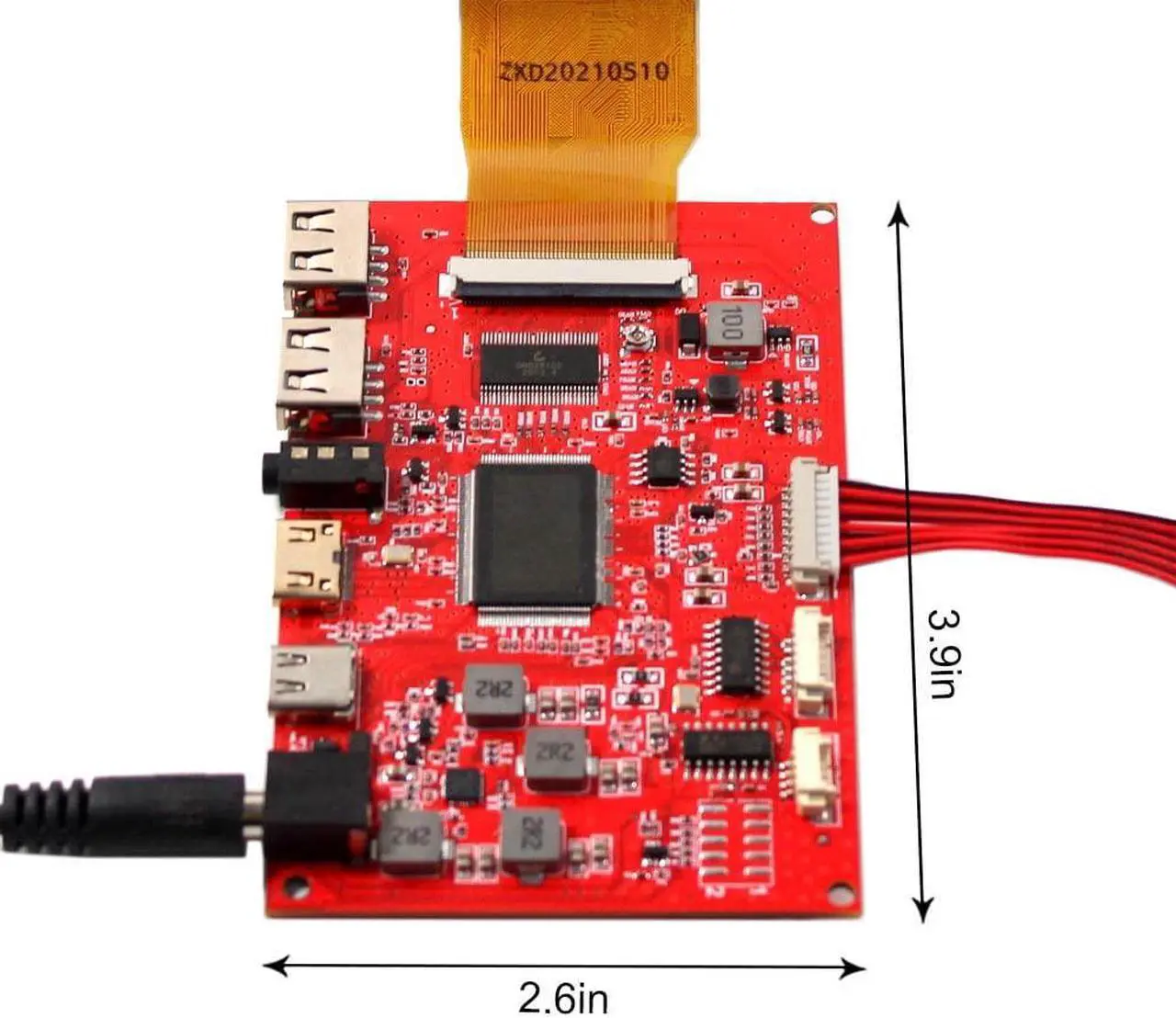

Board Size: 99.5 mm x 65.8 mm x 11mm
7" VS070-I5024H45C-02 1024X600 LCD Screen:
Display Mode IPS, Normally White, Transmissive
Resolution 1024 (RGB) x600
Outline Size 164.9 x 100 x 3.5 (HxVxD)
Display Area 154.21 x 85.92 (HxV)
Brightness 300 cd/m2 (Typ. )
Contrast Ratio 800:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit), 50 pins, FPC
Backlight WLED
Input Voltage 3.3V (Typ. )

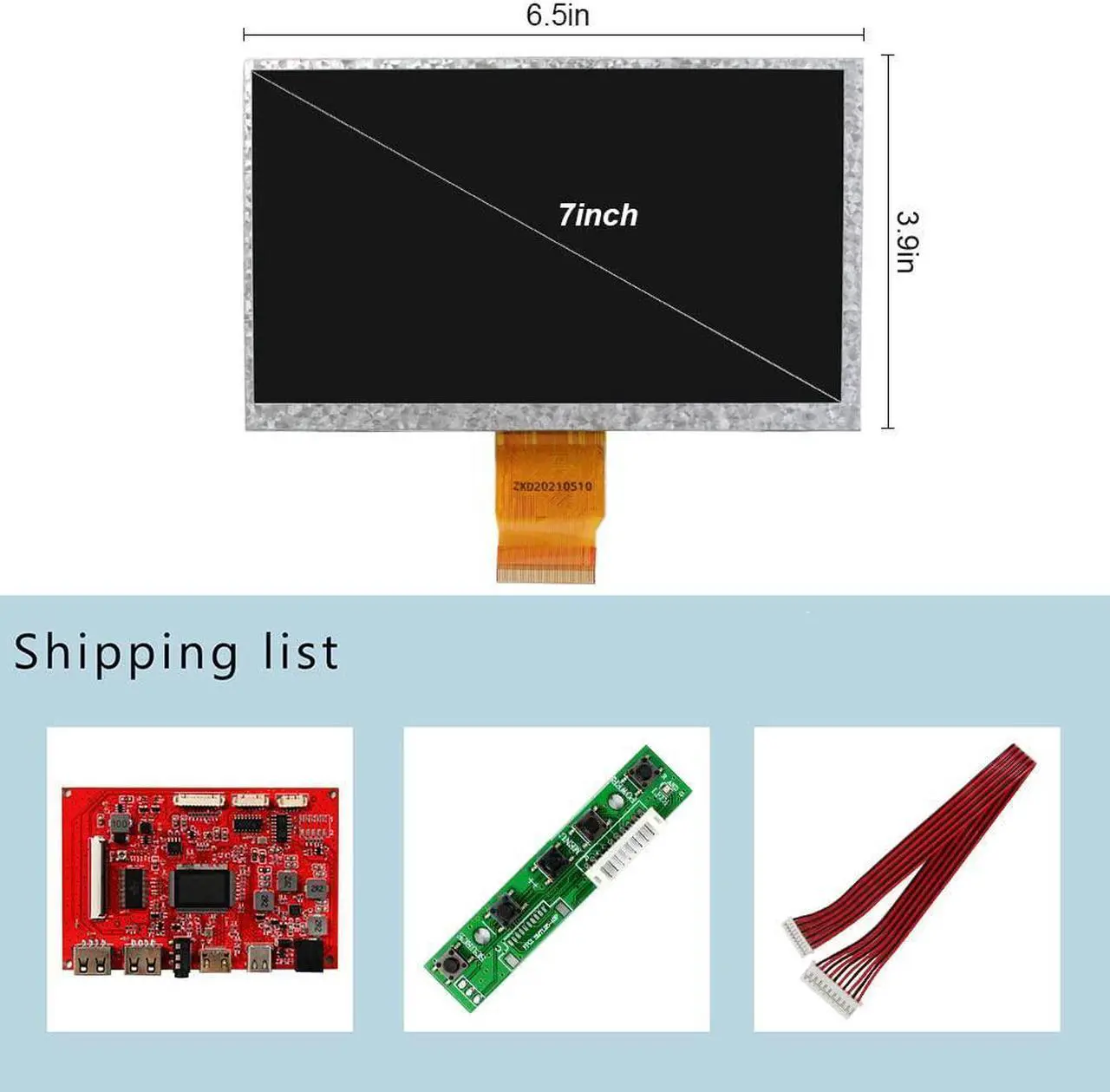

Packing list:
1x HD-MI Type-C USB LCD Controller Board VS-TY2660H-V863
1x 7inch VS070-I5024H45C-02 1024x600 LCD Screen
1x Keyboard With Cable
HD-MI Type-C USB LCD Board Work for TTL Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model 2x2W
Video Input: HD-MI( 1.4 ) Type-C 2xUSB (keyboard mouse)
Audio Input: HD-MI Type-C
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 99.5 mm x 65.8 mm x 11mm
7" VS070-I5024H45C-02 1024X600 LCD Screen:
Display Mode IPS, Normally White, Transmissive
Resolution 1024 (RGB) x600
Outline Size 164.9 x 100 x 3.5 (HxVxD)
Display Area 154.21 x 85.92 (HxV)
Brightness 300 cd/m2 (Typ. )
Contrast Ratio 800:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit), 50 pins, FPC
Backlight WLED
Input Voltage 3.3V (Typ. )
Packing list:
1x HD-MI Type-C USB LCD Controller Board VS-TY2660H-V863
1x 7inch VS070-I5024H45C-02 1024x600 LCD Screen
1x Keyboard With Cable
