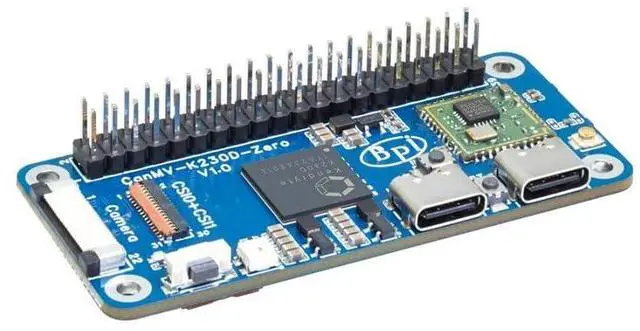

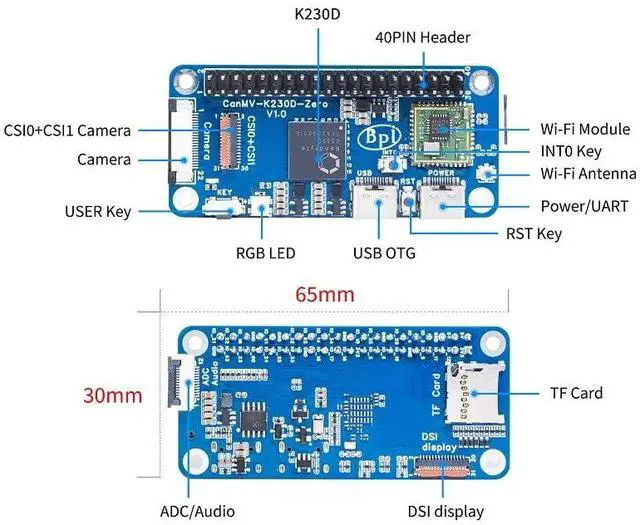

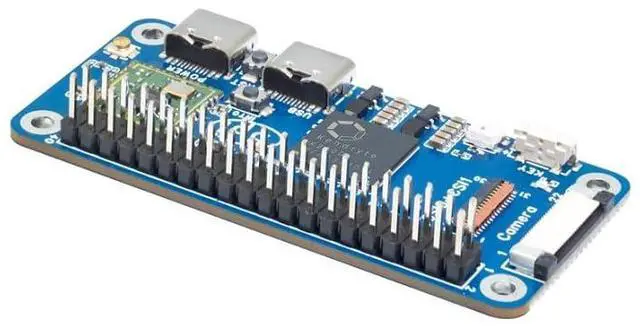

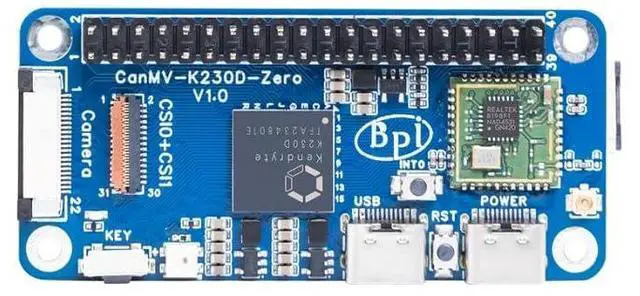

Banana Pi CanMV-K230D Zero AI Single Board Computer, K230D C908 RISC-V CPU Restnet50 KPU 3D DPU, LPDDR4 RAM H.264/H.265 VPU, for DIY Projects IoT Devices Programming (K230D SBC)

[Rich Integrated Units] Banana Pi BPI-CanMV-K230D Zero development board is powered by Gentech C908 dual-core RISC-V CPU (CPU1: 1.6GHz, supports RVV1.0, CPU2: 800MHz). Third-generation KPU, support INT8/INT16, built-in 3D structural depth engine DPU, Support H.264/H.265 VPU. 128MB LPDDR4 RAM, onboard TF card expansion interface, maximum support up to 1TB.
[Upgraded CanMV-K230D RISC-V SBC] Banana Pi BPI CanMV-K230D Zero single board computer adopted Kendryte's latest generation AIoT SoC K230D Chip. Supporting a wide range of DIY projects, IoT devices and embedded systems, the Canmv-K230D Zero SBC helps you start your innovation journey, whether it's learning to program, innovating with edge AI audio/video products, or evaluating performance.
[Specialized Hardware Acceleration] Banana Pi BPI CanMV-K230D Zero single board computer is also equipped with rich peripheral interfaces, as well as 2D, 2.5D and other scalar, vector, graphics and other specialized hardware accelera

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

-Specification-
SOC: Rockchip RK3576
CPU:
Gentech C908 Dual-Core RISC-V CPU
CPU 1: 1. 6GHz, supports RVV 1.0
CPU 2: 800 MHz
KPU: Third-generation KPU, supports INT8/INT16 and other data types.
Typical network performance: Restnet50 amount to 85fps INT8 Mobilenet v2 amount to 670fps INT8; YoloV5s amount to 38fps INT8
DPU: Built-in 3D structured light depth engine, maximum resolution support up to 1920x1080
VPU: Built-in H. 264/H. 265 hardware codecs
Image Input:
2 lane MIPI-CSI x1 + 4 lane MPIP-CSI x1; Maximum resolution to 4K HD
Display output: MIPI DSI interface, supports up to 1080P display output
Operating Memory: 128MB LPDDR4 2666Mbps
Storage Expansion: Onboard TF card expansion interface, support up to 1TB
USB: 1 USB 2.0 interface, support OTG function
Network: 2.4G Wi-Fi BT
Audio: On-board microphone x1
GPIO: Expandable 40Pin expandable GPIO; supports I2C/UART/I2S/SPI/PWM/ADC/JTAG extension conversion
Buttons: Function button x1; Reset button x1
Power supply: USB Type-C 5V 2A
Dimensions:
Length: 65mm Width: 30mm Height: 7mm
Operating temperature: 0~80
-Package Content-

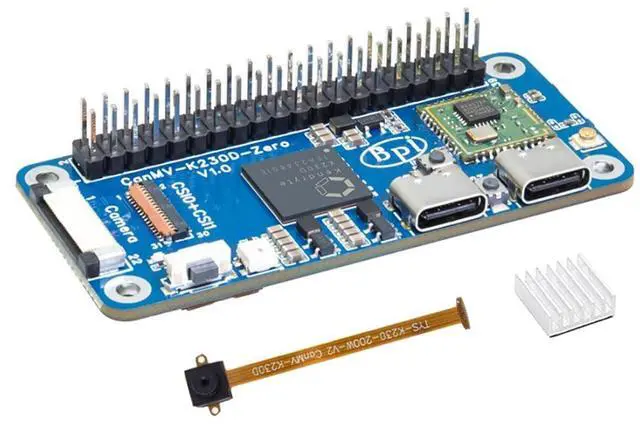

BPI-CanMV-K230D Zero Development Board Bundle x1
