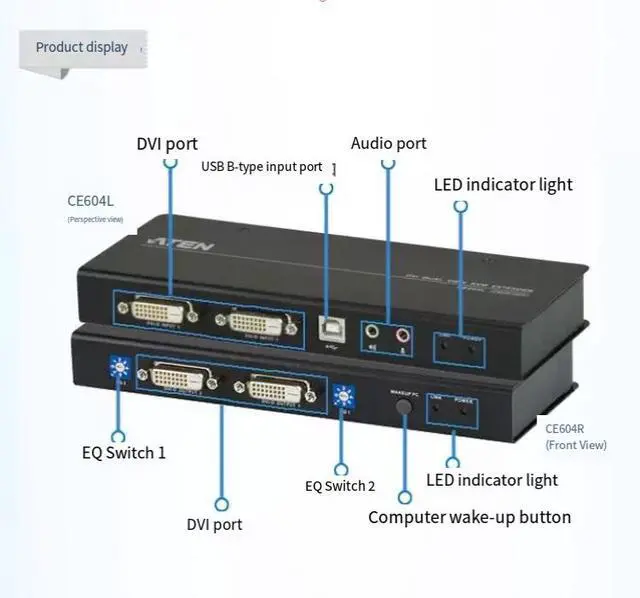

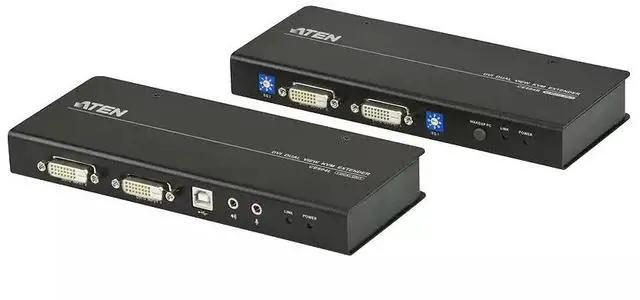

ATEN HongZheng DVI USB Dual Display KVM Signal Extender CE604

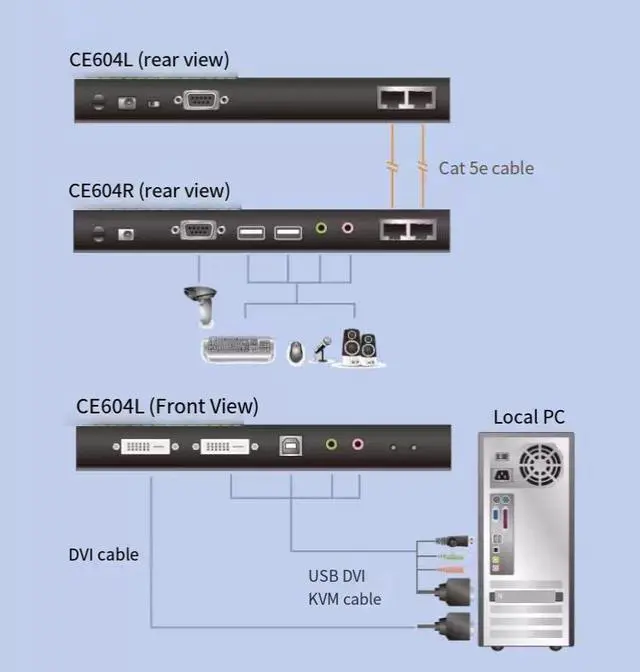

- Connectthe localand remote devices via two Cat 5e cables, with a maximumdistance of up to 60meters.
- Using the main Cat 5e cable, you can transmit speakers, keyboards,mice, DDC, and one DVl signal source; the secondary Cat 5e cabletransmits RS-232, microphones, and another DVl signal source.
- Support dua-screen signal source transmission (one desktop computer with two screen output ports)
- Audio function- Supports stereo speakers and microphones
- ATEN EDID Technology - Allows for switching between remote screenEDID transmission and ATEN's default EDID via hotkeys
- The computer wake-up function is supported by the front panel buttons or hotkeys.

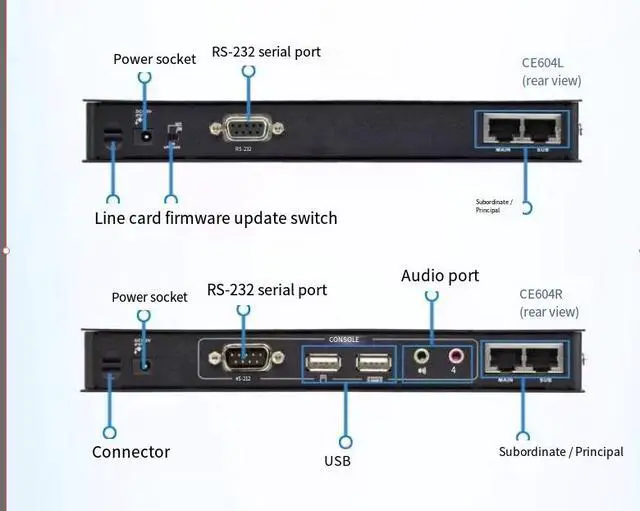

- RS-232serial port connection port - Can be connected to serial terminal devices or serialequipment, such as touch screens and barcode scanners (with a maximum rate of up to9600bps)
- Compatible with multiple models of ATEN DVl dual-screen KVMsignal extenders- CS1642A/CS1644ACS1762A/CS1764A,etc.
- High video resolution - up to1920x1200 @ 60Hz (30 minutes), 1024x768@ 60Hz(60 minutes)
- Manual compensation controlcan sequentially enhance the signal transmission intensity according to thedistance.
- Built-in 8KV/15KVelectrostatic protection (contact discharge 8KV;air discharge 15KV) and 2KV surge protection
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Connectthe localand remote devices via two Cat 5e cables, with a maximumdistance of up to 60meters.
Using the main Cat 5e cable, you can transmit speakers, keyboards,mice, DDC, and one DVl signal source; the secondary Cat 5e cabletransmits RS-232, microphones, and another DVl signal source.
Support dua-screen signal source transmission (one desktop computer with two screen output ports)
Audio function- Supports stereo speakers and microphones
ATEN EDID Technology - Allows for switching between remote screenEDID transmission and ATEN's default EDID via hotkeys
The computer wake-up function is supported by the front panel buttons or hotkeys.
RS-232serial port connection port - Can be connected to serial terminal devices or serialequipment, such as touch screens and barcode scanners (with a maximum rate of up to9600bps)
Compatible with multiple models of ATEN DVl dual-screen KVMsignal extenders- CS1642A/CS1644ACS1762A/CS1764A,etc.
High video resolution - up to1920x1200 @ 60Hz (30 minutes), 1024x768@ 60Hz(60 minutes)
Manual compensation controlcan sequentially enhance the signal transmission intensity according to thedistance.
Built-in 8KV/15KVelectrostatic protection (contact discharge 8KV;air discharge 15KV) and 2KV surge protection
