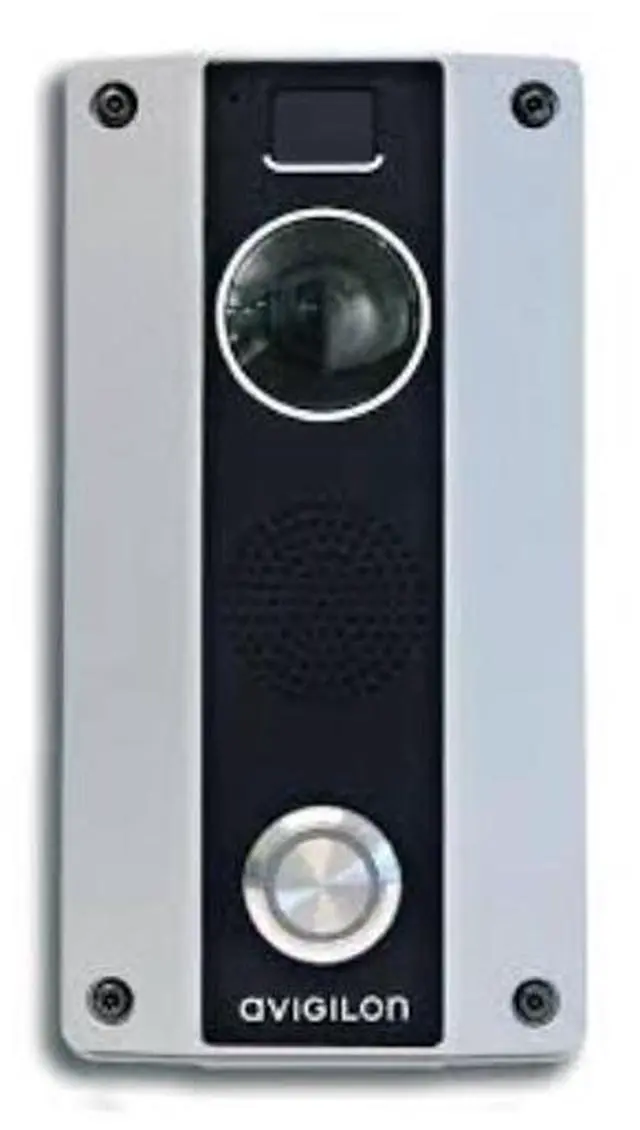

Avigilon 3.0C-H4VI-RO1-IR H4 3MP IR Intercom Video Camera

Avigilon 3.0C-H4VI-RO1-IR

Brand: Avigilon

Model: 3.0C-H4VI-RO1-IR

Product Type: Intercome Camera

Condition: New Open Box

Resolution: 3 MP (2048 × 1536) progressive-scan CMOS sensor

Frame Rate: Up to 30 fps

Lens: Fixed 1.83 mm, F2.4 fisheye with ~170° horizontal field of view

Wide Dynamic Range (WDR): Triple-exposure WDR (up to ~120 dB) for challenging lighting

Low-light: LightCatcher technology, 0 lux with IR

IR illumination: Integrated IR LEDs

Effective IR range: ~5 m (15 ft) at 0 lux

Ethernet: 100 Mbit/s, PoE (IEEE 802.3af)

Protocols: IPv4/IPv6, HTTP/S, RTSP, RTP, TCP/UDP, DHCP, DNS, NTP, IGMP, and more

Onboard storage: microSD/SDHC/SDXC support

Bi-directional audio: Built-in microphone and speaker with noise reduction & echo cancellation

Audio codecs: Opus, G.711

Alarm I/O: 1 alarm input, 2 alarm outputs, 1 tamper output

Door control: Remote door release support and ACC/ACM integration

SIP support: Peer-to-peer/PBX voice calls supported (depending on firmware)

Weather rating: IP66 dust/water resistance

Vandal resistance: IK10 impact rating

Operating temp: ~-40 °C to +60 °C

Housing: Aluminum enclosure

Compression: H.264, Motion JPEG with HDSM SmartCodec

Analytics: Supports Avigilon Appearance Search and basic analytics features

ONVIF: Profile S compliant for third-party integration (varies by firmware)

Dimensions: ~227 × 120 × 100 mm (varies slightly by mount)

Weight: ~1.23 kg

Power: 12 V DC or PoE; ~10 W typical
