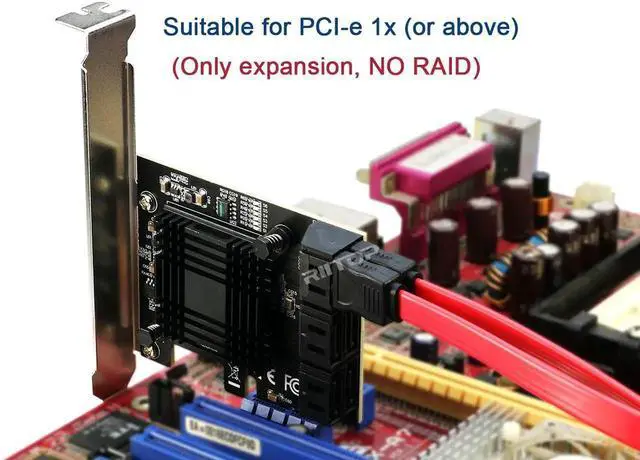

SATA Expansion Card 6Port, RIITOP PCI-e x1 to SATA Hard Drive Controller Card Adapter, Come with Low Profile Bracket (JMB575+ASM1062 Chipset) - NO RAID

SATA Expansion Card 6Port, PCI-e 1x to SATA 3.0 Controller Card

1. SATA Expansion Card PCIe x1
2. 6Port SATA iii Hard Drive Controller Card Adapter

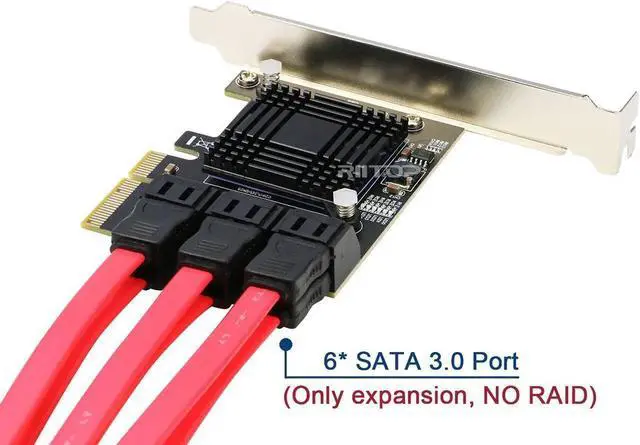

3. 6 * SATA III (6 Gbps) ports through PCI Express x1 (or above) Slot
4. Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps) drives
5. Compliant with PCI Express 3.0 standards
6. JMB575 + ASM1062 Chipset
7. Includes Low Profile/Half-Height installation bracket

Note:

Please do NOT connect system disk, only work with extended partitions.

Features:

6 AHCI SATA III (6 Gbps) ports through PCI Express x1(or above).

Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps).

Compliant with PCI Express 3.0 standards.

JMB575 + ASM1062 Chipset.

Includes Low Profile/Half-Height installation bracket.

Support OS:

For Windows 7, 8.x, 10,

For Windows Server 2008 R2, 2012, 2016,2019,

For Linux 2.6.x to 4.x.

Note:

Please do NOT connect system disk, only work with extended partitions.

Specifications:

Chipset: JMB575 + ASM1062.

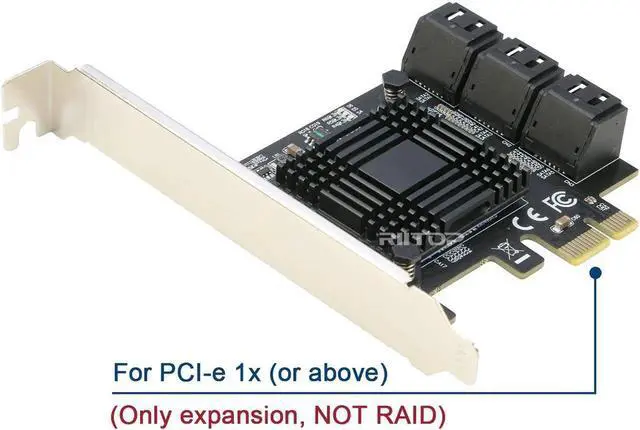

Slot: Suiltable for PCI Express 1x (or above).

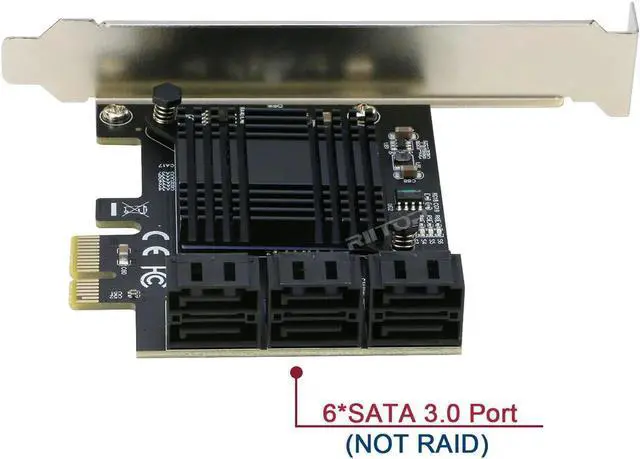

Port Number: 6 Port SATA 3.0.

Dimension: 80*22 mm.

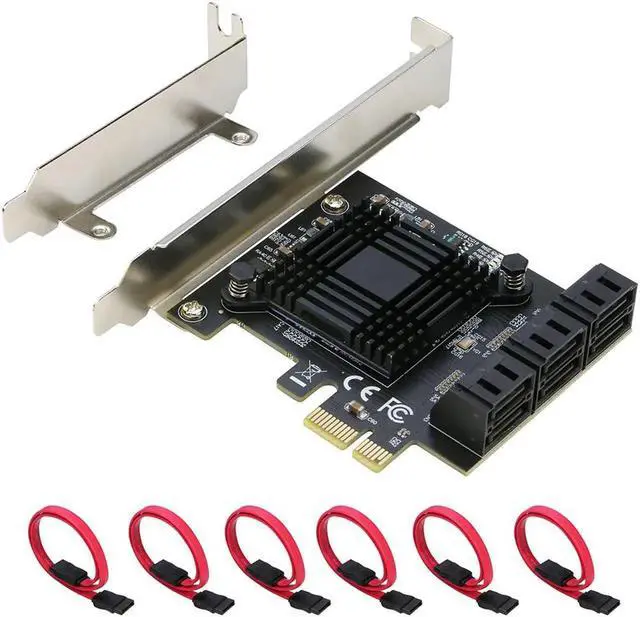

Package Included:

1x PCI-e 1x to 6 Ports SATA 3.0 Expansion Card.

6x SATA3 Cables.

Features:

6 AHCI SATA III (6 Gbps) ports through PCI Express x1.

Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps).

Compliant with PCI Express 3.0 standards.

JMB575 + ASM1062 Chipset

Includes Low Profile/Half-Height installation bracket.

Specifications:

Chipset: JMB575 + ASM1062.

Slot: Suiltable for PCI Express 1x (or above).

Port Number: 6 Port SATA 3.0.

Dimension: 80*22 mm.

Support OS:

For Windows 7, 8.x, 10,

For Windows Server 2008 R2, 2012, 2016,2019,

For Linux 2.6.x to 4.x.

Package Included:

1x PCI-e 1x to 6 Ports SATA 3.0 Expansion Card.

6x SATA3 Cables.
