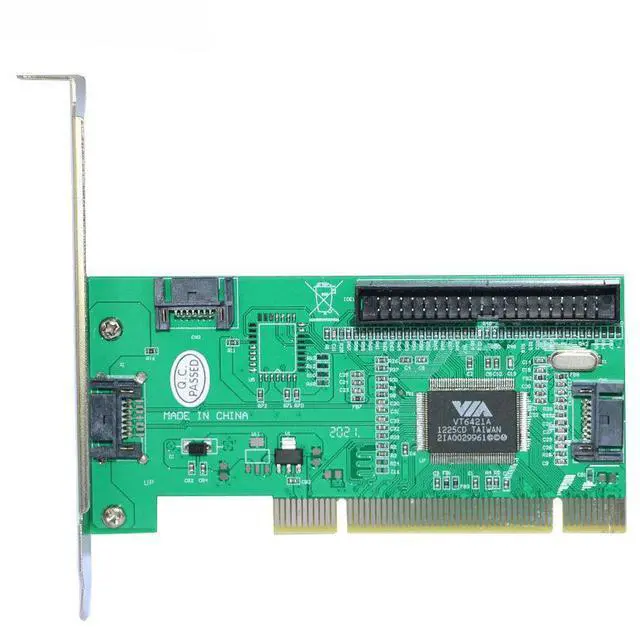

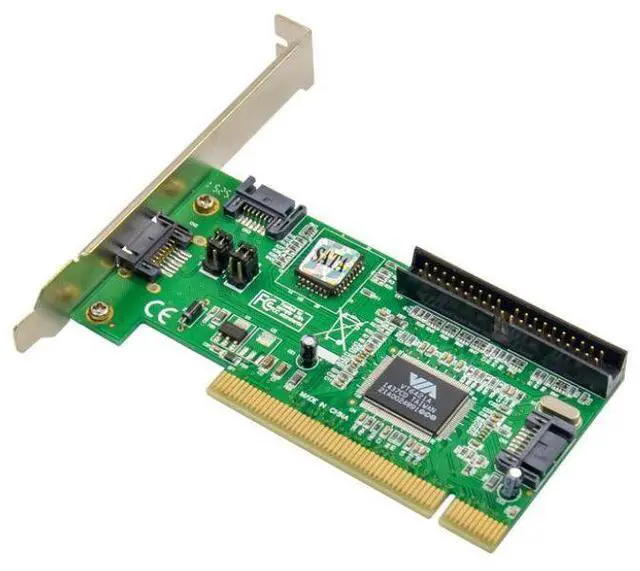

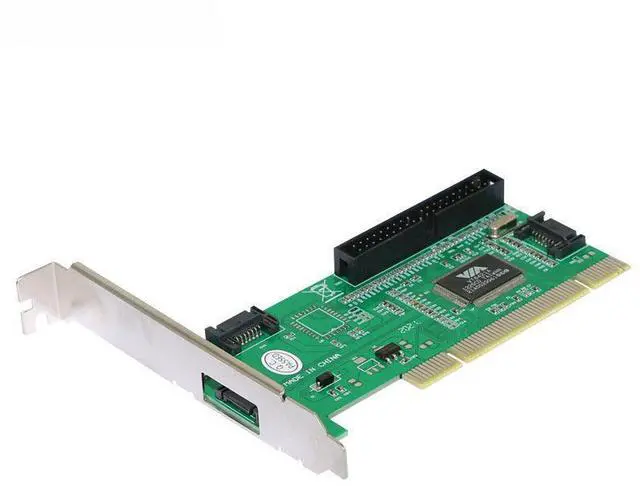

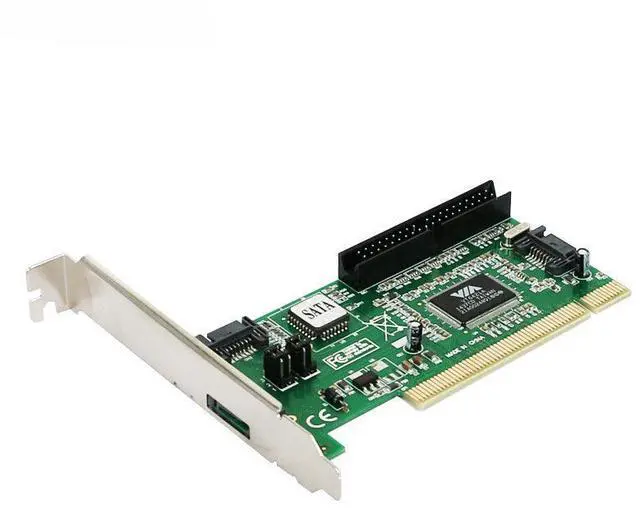

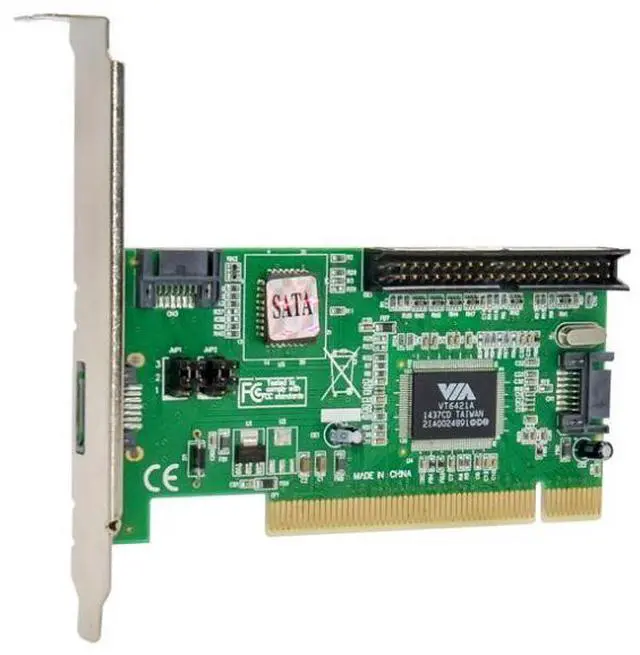

VIA VT6421 PCI Controller Card PCI to 2-Port SATA/eSATA + 1-Port IDE (PATA) HDD Adapter, Hard Drive Expansion Card for Desktop PC, Legacy System Upgrade
Limited time offer, ends 05/05 By ElectroWorks JV
- Xin-B009 is compatible with the Serial ATA 1.0 version, providing high-performance Serial ATA RAID functionality for all desktops, mobile devices and server processor platforms. It supports all ATA and ATAPI devices, including hard drives, CDs, DVDs, high-capacity removable devices and 32-bit PCI and PCMIA interfaces, enabling PC and mobile systems to achieve seamless transmission of the new Serial ATA.
- It supports two Serial ATA channels, allowing simultaneous support for two devices, and another parallel ATA channel supports two devices. It has a PCMCIA interface, and the Cardbus mode supports two Serial ATA devices. Xin-B009 supports dual-channel Serial ATA, which is 12% higher in bandwidth than the ATA-133 between storage devices and CPUs. Each channel's transmission speed can reach up to 150Mbps, playing a crucial role in the improvement of data accuracy transmission and storage performance.
- It supports multiple RAID levels, including RAID0 for performance, RAID1 for security, and JBOD. To ensure backward compatibility, Xin-B009 also integrates a single-channel Parallel ATA-133 controller, eliminating the need for additional adapters.
- Xin-B009 simplifies and enhances the internal cables in the chassis, improving air circulation. It enables OEMs and system builders to design smaller chassis, meeting the market demand for smaller and more integrated PCs. More advanced technology designs smaller connectors, allowing 3.5-inch and 2.5-inch hard drives to save space, making th
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Features: Flexibility
The supported Serial ATA and Ultra ATA/133/100/66 enable system builders to easily incorporate full ATA and ATAP driver support into their product lines.
Outstanding performance
The dual-channel Serial ATA offers a transfer rate of up to 150 MB/s per channel, faster than any previous IDE interface, and supports two SATA devices.
Flexible structure options
Support for multiple levels of RAID allows end users to freely combine their hard drives to achieve performance, maximizing the security of critical data and handling large data volumes. It is also backward compatible with Serial ATA specifications, ensuring network connectivity for installed devices.
Simplicity
The integrated design incorporates the advantages of Serial ATA, including simpler wiring and smaller connectors, providing a wide range of innovations for internal system design, suitable for small chassis, and supporting hot swapping.
RAID Controller
? Supports RAID0, 1 and JBOD
PCI Interface
? Operates at 33 MHz
? Supports PCI 2X mode and native PCI mode
? Compatible with PCI Local Bus Specification Version 2.2
Ultra ATA-133 / IDE Interface
? Single-channel master mode hard drive controller, supporting two enhanced IDE devices
? Redefined IDE bus control program interface, supporting up to 4 bus master devices in a single function
? Supports ATA PIO mode 4, multi-word DMA mode 2 drivers and UltraDMA mode 6
? Ultra DMA-133 interface speed up to 133MB/s
? Compatible with ATA/ATAPI-6
Serial ATA Interface
? Supports Serial ATA interface version 1.0
? Supports internal PHY, each PHY supports two SATA devices
? Dual-channel master mode PCI supports two SATA devices
? Each SATA channel rate up to 150Mbps
Other Features
? Supports external FLASH or EEPROM to achieve BIOS expansion and RAID functions Power supply
? 3.3V working voltage for PCI and IDE
? 2.5V oscillator and serial ATA working voltage Packaging
? 0.22 microns, low-power CMOS technology
? 14x20mm, 128 pin PQFP
