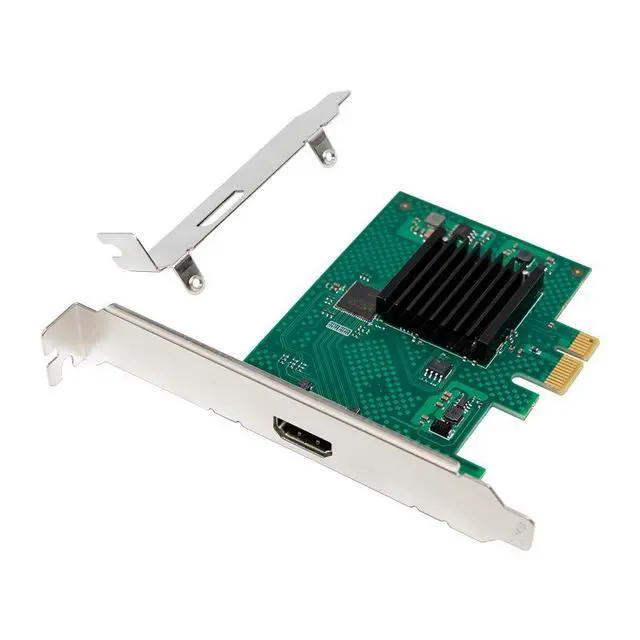

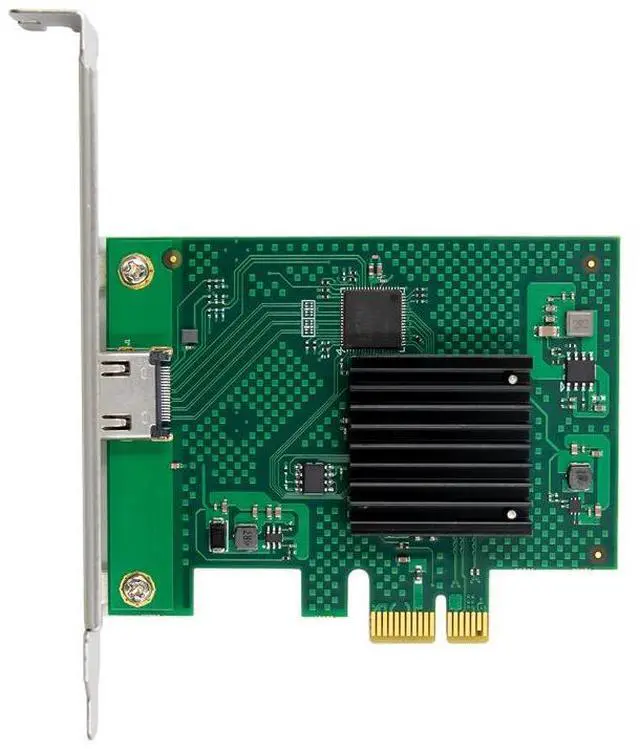

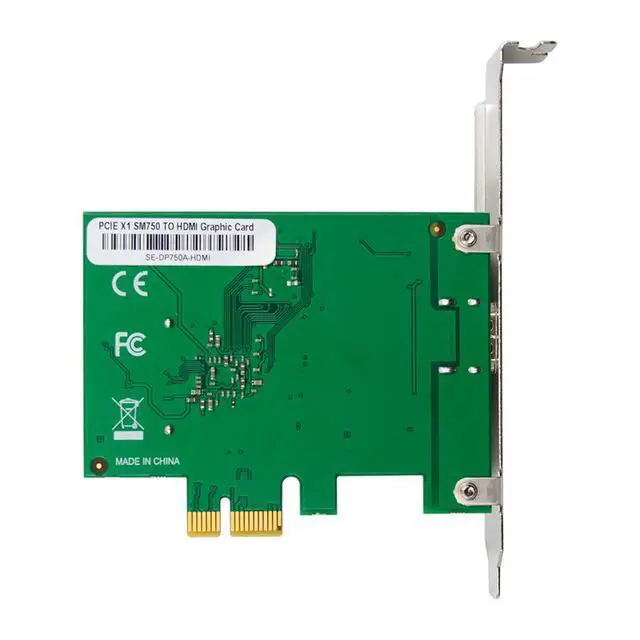

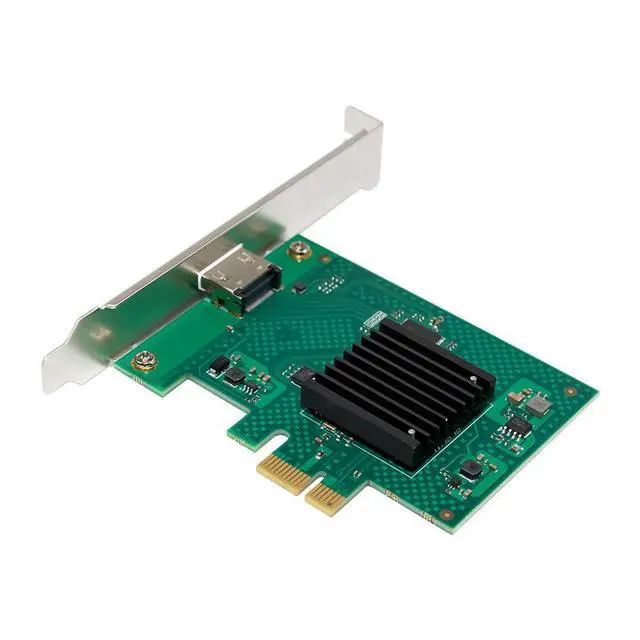

PCIe x1 to Single HDMI Embedded Graphics Card 2D Graphic Accelerator, SM750, for Industrial & Embedded Applications
Limited time offer, ends 05/05 By ElectroWorks JV
- Fast rotation function
- The screen image can be rotated by 90°, 180° and 270°.
- 2D Graphics Accelerator
- - 128-bit 2D graphics engine
- - ROP3, BitBLT, Transparent Blt, Pattern Blt, Color Expansion and Line Drawing
- YUV-16/32-bit to RGB Conversion
- Video display layer
- Supports 7-layer display frames (2 hardware pointers, main graphics, video, video transparency, transparency and secondary graphics) for scaling video ports
- Two 8-bit ports or one 16-bit video capture port support V-16/32-bit RGB conversion in accordance with ITU 601 and ITU 656 specifications.
- System Requirements
- Win CE. Win XP, Win 7, Win 2003 (32-bit/64-bit), Win 2008 (32-bit/64-bit)
- Linux Enterprise (32-bit/64-bit), Ubuntu, CentOS, Debian
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Technical Specifications
Graphics Engine: 2D
Host interface: PCIe x1
Built-in memory: 16MB DDR (optional)
External memory: 64MB DDR (maximum)
Resolution: 1920 x 1440 (Maximum)
Support System: Win CE. Win XP, Win 7, Win 2003 (32-bit/64-bit), Win 2008 (32-bit/64-bit)
Linux Enterprise (32-bit/64-bit), Ubuntu, CentOS, Debian
CPU platform: Intel, AMD, ZFMicro, Freescale PPC, AMCC, STMicro, Marvell, Loongson
And other PCIe
Operating temperature: -40 ~ +85
PCI-Express x 1 architecture: - x86 processor
ARMMIPSPPC ARC
16MB integrated video DDR memory
- Only embedded 16MB DDR
Embedded 16MB DDR (32-bit interface) + External 16MB DDR (32-bit interface)
External connection supports up to 64MB DDR (64-bit interface)
Low power consumption < 1.5W
Support cost-effective multi-display/panel systems
Supports dual 300 MHz DAC, with the highest resolution reaching 1920x1440
- Dual 18-bit DVO interface, supporting TMDS or LVDS converters, with a maximum resolution of 1920x1440
Dual-channel independent resolution and refresh rate display output
Fast rotation function
The screen image can be rotated by 90°, 180° and 270°.
2D Graphics Accelerator
- 128-bit 2D graphics engine
- ROP3, BitBLT, Transparent Blt, Pattern Blt, Color Expansion and Line Drawing
YUV-16/32-bit to RGB Conversion
