PCIe to 2 x eSATA + SATA + IDE RAID Controller Card JMB363, SATA II 3Gbps, for Desktop PC
- PATA
- Supports Ultra ATA 133 hard disk drives, and also supports Ultra ATA 100/66/33 standards below.
- Transmission rate: 133MB/second, ATA13
- Supports hard drives with a capacity of 137 GB or more (48-bit LBA mode)
- The maximum support for 2 IDE devices by one IDE interface.
- SATA II
- Supports 1 external ESATA interface and 1 internal SATA interface, with a transmission rate of up to 3Gb/s.
- Supports SATA 1.0 standard
- 256-byte FIFO port fast read/write operation
- RAID Array
- Supports RAID 0, RAID 1, RAID 0+1 modes, and supports JBOD.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Introduction:

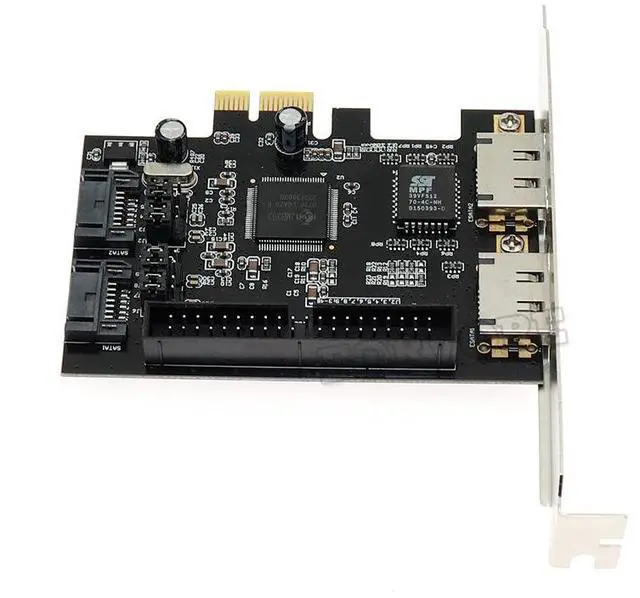

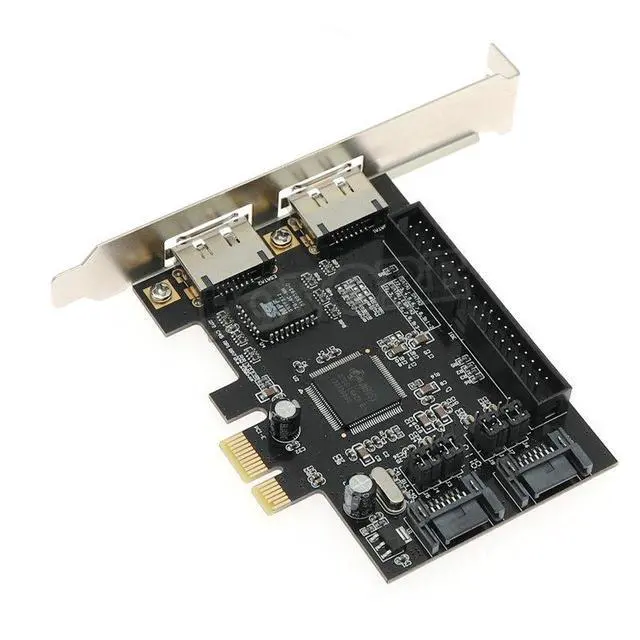

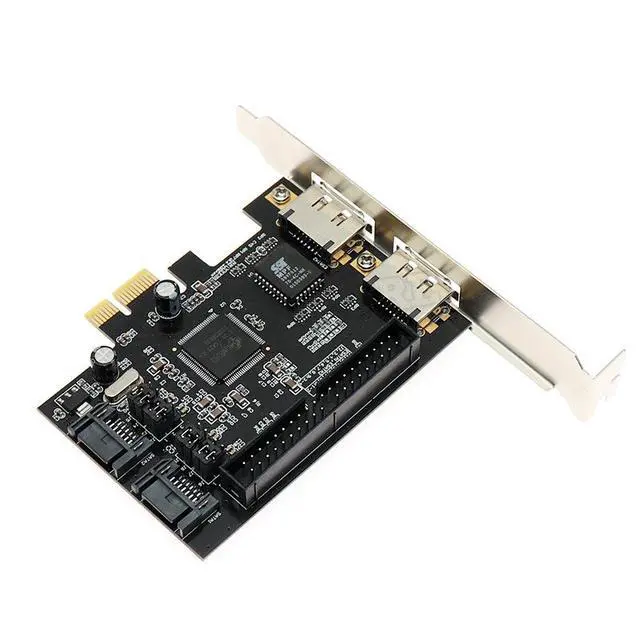

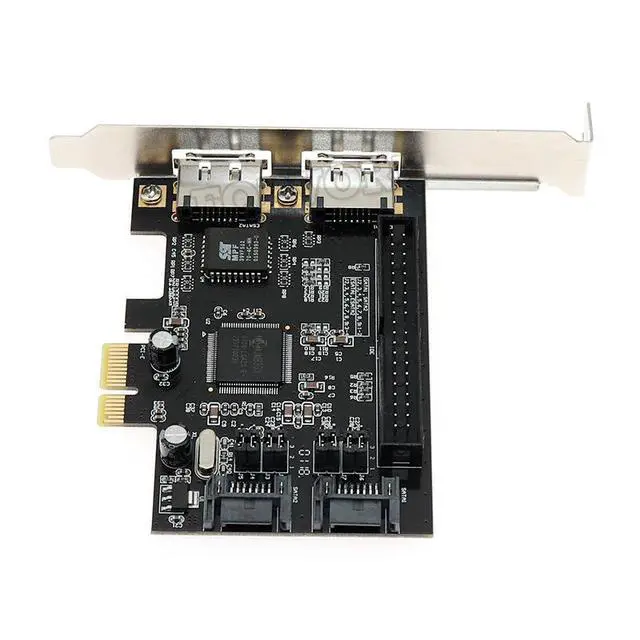

JMB363 - PCIe to SATAII x2 and PATA Disk Array Card
PCI-Express to ATA133, SATA II Disk Array Card
Supports RAID 0, RAID 1, RAID 0+1 modes, and supports JBOD.
Product Specifications:
Interface: 2 internal SATA interfaces, 1 ATA133 interface, 2 external ESATA interfaces (The external ESATA and internal SATA can only be used simultaneously. 2 interfaces can be selected through jumper settings. The default setting is 2 internal SATA interfaces.)
Chip: JMB363
Ordinary:
Compliant with the PCI-Express 1.0a standard
PCI - Express's rate of 2.5/s for full-duplex channels
Support plug-and-play
The driver supports Windows 2000/xp/7/8, Server 2003/xp 64-bit, Vista, Linux, Mac, and Dos.
