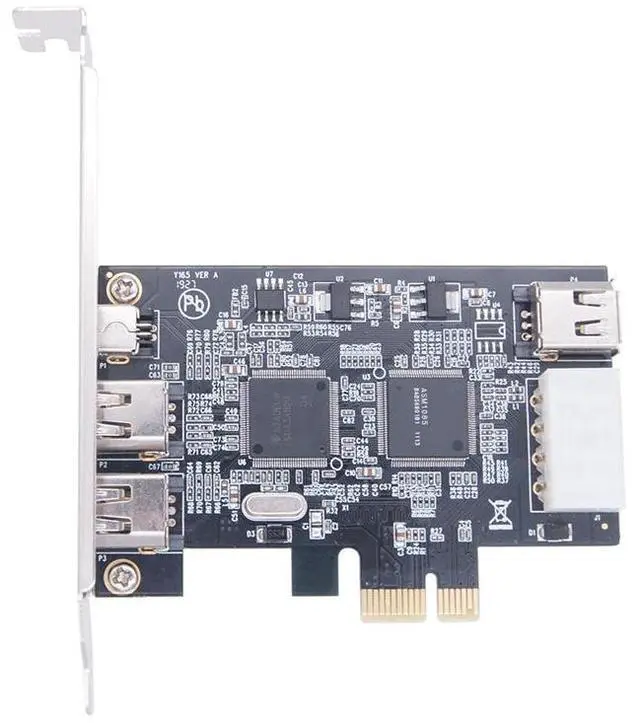

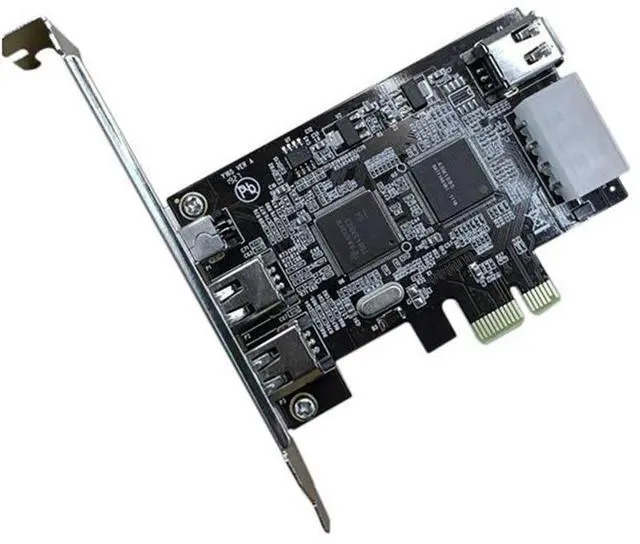

PCIe IEEE 1394 Card FireWire Adapter for DV/HDV Video Capture, PCIe x1 for Desktop PC

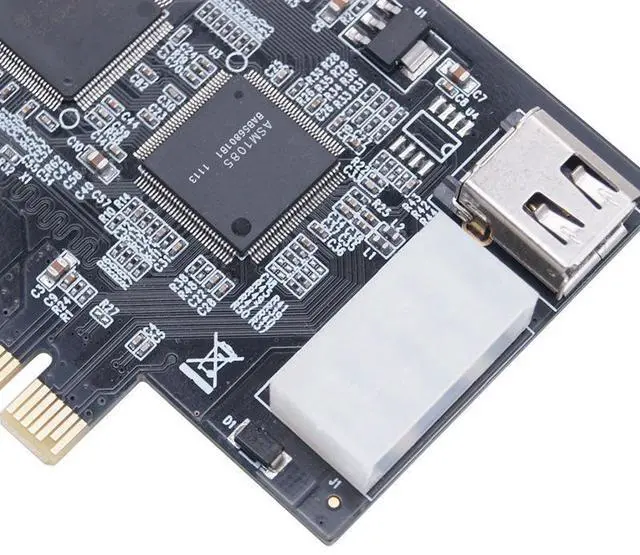

This card is a black Taiwan VIA/ASM1083 dual-chip version. It is fast and stable, supporting DV and HDV, and can handle the highest resolution of 1440*1080 for high-definition cameras.

There are three 1394A 6-pin ports and one 1394A 4-pin port externally.

Note: Does not support PCI interface

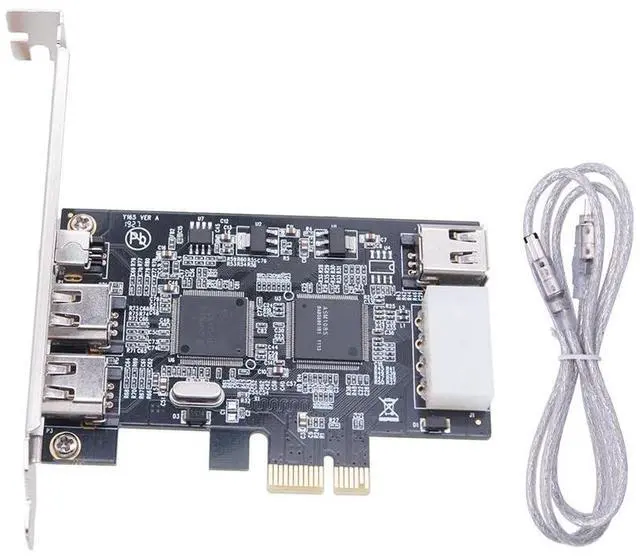

Shipment includes: 1 x 1394 adapter card

Connection line x1

Full-duplex 1-Lane (x1) PCI-Express bus, with a bus bandwidth of up to 2.5Gb/s

Complies with PCI-Express Revision 1.0a

Supports the IEEE P1394b-2002 standard

Complies with 1394 OHCI protocol Revision 1.1 and 1.2 draft

Supports data transmission rates of 800 / 400 / 200 / 100Mbps

Plug-and-play, supports hot swapping

Backward compatible with 1394a standard

Complies with IEEE 1394a-2000 and 1394-1995 standards

Supports bidirectional transmission (FirewireTM, iLINKTM and SB1394TM) IEEE 1394 standard

Supports the 1394b-2002 standard for bidirectional communication (800Mbps data transmission rate)

Supported operating systems: Windows 8 / 7 / Vista / XP / 2000 / ME / 98SE / Server 2003-2008 32/64-bit, Mac and other operating systems
