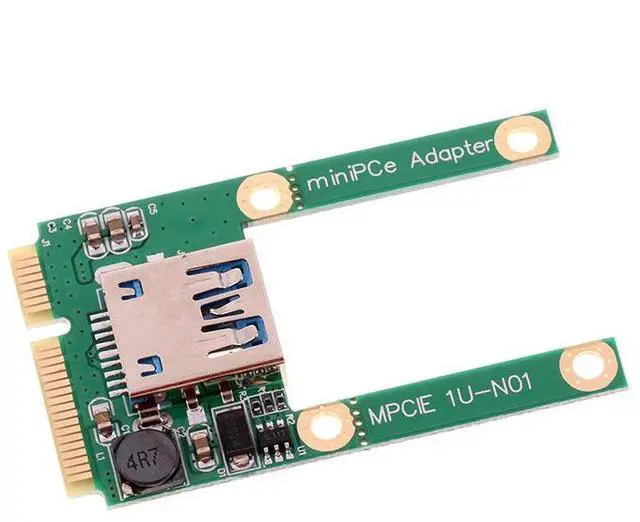

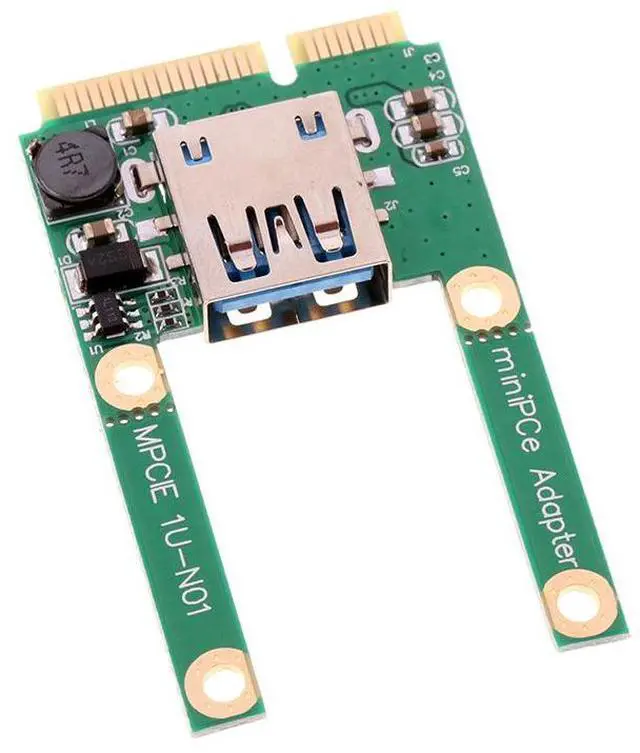

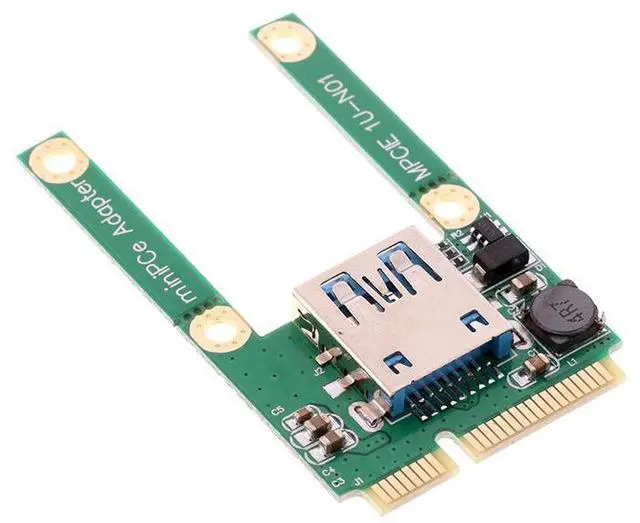

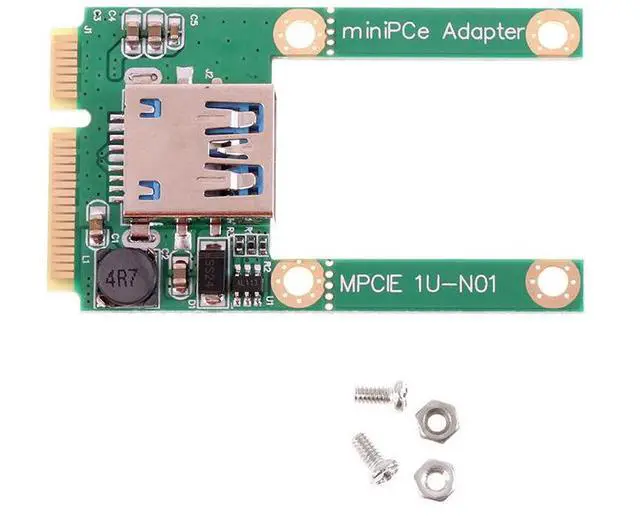

Mini PCIe to USB 2.0 Expansion Card mPCIe USB Adapter for Embedded Systems / Industrial PC

Product Name: Mini PCI-E to USB2.0

Product Length: Full height: 52*30*5.2 mm; Half height: 27*30*5.2 mm

Power Supply Voltage: Output 5V/1A

Product Weight: 0.03kg

Product Interface: MINI PCI-E, USB A female interface

Cable Packaging: Electrostatic bag

Notes:

By default, the products we send out are full height and uncut. If you need a half-height product, please let us know! We will cut it into a half-height product according to your requirements. If you want to do it yourself, please use pliers or nail clippers to cut along the white line. Do not try to pull it apart with your hands, as it is very likely to break at the round hole. Note: If the product is cut by yourself, our company will not offer a refund or exchange. Please be cautious!

Working principle:

The MINI PCI-E standard of the notebook includes USB signals and 3.3V power supply. This product takes the USB signals out to the USB socket and boosts the 3.3V to a voltage of 5V/1A to supply power to the USB devices.

Please take a look at the working principle above. Since the USB signal is output from the computer, some computer screens fail to receive this signal or do not output any signal at all, which will cause this card to be unusable. This is not a problem with the card itself. You can search for tutorials on whitelisting to unlock the USB port. Therefore, this product is suitable for users with a basic understanding of computers. Other users should be cautious before purchasing.
