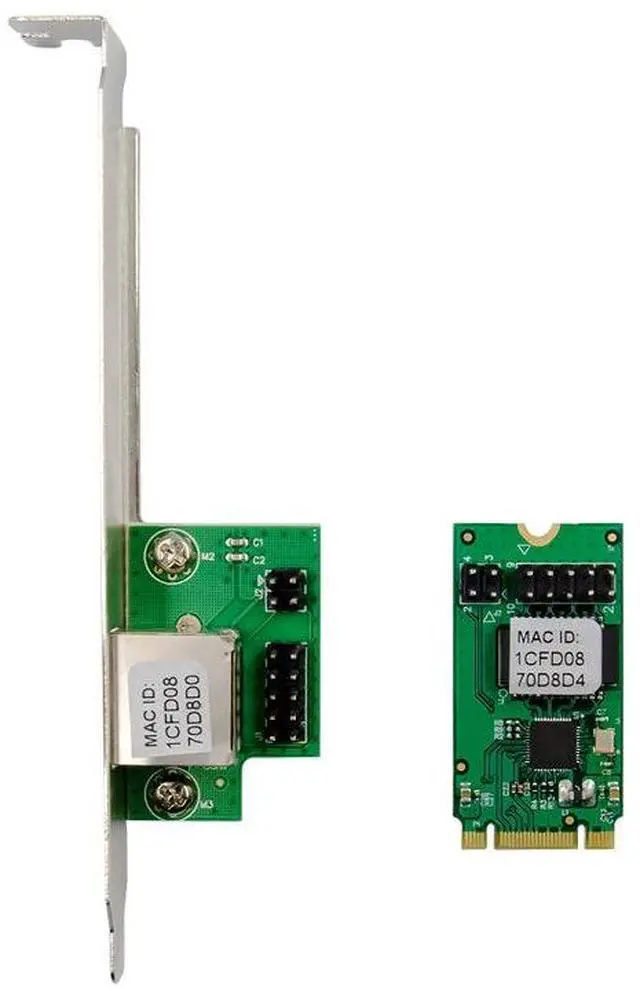

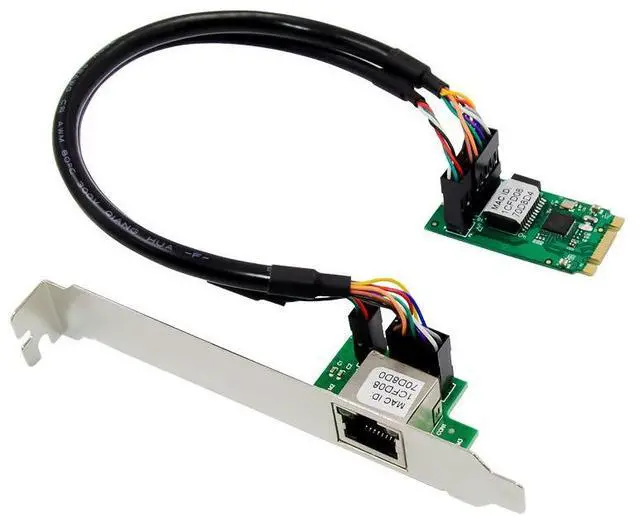

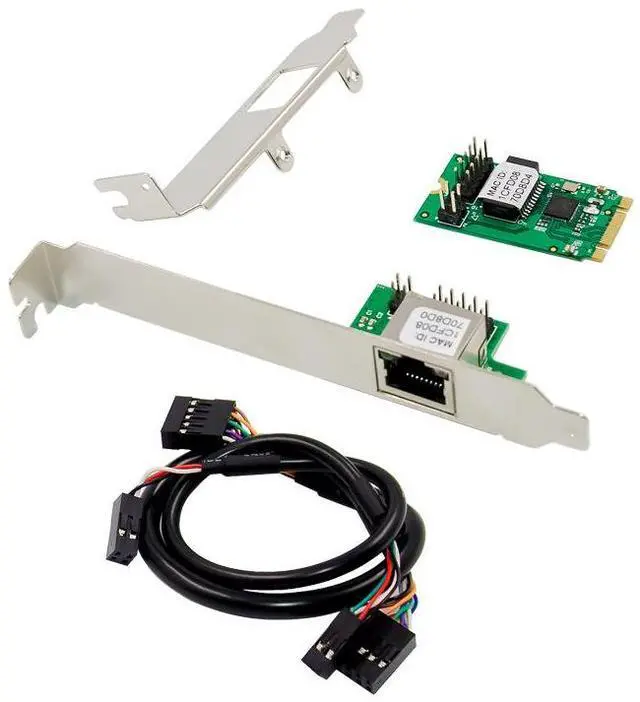

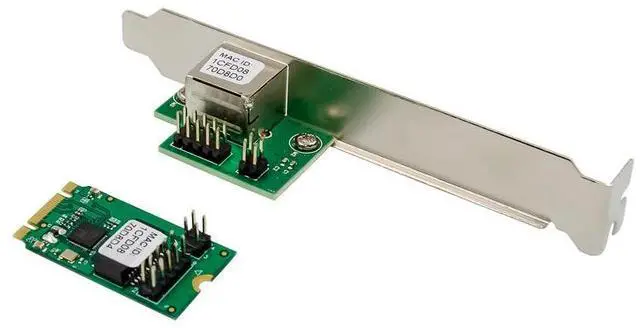

M.2 B+M Key Gigabit Ethernet Card Realtek RTL8111F, Copper RJ45, M.2 Network Adapter
Limited time offer, ends 05/05 By ElectroWorks JV
- The SM-LG8111A-BT is a cost-effective 10/100/1000M adaptive gigabit Ethernet card. It fully complies with the IEEE 802.3 10Base-T Ethernet standard, the IEEE 802.3u 100MBase-TX fast Ethernet standard, and the IEEE 802.3ab 1000MBase-T standard.
- The Gigabit Ethernet standard supports IEEE 802.3x full-duplex flow control.
- The SM-LG8111A-BT adopts the M.2 2260 standard interface (22×60×6.1mm) to ensure sufficient bandwidth. M.2 B+M Key interface
- The transmission rate is 2.5 Gb/s. Users can provide a RJ-45 network interface for the system through a jumper cable, a front or back sub-card.
- In full-duplex mode, its network speed can reach 1000 Mbps. It supports cross-checking and automatic correction, and is backward compatible with 10/100BASE-T.
- Automatic negotiation operation for network data rates of 10/100/1000 Mbps, compatible with existing CAT-5 UTP cables, allowing users to achieve convenient, fast and efficient operation.
- Simple and reliable connection.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Compliant with the M.2 B+M KEY NVMe bus interface specification
High-performance 1000BASE-T Ethernet controller card
- Backward compatibility with 10/100BASE-T networks
- Supports frames up to 9K bytes
- Automatic negotiation of 10/100/1000Mbps data rates
- Compatible with existing CAT-5 UTP cables
- Fully compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab
- Supports half/full duplex mode and 802.3x flow control
- Supports IEEE802.1P Layer2 priority encoding
- Supports IEEE 802.1Q VLAN tagging
- On-chip send/receive buffers support
- Cross detection and automatic correction operations
- Supports power saving during power loss / link disconnection
- Local network wake-up and remote wake-up function support
Network type: M.2 to Gigabit Ethernet conversion
Bus type: M.2 2260 standard interface, 2.5Gb/s
Main chipset: Realtek RTL8111F
Transmission medium: 1 x RJ45 electrical port
Transmission rate: 10/100/1000 Mbps
Operating System Support:
- Windows ME, 98SE, 2000, XP, Vista, Windows 7, Windows 8, Windows 10 (32-bit / 64-bit)
- Windows Server 2003, 2008, 2012, 2016 (32-bit / 64-bit)
- Linux, DOS, macOS X 10.4.X or later
