$119.99
Ships from China.
Meet Your Seller

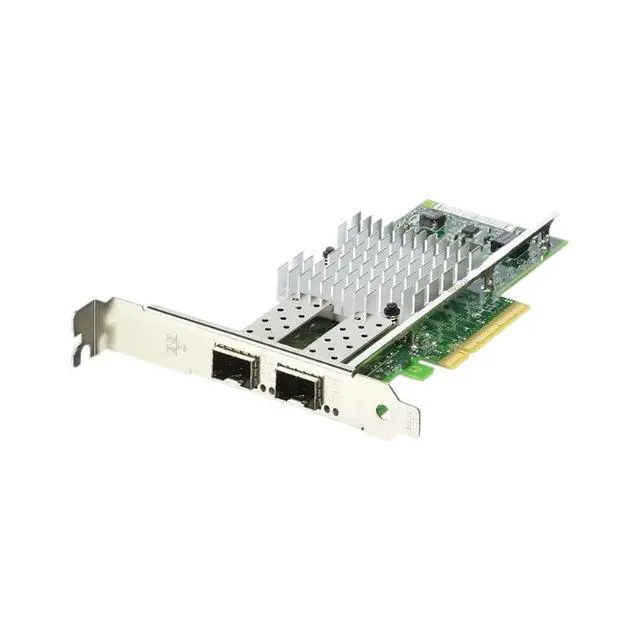

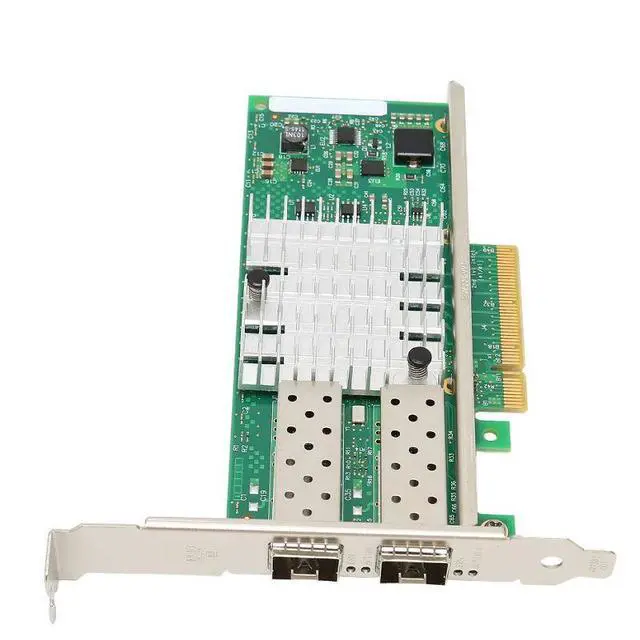

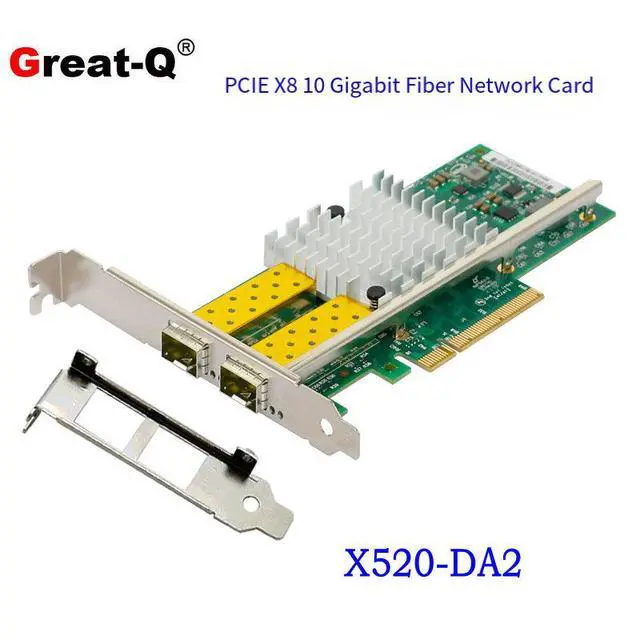

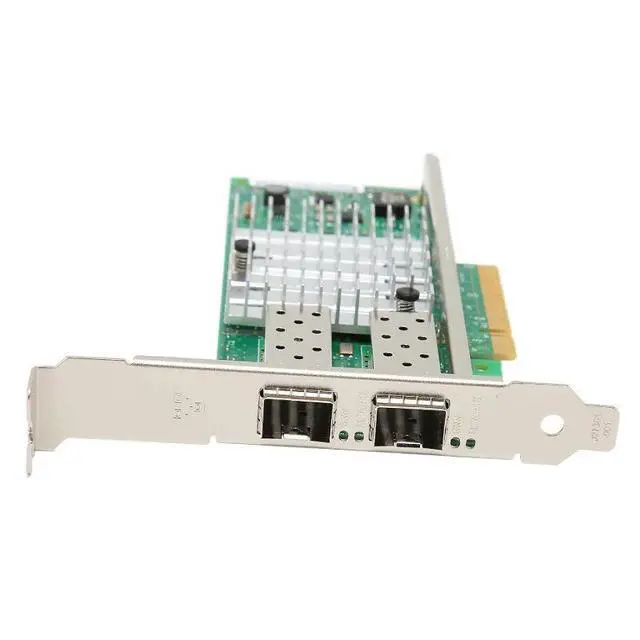

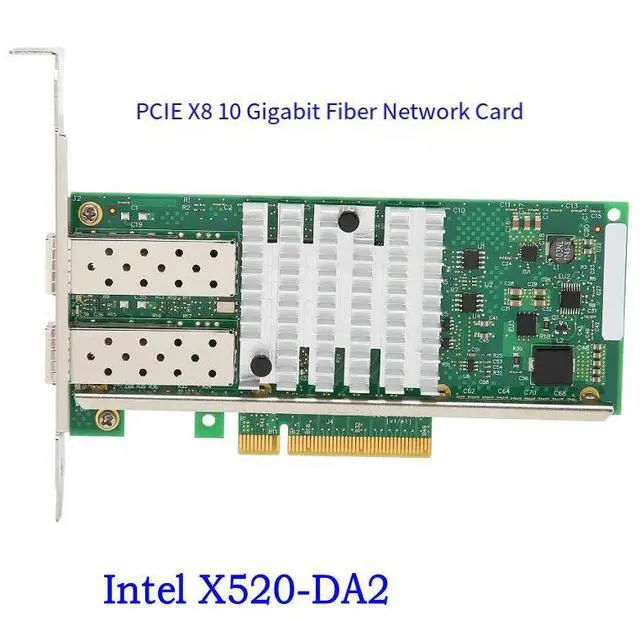

PCIe Dual Port 10GbE SFP+ Fiber Server Network Card X520-DA2, Intel 82599 Chip
- Processor chip: Intel 82599ES * 2
- Bus type: PCI Express 2.0 (5GT/s)
- Bus bandwidth: x8 channel PCI Express, usable in x8 and x16 slots
- Bus speed (x8, encoding rate): Unidirectional transmission 20 Gbps; Bidirectional transmission 40 Gbps
- Network interface type: 2 SFP+ slots
- Supporting rate: 10 GbE per port
- Hardware Certification: FCC B, UL, CE, VCI, BSMI, CTICK, MIC
- Typical power consumption: 10.0 W
- General technical features
- Product Name: Intel Dual-Port Gigabit Fiber Network Card
- Product model: intel82599ES X520
- Product type: Connected internally to (recommended with Intel Xeon 5500 series processors) server
- Processor chip: Intel 82599ES * 2
- Bus type: PCI Express 2.0 (5GT/s)
- Bus bandwidth: 8-channel PCI Express with x8 and x16 slots available for operation.
- Bus speed (x8, encoding rate) One-way transmission: 20 Gbps; Two-way transmission: 40 Gbps
- Network interface type: SFP+ slot *2, 2 LC optical fiber connections
- Supporting rate: 10 GbE per port
- Optional connection: 10GBASE-LR / 10GBASE-SR / SFP+DAC direct connection copper cable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Network Standards
Dimensions
Operating System Support
- IEEE 802.3
- FCC B, UL, CE, VCI, BSMI, CTICK, MIC
- 2 fixed and blinking LEDs per port Speed LED
- Green = 10G / Yellow = 1G
- Full-height bracket + Low-profile bracket
- Minimum 100 LFM
- Maximum: 10.7W / Typical: 10.0W
| ParameterOperatingStorage | ||
| Temperature | 0°C ~ 55°C | -40°C ~ 70°C |
| Humidity | 90% | 90% |
| ComponentMetricImperial | ||
| PCB Length | 14.8 cm | 5.83 in |
| PCB Width | 6.8 cm | 2.68 in |
| Bracket Height | 12.0 cm / 8.0 cm | 4.72 in / 3.15 in |
| Package Size | 20 x 15 x 4.5 cm | 7.87 x 5.91 x 1.77 in |
- Linux
- Microsoft Windows Server 2003
- FreeBSD 6.2 & 7.x
- OS Independent
- Microsoft Windows Vista
- Microsoft Windows 7
- Microsoft Windows Server 2008
- 10GbE Fiber Port Supports 10GBASE-SR
- 850nm SFP+ Interface Hot-pluggable
- LC Duplex Connector
- Host Bus Interface PCI Express x8
- PCIe Base Spec 2.0 (5.0 GHz)
- Low Profile Adapter Supports 2U / 3U chassis
- IEEE 802.x Flow Control
- IEEE 802.1q VLAN Tagging
- IEEE 802.1p Layer 2 Priority Encoding
- Jumbo Frame Support (up to 16KB)
- Link Aggregation & Load Balancing
- RFC2819 RMON MIB Statistics
- TCP Segmentation Offload (up to 256KB)
- IP/TCP Receive Checksum Offload IPv6 Support
- DDP Offload
- Time Synchronization IEEE 1588 / 802.1as
- Link / Activity LED Indicators
| ItemSpecification | |
| LED per Port | 1 LED |
| Link/ACT | Solid when linked, blinking when active (Green) |
| Connector | LC Duplex |
