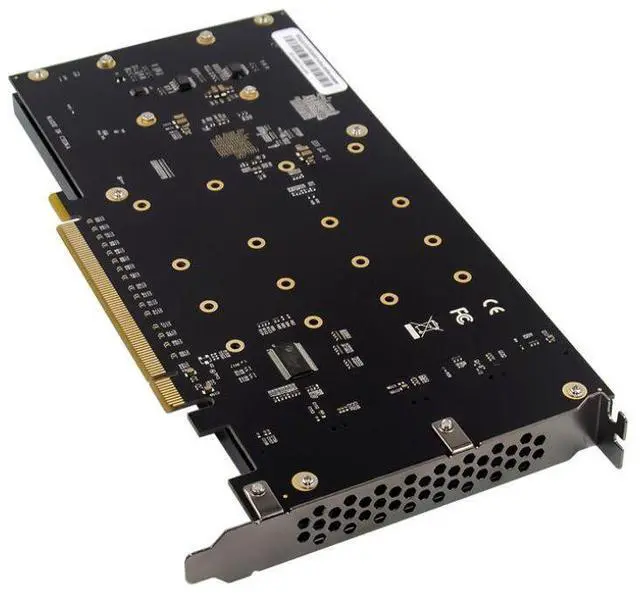

PCIe 3.0 x16 to 4-Port M.2 NVMe SSD Adapter Card Plug & Play, PLX8747, Server-Grade Multi-Function Expansion

The switching function of the SE-M8747A-4MK PCI Express 3.0 x16 M.2 NVMe SSD adapter enables users to achieve scalability.

High-bandwidth and non-blocking interconnections connect multiple hosts to their respective endpoints, thereby enabling communication with components such as servers, storage, communication, and graphics platforms.

Various applications are connected. The enhanced PLX 8747 has been tested in the field and is highly suitable for fan-out, aggregation and peer-to-peer traffic patterns.

The PCI Express 3.0 x16 bus architecture enables users to configure devices in single-host mode or multi-host mode in the old version, with a maximum of four.

Supports 1+1 host port (one active and one backup) or N+1 (N active and one backup) host failover, with strong capabilities.

The architecture, with enhanced functions, enables users to build high availability, failover, redundancy or clustered systems based on PCIe.

Compliant with the revised version v3.0 of the PCI Express specification, backward compatible with PCIe 2.0, PCIe 1.0 and PCIe 1.0a

PCI power management specification revised version 1.2

Each lane supports a transmission rate of 2.5Gb: 250MB/s, 5Gb: 500MB/s and 8Gb: 1GB/s

Bus interface: PCI Express 3.0 X16

Supports NVM Express (NVMe), revised version 0.9 of the M.2 specification

Supports 4-port x16 channel M.2 Key M NVMe SSD devices

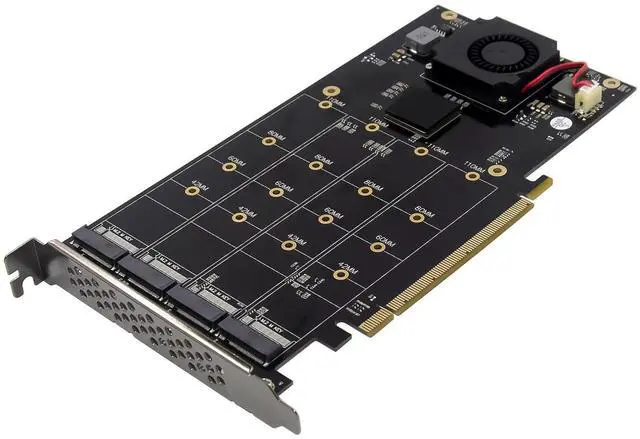

Supports M.2 SSD module sizes: 2230, 2242, 2260, 2280, 22110

Supports M.2 SSD module size "M" key through the PCIe protocol

LED read/write indicator lights

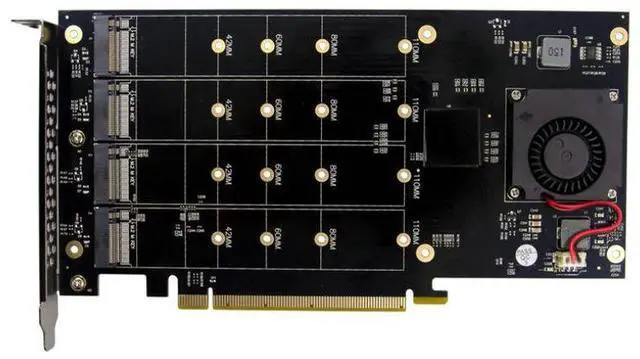

Built-in active cooling fan

Automatically detects channel configuration at startup

All ports support hot plugging

Operating temperature range: 0~85°C

System requirements

Win7 / Win8 / Win8.1 / Win10 32 or 64 bit, Linux-kernel 3.17 or higher version

Packaging:

One available PCI Express x16 slot

1 x PCIe x16 four-port M.2 NVMe SSD adapter PEX8747

1 x User Manual

4 x Screws/sets

1 x Screwdriver

1 x Heat sink
