UWB antenna high-gain image transmission positioning TEM 420 MHz - 10 GHz ultra-wideband antenna
Limited time offer, ends 06/05 By DataHaven Technology
- UWB antenna high-gain image transmission positioning TEM 420 MHz - 10 GHz ultra-wideband antenna

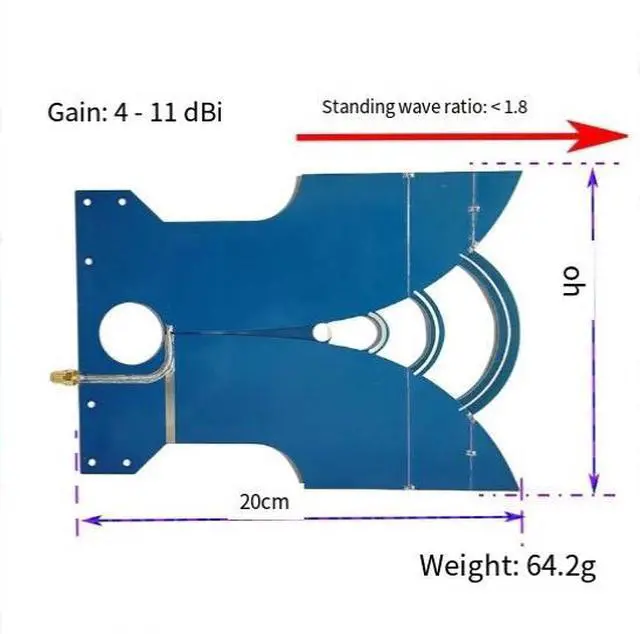

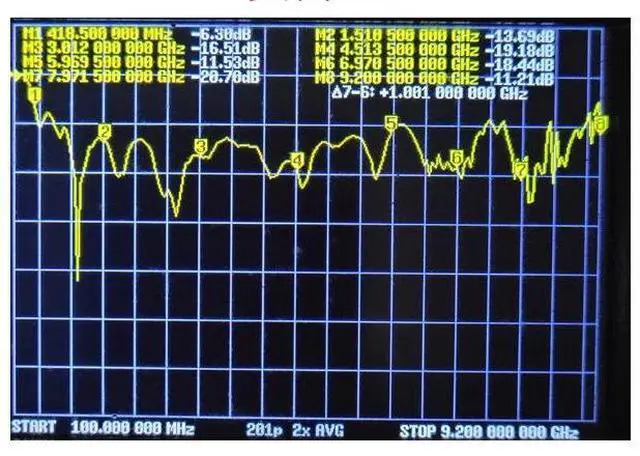

- This antenna is a planar line polarization directional ultra-wideband antenna. Its final operating frequency ranges from 420 MHz to 10 GHz, with a VSWR (voltage standing wave ratio) of 1.8 and a return loss of -12 dB at the operating frequency. This antenna can be used for UHF, aircraft, positioning, video transmission, meteorology, astronomy, etc., for signal reception and transmission.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameters:
Operating frequency: 420 MHz - 10 GHz
Impedance: 50Q

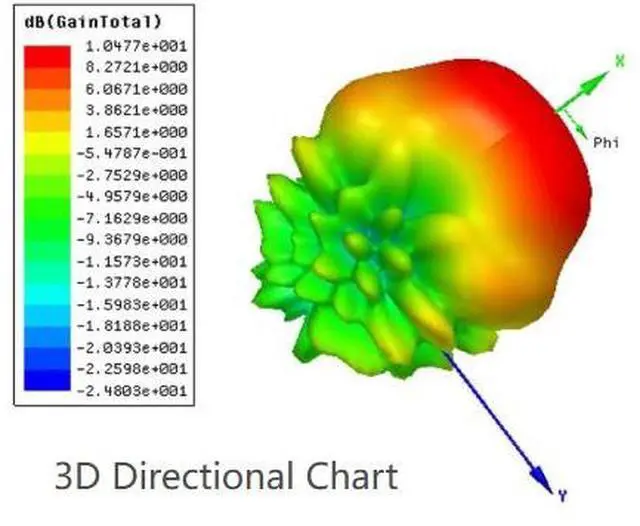

Gain: 4 - 11 dBi

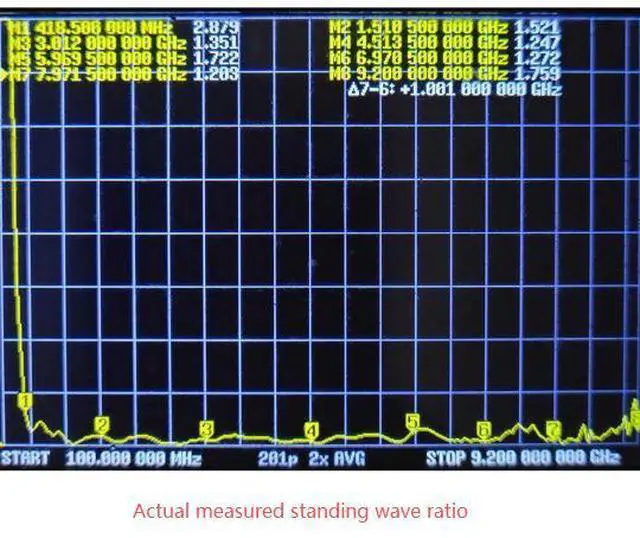

Standing wave ratio: < 1.8 (typical value)
Input maximum power: 50W
Connector type options: SMA female connector (external thread, internal hole)
SMA male connector (internal thread and internal pin) can be selected either one
