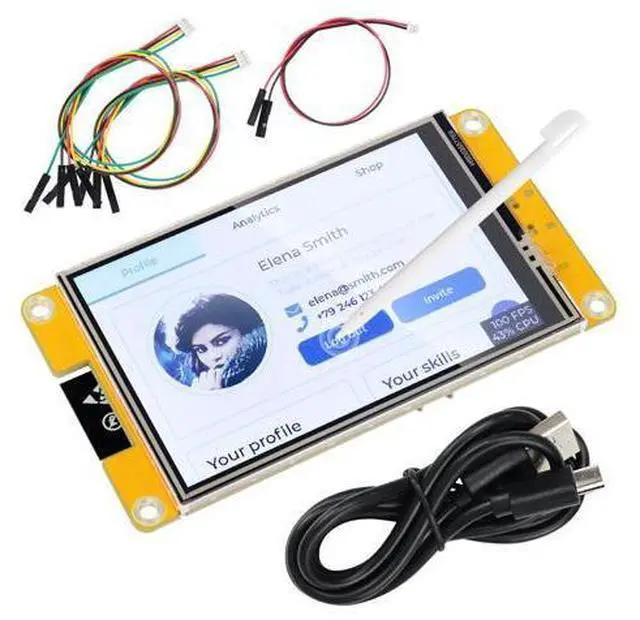

Freenove ESP32 Display CYD, 3.5 Inch Touchscreen Monitor, 320x480 Pixel TN TFT LCD Screen ST7796 Driver, Dual-core 32-bit 240 MHz Microcontroller WiFi+BT, C Code LVGL Example Projects Tutorial
- Important Notes : Resistive touch screens require a certain amount of pressure to recognize touch inputs. Fingers may not be recognized well, please use your nails or the stylus provided. Overview : This is a touchscreen monitor with onboard dual-core 32-bit 240 MHz ESP32 module. Just connect the board to your computer (installed IDE and driver) with the USB cable to program it. We provide free technical support to help you with any questions and problems. Tutorial : Comes with detailed tutorial and code. (Download needed, no paper tutorial. ) Including several typical projects for ESP32 and LVGL GUI library. The download link can be found on the product box. Contents of Tutorial : Preface Chapter 1 Serial Chapter 2 RGB Chapter 3 Button Chapter 4 Button Interrupt Chapter 5 Voltage Chapter 6 Memory Card Chapter 7 Play Music Chapter 8 BLE Chapter 9 WIFI Web Server Chapter 10 TFT Screen Chapter 11 TFT Touch Calibrate Chapter 12 TFT Touch Draw Chapter 13 LVGL Chapter 14 LVGL Picture Chapter 15 LVGL Timer Chapter 16 LVGL RGB Chapter 17 LVGL Music Chapter 18 LVGL Multifunctionality Chapter 19 LVGL Demo What's Next? Package Includes : 1 x Touchscreen monitor 1 x Stylus 1 x USB A to C cable 2 x Connecting cable (4P) 1 x Connecting cable (2P)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

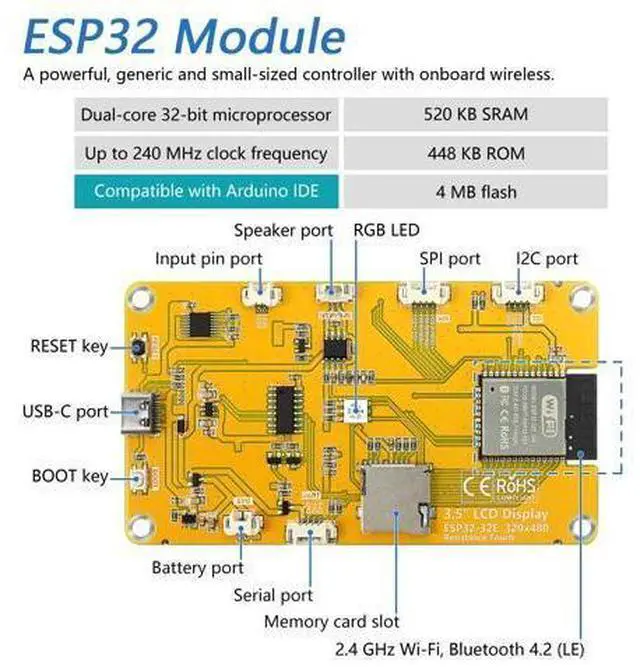

Onboard ESP32 Module: Dual-core 32-bit microprocessor up to 240 MHz, 4 MB flash, 520 KB SRAM, 448 KB ROM, 2.4 GHz Wi-Fi and Bluetooth 4.2 (LE);

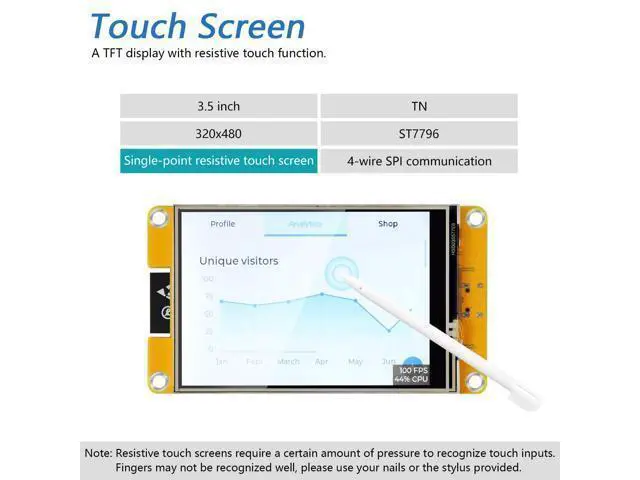

Onboard Screen: 3.5 inch, 320x480 pixel, TN type TFT, ST7796 driver IC, 4-wire SPI communication, single-point
resistive touch screen (Note: Resistive touch screens require a certain amount of pressure to recognize touch inputs. Fingers may not be recognized well, please use your nails or the stylus provided);
Ports and Devices: Memory card slot, USB-C port, serial port, SPI port, I2C port, input pin port, speaker port, battery port, RGB LED, BOOT key, RESET key; Tutorial and

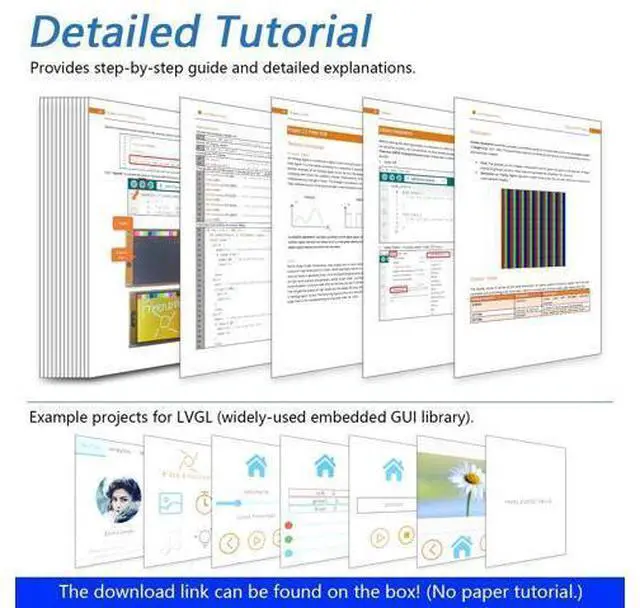

Code: Example projects for ESP32 and LVGL GUI library (The download link can be found on the product box) (No paper tutorial); Easy to
Use: Just connect the board to your computer (installed IDE and driver) with the USB cable to program it
Onboard Screen: 3.5 inch, 320x480 pixel, TN type TFT, ST7796 driver IC, 4-wire SPI communication, single-point
resistive touch screen (Note: Resistive touch screens require a certain amount of pressure to recognize touch inputs. Fingers may not be recognized well, please use your nails or the stylus provided);
Ports and Devices: Memory card slot, USB-C port, serial port, SPI port, I2C port, input pin port, speaker port, battery port, RGB LED, BOOT key, RESET key; Tutorial and
Code: Example projects for ESP32 and LVGL GUI library (The download link can be found on the product box) (No paper tutorial); Easy to
Use: Just connect the board to your computer (installed IDE and driver) with the USB cable to program it
