1080P Low Light WDR Ultra Wide Angle USB Camera Module for Computer, 2MP CMOS IMX291 160 Degree Fisheye Mini UVC USB2.0 Webcam Board with Microphone, 3.3ft Cable for Windows Linux Mac OS

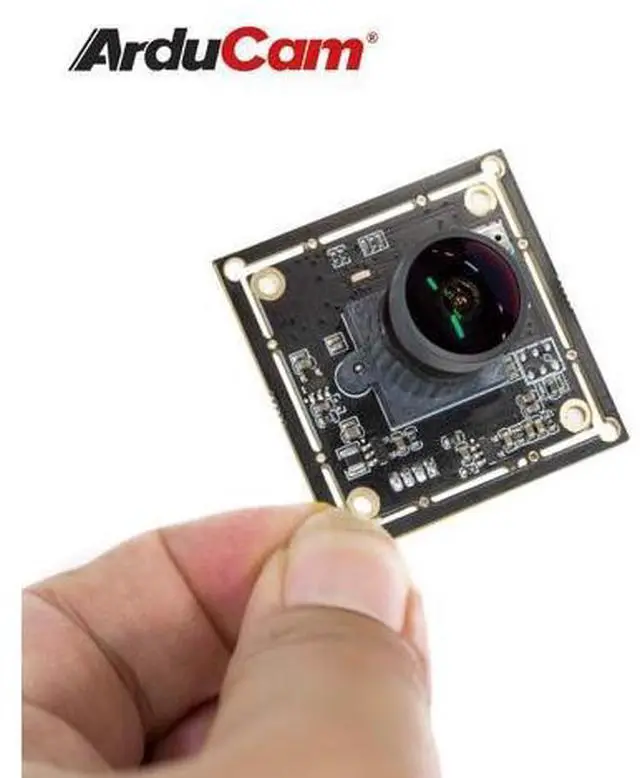

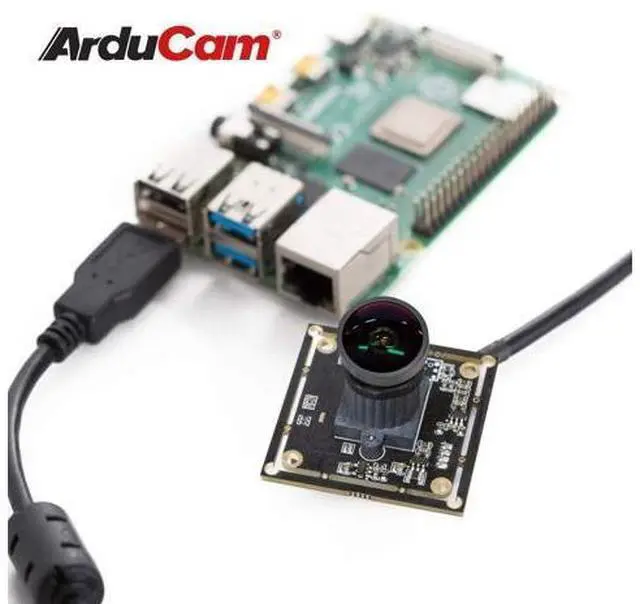

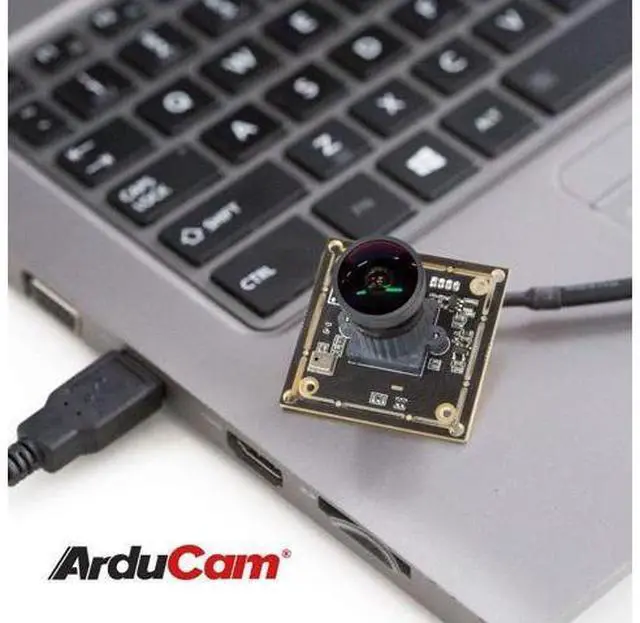

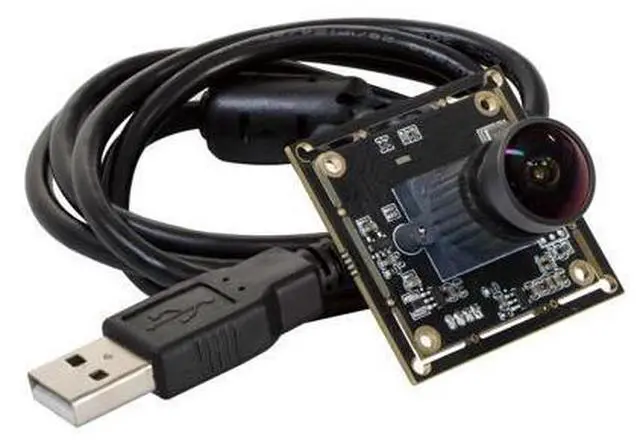

- HD Resolution and Low Light: This camera adopts the 2MP 1/2.8 IMX291 Color COMS sensor with an 80DB wide dynamic range, can capture the minimum illumination 0.001Lux.; Ultra Wide Angle: High quality 160 degree super wide view angle (diagonal) M12 lens with IR filter.; Capture Video with Audio: High frame rates, H.264 30fps@1920x1080; MJPG 30fps@1920x1080; YUY2 30fps@640x 480; Audio, single microphone.; Plug&Play: UVC-compliant, support Windows XP/7/8/10, Linux, Android, and Mac OS, just connect the camera to PC, laptop or Raspberry Pi with the USB cable without extra drivers to be installed.; Applications: this tiny camera board can be installed in the most hidden and narrow position for a home video surveillance system, day&night low light vision security camera system, dashcam or other machine vision application.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
APPLICATIONS: Video conference Home video surveillance system Day&night low light vision security camera system Dash cam Monitoring 3D printer Robot and machine vision... Arducam 2MP Low Light USB 2.0 Camera 160 degree (diagonal) Based on 1/ 2.8 2MP IMX291 image sensor, ultra wide angle, UVC compliant USB 2.0 cameras. No extra drivers needed, the native UVC drivers of Windows, Linux and Mac shall be compatible with this camera. Superior low light feature, shot sharp images even at night. Built with a single microphone, capture video with audio. NOTE This camera supports MJPG YUV and h264 encoder format. It will expose two video nodes. You can run commands shown as below to check each node: v4l2-ctl -d 0 list-formats-ext v4l2-ctl -d 1 list-formats-ext SPECIFICATIONS
Camera - Sensor: 1/ 2.8 IMX291 -
Resolution: 2MP 1945H x 1109V -
Data Format: MJPG/YUY2/H.
264 - Frame Rate:
MJPG: 30fps@1920×1080/1280×720/800×600/640×480/320×240
YUV: 5fps@1920×1080; 10fps@1280×720/800×600; 30fps@640×480/320×240 H. 264: 30 fps@1920×1080/1280×720@30fps/800×600/640×480/320×240 -
Dynamic Range: 80DB -
Minimum Illumination: 0.001L ux Lens - Field of
View (FOV): D= 160° -
Lens Mount: M12 -
Focusing Range: 6.56 ft (2M) to infinity -
IR Sensitivity: Integral IR filter, visible light only Functionality and Compatibility -
Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- Audio: single microphone -
System Compatibility: Windows, Linux, Android, and Mac with UVC Power -
Camera - Sensor: 1/ 2.8 IMX291 -
Resolution: 2MP 1945H x 1109V -
Data Format: MJPG/YUY2/H.
264 - Frame Rate:
MJPG: 30fps@1920×1080/1280×720/800×600/640×480/320×240
YUV: 5fps@1920×1080; 10fps@1280×720/800×600; 30fps@640×480/320×240 H. 264: 30 fps@1920×1080/1280×720@30fps/800×600/640×480/320×240 -
Dynamic Range: 80DB -
Minimum Illumination: 0.001L ux Lens - Field of
View (FOV): D= 160° -
Lens Mount: M12 -
Focusing Range: 6.56 ft (2M) to infinity -
IR Sensitivity: Integral IR filter, visible light only Functionality and Compatibility -
Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- Audio: single microphone -
System Compatibility: Windows, Linux, Android, and Mac with UVC Power -
