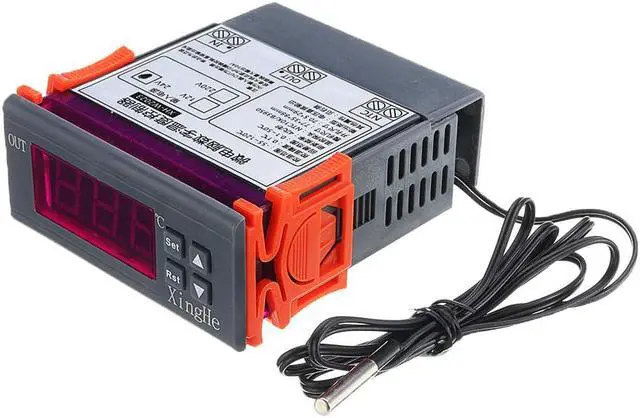

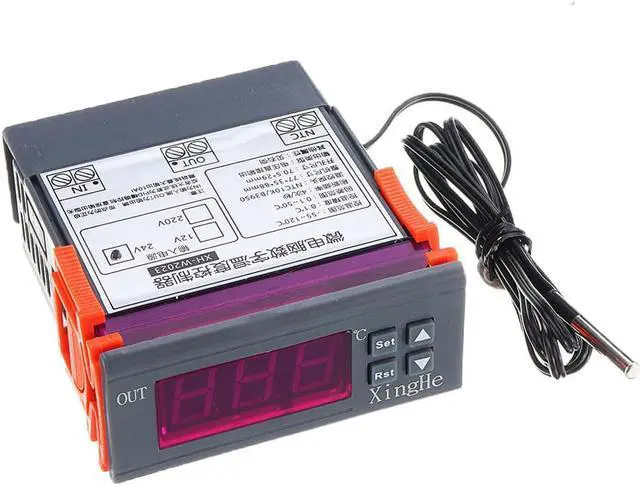

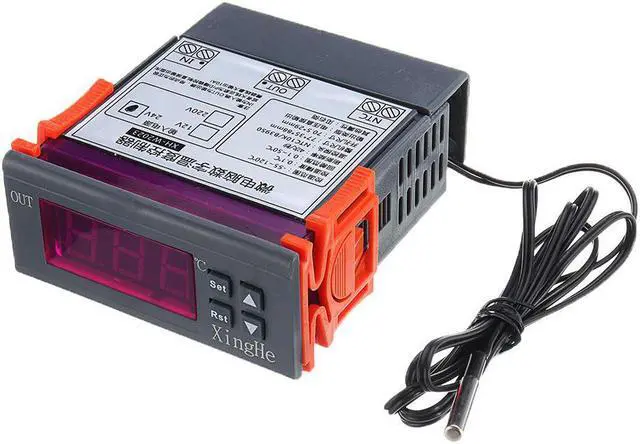

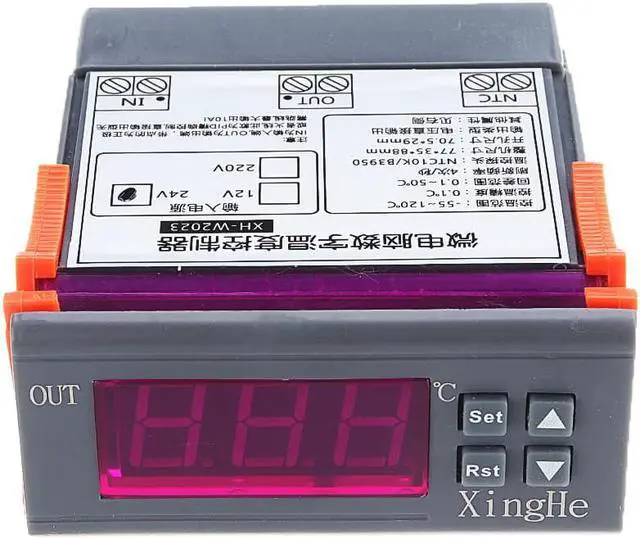

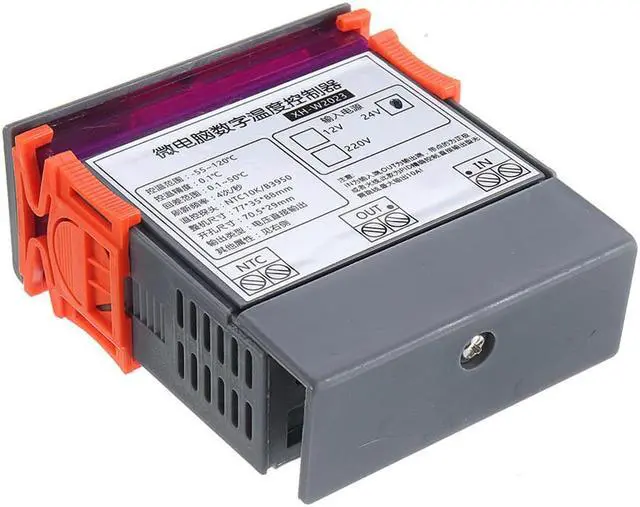

XH-W2023 PID Temperature Controller Solid State Output 0.1 Precision Temperature Control Switch Automatic Thermostat Controller

Feature:

Product Name: Intelligent PID Temperature Controller

Product model: XH-W2023

Supply voltage: DC12V/24V/220V (Optional)

Output voltage: equal to the supply voltage

Output current: up to 10A

Maximum power: 120W/240W/2200W

Temperature control range: 0-110 °C

Control accuracy: 0.1 °C

Refresh rate: 4 times / sec

Video size: 0.26 inch red three digital tube

Use environment: 0~50°C <=85%RH

Appearance size: 75 x 35 x 85mm

Product net weight: 90g

Code

Code description

Set range

Factory setting

P0

Auto-tuning switch

ON/OFF

OFF

P1

PID response speed

1-3

1

P2

Proportional gain

0.1-9.99

0.2

P3

Integration time

1-999

200

P4

Differential time

1-999

20

P5

Working period

2-60S

5

P6

Temperature alarm

-50~120°C

OFF

Steps for usage:

1. Connect the 12V/24V/220V power supply to the input terminal and connect the load with the voltage equal to the input terminal at the output.

2. After power-on, the screen displays the real-time temperature. Press the Set button to start the flashing of the constant temperature value. Press the up and down keys to adjust the constant temperature value you want. After the setting is completed, press the Enter key.

3. Press and hold the Rst button to turn off the power. The power-off switch state machine and the device are automatically saved.

4. Press and hold Set for 5 seconds to enter the internal function settings (P0~P6), press and hold the up and down keys, and then turn on the machine to restore the factory settings.

5. Fault code: Sensor failure---, temperature alarm, screen temperature will flash.
