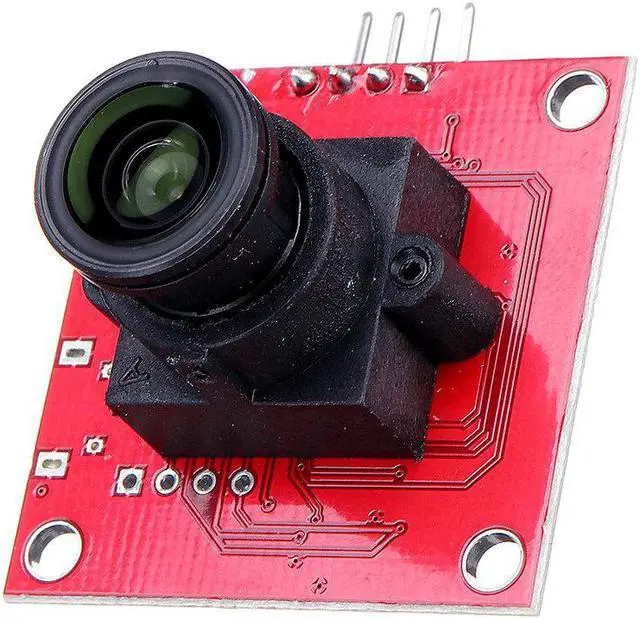

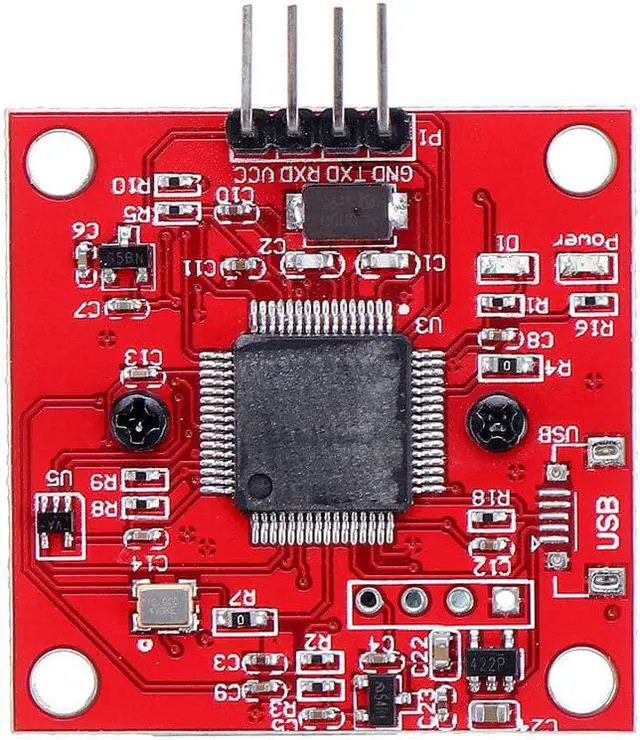

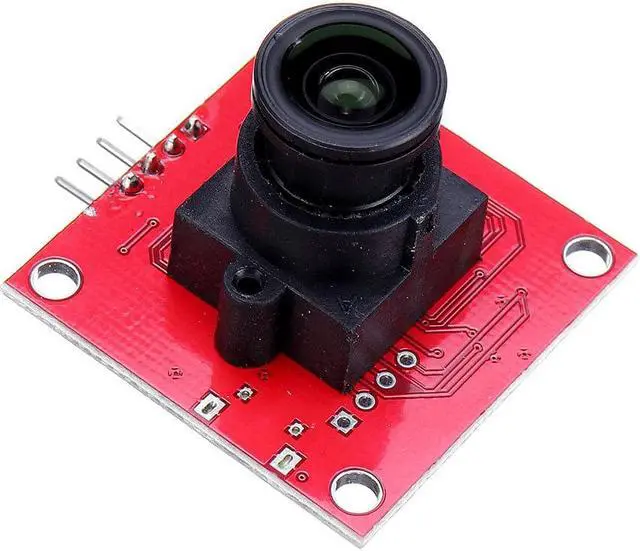

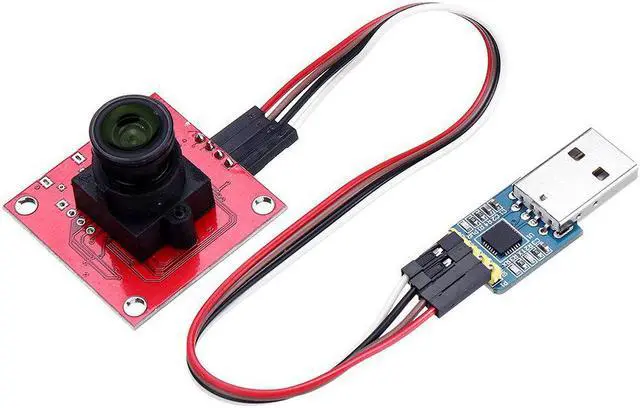

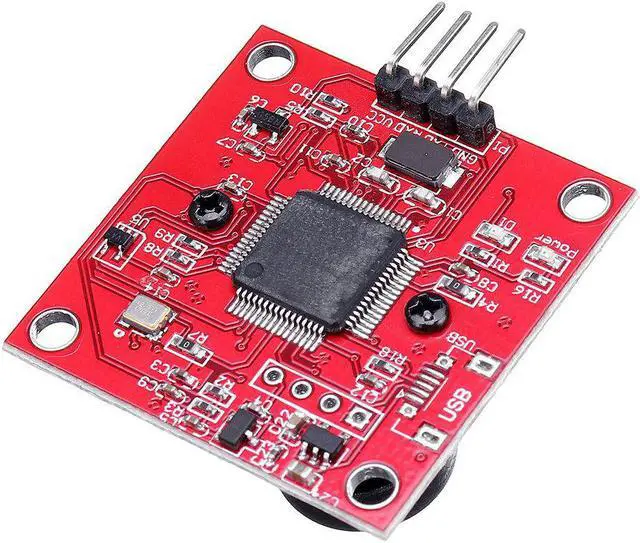

OV2640 Camera Module Serial Port JPEG Output with Converter Board ARM MCU Board

>>>Manual: Click here to open<<<

Features:

(1) Camera module supporting various single chip computers and function boards;

(2) The serial port reading is simple and convenient, easy to use;

(3) It can be directly connected with single chip microcomputer, Ardunio, Raspberry Pi, ARM, etc .;

(4) JPEG compressed image format output;

Application:

(1) Color photography

(2) Simple image recognition

(3) Car tracking

(4) Automatic tracking

(5) Automatic control

Description:

QYF-JPGSC01 is a color serial camera, QYF-JPGSC02 is a black and white serial camera. The QYF-JPGSC01 / 02 serial camera can directly read the captured image through the serial port. It can obtain image compression data by simply sending serial port commands. The image output format is a compressed JPEG file format. The module is currently capable of obtaining color (black and white) images with resolutions of 800 * 600, 640x480, 320x240, and 160x120. Continuous command output can obtain continuous image output. When the resolution is set to the lowest, the continuous output can reach a speed of about 5 frames.

Camera Parameters:

(1) Camera Parameters:

Chip name: OV2640

Photosensitive array: 1632x1232 maximum format UXGA

IO voltage: 1.7V-3.3V analog voltage 2.5-3.0v (internal LDO powers the core 1.2V)

Power consumption: TBD sleep <20A

Temperature operation: -30 to 70

Stable work: 0 to 50

Output format (8 bits): YUV / YCbCr4: 2: 2 RGB565 / 555/444 GRB4: 2: 2 Raw RGB Data

Optical size: 1/4 "

Angle of view: 25 °

Maximum chastity rate: 15fps SXGA

Sensitivity: 1.3V / (Lux-sec)

Signal to noise ratio: 40 dB

Dynamic range: 50 dB

Browse mode: line by line
